Wrap-Around Labelers – Labeling Machines

The CVC 300 Wrap Labeler is built to automatically apply pressure sensitive labels onto round containers. It is an ideal machine for contract packagers and manufacturers serving the nutraceutical, food, cosmetic, personal care, and household product markets.

All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

CVC 300 Brochure

Technical Specifications

Technical Specifications

Speed Rates in Excess of 100 BPM (Format Dependent)
Power 110V, 50/60 Hz, Single Phase, 3.2 Amp (220V optional)
Air Pressure Minimum 87 psi
Air Consumption 50 NLit/m (for optional reject and Lot/Date printer)
Label Width / Height 5/8″ to 8-5/8″ (15mm – 220mm) dependent on label head type
Label Length 5/8″ to 10″ (15mm – 254mm)
Label Roll Max 13-3/4″ (350mm) outside diameter with 3″ (76mm) core
Bottle Height 2″ to 12-5/8″ (50mm – 320mm)
Bottle Diameter 1″ to 4″ (25mm – 102mm) dependent on conveyor width
Conveyor Width Standard 4″ (also available in 6″)
Conveyor Length Standard 79″ (also available in 94″ sanitary)
Conveyor Bed Height Standard 36″ (+/- 2″)
Machine Weight 174 kg (383 LBS)

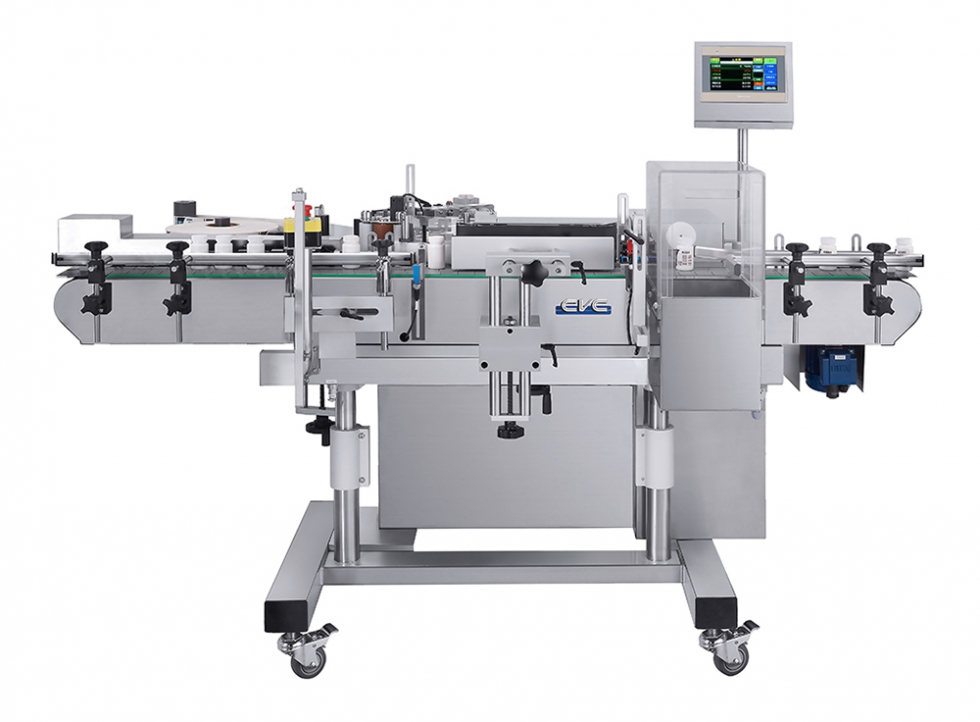

The CVC 300.U2 Wrap-Around Labeler is built to automatically apply pressure sensitive labels onto round containers at up to 200 bottles per minute. The CVC 300.U2 is servo motor controlled, comes standard with a touch screen HMI, and can be ordered with various inspection options including bar code verification, vision, and missing label detection. The CVC 300.U2 labeling system is an ideal machine for contract packagers and manufacturers serving the pharmaceutical, nutraceutical, and food markets.

The CVC 300.U2 labelers include our SelfSet™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button. It can run stand alone or integrated into a full packaging line.

CVC 300.U2 Brochure

Technical Specifications

Type U2
Productivity Up to 200 BPM (subject to trial confirmation) Labeling Speed: 50 M/min
Applicable Size Label:
Length: 15-254 mm (5/8” to 10″)
Width: (depend on label head type)
A: 15- 80 mm (5/8” to 3″)
B: 15-120 mm (5/8” to 4 3/4″)
C: 15-150 mm (5/8” to 6″)
D: 15-180 mm (5/8” to 7″)
E: 15-220 mm (5/8” to 8 3/4″)
F: 15-265 mm (5/8” to 11 1/2″)

Bottle:
Dia.: Ø30-210 mm (1 3/16″ to 8 1/4”)
(depend on conveyor width)
Height: 50-320 mm (2” to 12 5/8”)

Power source 110/220 V, 50/60 HZ, 1 PH
Power Consumption 902 VA (110V: 8.2 A, 220V: 4.1 A)
Air Pressure 6 bar (87 psi)
Air Consumption 50 NL/min (1.8 CFM)(for optional Lot/Date printer)
Machine Dimensions ( L x W x H ) 2,000 x 1,070 x 1,425 mm (Including conveyor)(6’-6.7” x 3’-6.1“ x 4’-8.1”)
Machine Weight 200 kg (440 lbs)
Noise Level ≦ 75 dB

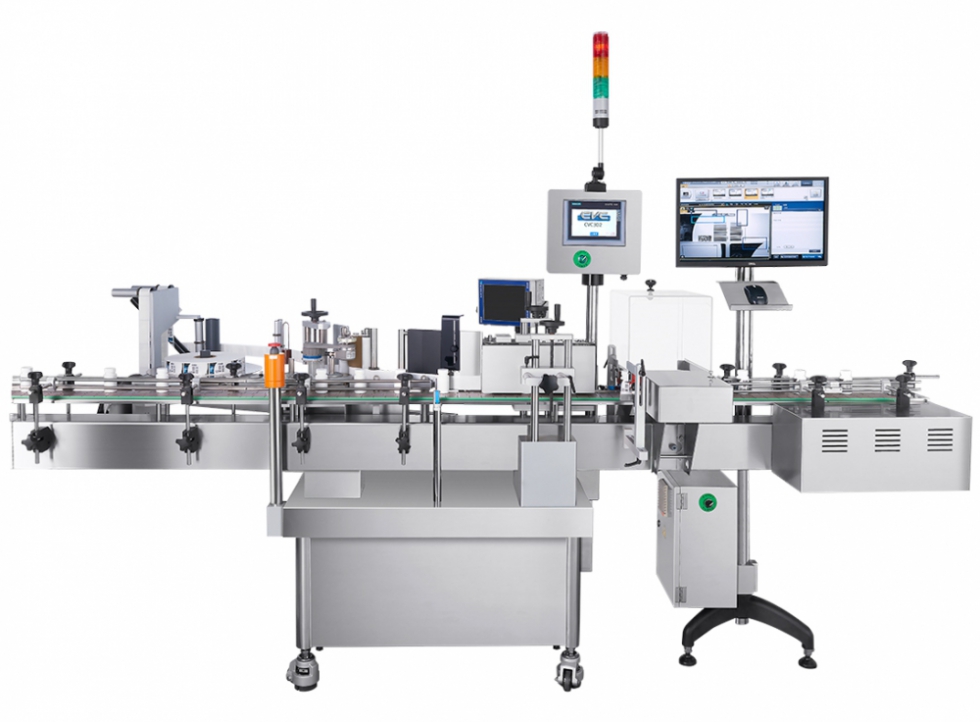

The 302 Hawk™ Labeler is uniquely designed for pharmaceutical as well as other companies that value quality control in packaging.

CVC 302 Brochure

Technical Specifications

Type U4
Productivity Up to 150 BPM (subject to trial confirmation)
Up to 250 BPM (Tiny Bottle and Feed Screw)
Labeling Speed: 75 M/min (246 ft/min)
Applicable Size Label:
Length: 15-254 mm (1⁄2″ to 10″)
Width: (depend on label head type)
A: 15-80 mm (1⁄2″ to 3″) (only CVC 302)
B: 15-120 mm (1⁄2″ to 4 3⁄4″)
C: 15-150 mm (1⁄2″ to 6″)
D: 15-180 mm (1⁄2″ to 7″)
E: 15-220 mm (1⁄2″ to 8 3⁄4″)
Bottle:
Dia.: Ø30-110 mm (1 1⁄4″ to 4 1⁄4″)(depend on conveyor width)
Height: 50-320 mm (2” to 12 1⁄2″)
Power source 220 V, 50/60 HZ, 1 PH
Power Consumption 880 VA (4 A)
Air Pressure 6 bar (87 psi)
Air Consumption 78.5 NL/min (2.8 CFM)
(for optional reject and Lot/Date printer)
Machine Dimensions ( L x W x H ) 3,080 x 1,295 x 1,580 mm (10’-1” x 4’-3“ x 5’-2“)
Machine Weight 370 kg (816 lbs)
Noise Level ≤ 75 dB

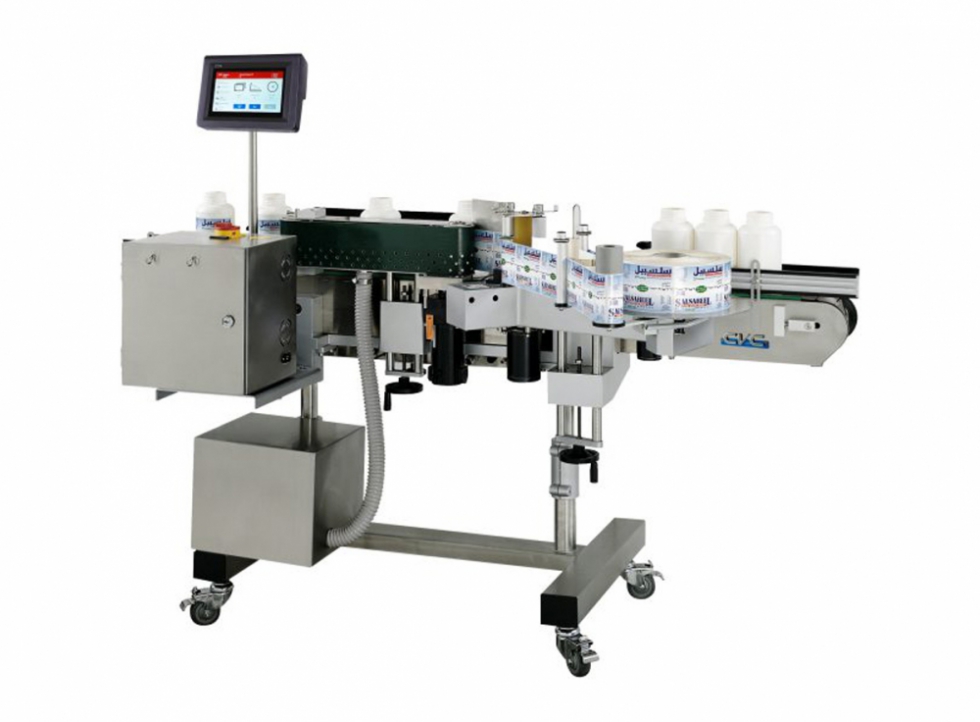

The CVC 310 Gallon Wrap Labeler is built to automatically apply pressure sensitive labels onto arge diameter round containers. The 310’s extended wrap station includes a vacuum system for applying labels up to 17.5″ in length and can be ordered with a 10″ wide conveyor. The 310 is an ideal machine for contract packagers and manufacturers serving the nutraceutical, food, chemical, personal care, and household product markets.

CVC 310 Brochure

Technical Specifications

Productivity Up to 120 BPM
Labeling Speed: 30 M/min (98 ft/min)
Applicable Size Label:
Length: 15-450 mm (1⁄2″ to 18″)
Width: (depend on label head type)
A: 15-80 mm (1⁄2″ to 3″)
B: 15-120 mm (1⁄2″ to 4 3⁄4″)
C: 15-150 mm (1⁄2″ to 6″)
D: 15-180 mm (1⁄2″ to 7″)
E: 15-220 mm (1⁄2″ to 8 3⁄4″)
F: 15-265 mm (1⁄2″ to 11 1⁄2″)
Bottle:
Dia.: Ø30-150 mm (1 1⁄4″ to 6”)
(depend on conveyor width)
Height: 50-320 mm (2” to 12 1⁄2″)
Power source 110/220 V, 50/60 HZ, 1 PH
Power Consumption 725 VA (110V: 6.6 A, 220V: 3.3 A)
Air Pressure 6 bar (87 psi)
Air Consumption 50 NL/min (1.8 CFM)
(for optional Lot/Date printer)
Machine Dimensions ( L x W x H ) 2,000 x 1,140 x 1,425 mm
(Including conveyor) (6’-7” x 3’-9“ x 4’-8”)
Machine Weight 210 kg (463 lbs)
Noise Level ≤ 75 dB

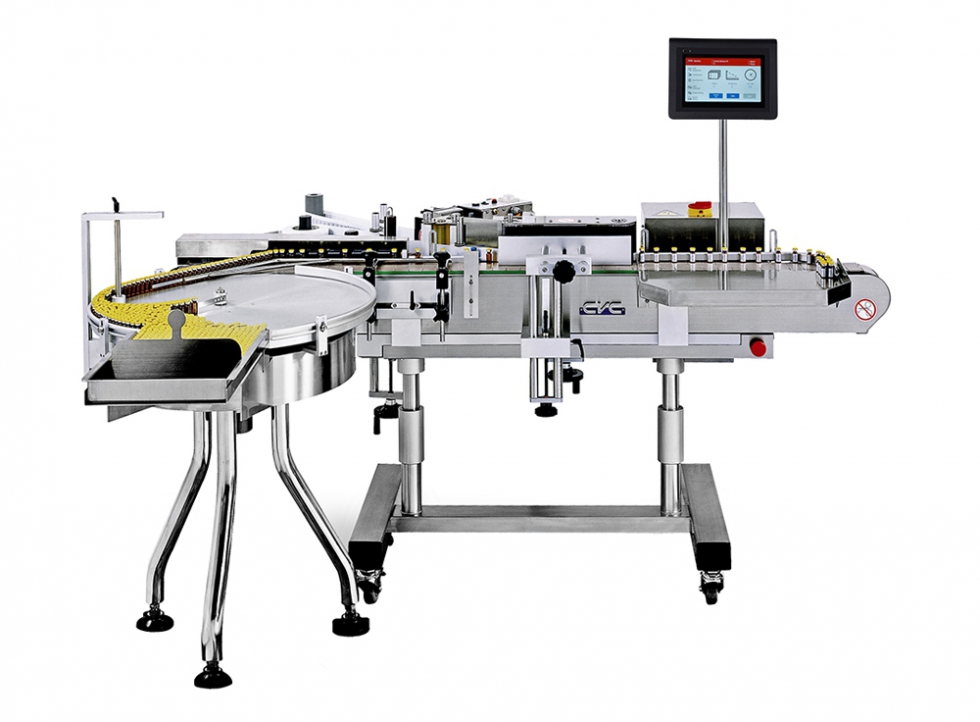

The CVC 330 Vial & Ampoule Wrap Labeler is built to automatically apply pressure sensitive labels onto small diameter round containers. The 330 comes standard with a 700mm loading turn table, a ground chain conveyor, and modified railing for precise labeling of small vials and bottles. The 330 is an ideal machine for contract packagers and manufacturers serving the biotech, nutraceutical, pharmaceutical, and food markets.

CVC 330 Brochure

Technical Specifications

Productivity Up to 200 BPM (subject to trial confirmation)
Labeling Speed: 38 M/min (124 ft/min)
Applicable Size Label:
Length: 15-254 mm (1⁄2″ to 10″)
Width: (depend on label head type)
A: 15-80 mm (1⁄2″ to 3″)
B: 15-120 mm (1⁄2″ to 4 3⁄4″)
C: 15-150 mm (1⁄2″ to 6″)
D: 15-180 mm (1⁄2″ to 7″)
Bottle:
Dia.: Ø25-102 mm (1” to 4”)
(depend on conveyor width)
Height: 50-320 mm (2” to 12 1⁄2″)
Power source 110/220 V, 50/60 HZ, 1 PH
Power Consumption 396 VA (110V: 3.6 A, 220V: 1.8 A)
Air Pressure 6 bar (87 psi)
Air Consumption 50 NL/min (1.8 CFM)
(for optional Lot/Date printer)
Machine Dimensions ( L x W x H ) 2,000 x 1,460 x 1,430 mm (6’-7” x 4’-9“ x 4’-8”)
(Including conveyor & accumulation rotary table)
Machine Weight 230 kg (507 lbs)
Noise Level ≤ 75 dB

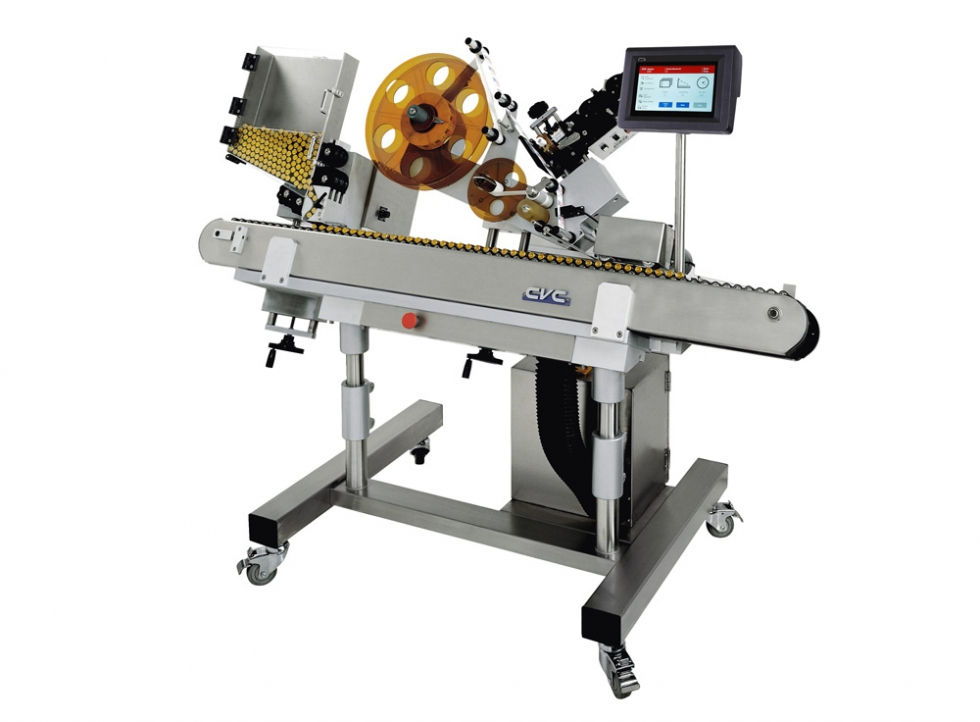

The CVC 350 Horizontal Ampule Labeler is built to automatically apply pressure sensitive labels onto round containers that will not convey upright on a conveyor. The CVC 350 comes with a roller chain conveyor and can be purchased with an optional product loader. The CVC 350 is an ideal machine for contract packagers and manufacturers serving the biotech, nutraceutical, cosmetic, and personal care markets.

All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

CVC 350 Brochure

Technical Specifications

Power source 110V/220V, Single Phase
Power Consumption 352 VA (3.2Amp/110V, 1.6Amp/220V)
Air Pressure 6 bar (87 psi) (ISO 8573-1)
Air Consumption 50 NLit/m (2cfm) (for optional Lot/Date printer)
Consumption Machine Dimensions 5′-8″ x 2′-7″ x 5′-1″ (1,730 mm x 800 mm x 1,560 mm) (L x W x H)
Speed Up to 250 Bottles per minute (BPM) (subject to our trial confirmation)
Label Width / Height

Configurable from ⅝” to 3 ¾” (15mm – 96mm) dependent on label

head type

Label Length ⅝” to 3″ (15mm – 75mm)
Label Roll Max 14″ (356mm) outside diameter with 3″ (76mm) core
Bottle Height Configurable from 1 ⅝” to 2 ¾” (40 mm – 70 mm)
Bottle Diameter

Configurable from ⅜” to 1″ (10 mm – 24 mm) dependent on

conveyor width

Conveyor Width Configurable up to 5 ⅝” (144mm) / 7 ⅝” (194mm)
Conveyor Length Standard 66 ⅞” (1700mm) (Extendable)
Machine Weight 230 kg (507 lbs)
Noise Level 70~75 dB

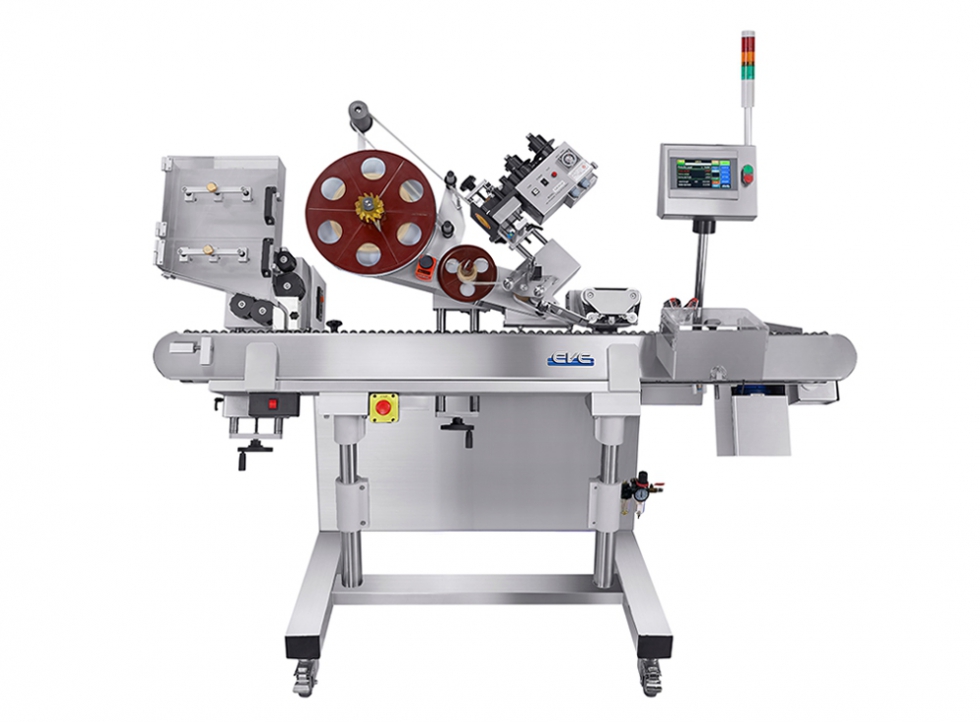

The CVC 35O.U2 Horizontal Wrap Labeler is built to automatically apply pressure sensitive labels onto round containers that will not convey upright on a conveyor. The 350.U2 comes with a roller chain conveyor and can be purchased with an optional product loader. The 350.U2 is an ideal machine for contact packagers and manufacturers serving the biotech, nutraceutical, cosmetic, and personal care markets.

CVC 350.U2 Brochure

Technical Specifications

Type U2
Productivity Up to 250 BPM (subject to trial confirmation)
Labeling Speed: 38 M/min (124 ft/min)
Applicable Size Label:
Length: 15-75 mm (1/2” to 3″)
Width: (depend on label head type)
A: 15-39 mm (1/2” to 1 1/2″)
B: 15-96 mm (1/2” to 3 3/4″)
Bottle:
Dia.: Ø10-24mm (3/8” to 1”)
(depend on conveyor width)
Height: Type A: 40-70 mm (1 1/2” to 2 3/4”)
Type B: 40-120mm (1 1/2” to 4 3/4”)
Power source 110/220 V, 50/60 HZ, 1 PH
Power Consumption 748 VA (110V: 6.8 A, 220V: 3.4 A)
Air Pressure 6 bar (87 psi)
Air Consumption 50 NL/min (1.8 CFM)
(for optional Lot/Date printer)
Machine Dimensions ( L x W x H ) 1,931 x 840 x 1,738 mm
(6’-4” x 2’-9.1“ x 5’-8.4”)
Machine Weight 230 kg (507 lbs)
Noise Level ≤ 75 dB

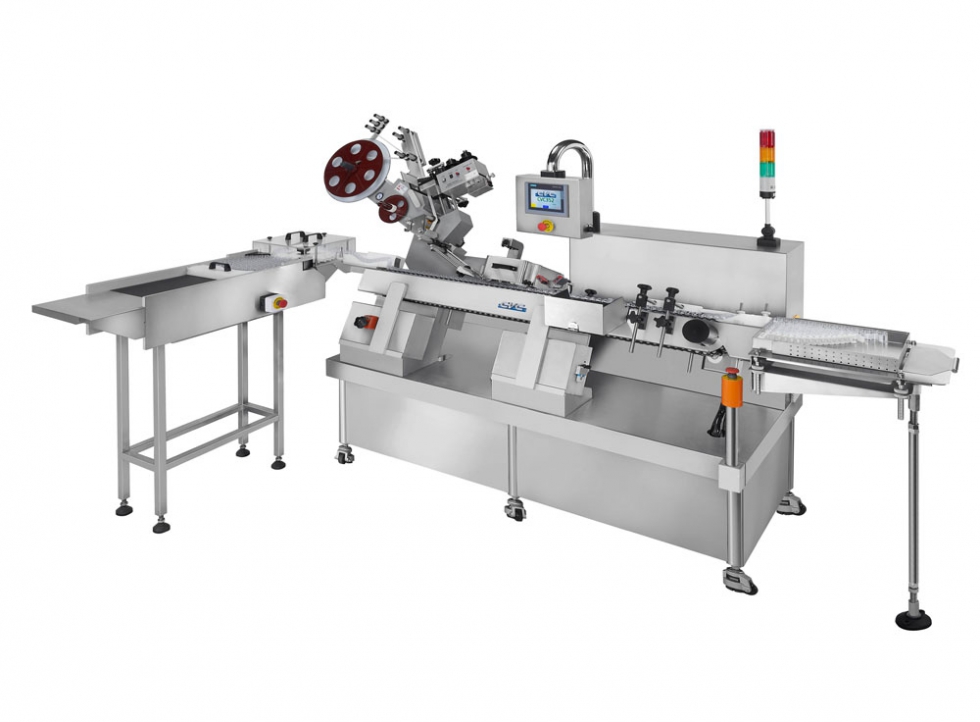

The CVC 352 Horizontal Ampule Labeler is built to automatically apply pressure sensitive labels onto round containers that will not convey upright on a conveyor. The CVC 352 comes with a roller chain conveyor and can be purchased with an optional product loader. The CVC 352 is an ideal machine for contract packagers and manufacturers serving the biotech, nutraceutical, cosmetic, and personal care markets.

All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

CVC 352 Brochure

Technical Specifications

Power 220V, single phase, 1100 VA (5 Amp)
Air Pressure 6 bar (87 psi) (ISO 8573-1)
Air Consumption 78.5 NLit/m (2.8cfm) (for optional reject and Lot/Date printer)
Consumption Machine Dimensions 9′-4″ x 6′-2″ x 6′-2″ (2,850 mm x 1,885 mm x 1,890 mm) (L x W x H)
Speed

Up to 300 Bottles per minute (BPM) (subject to our trial

confirmation)

Label Width / Height

Configurable from ⅝” to 3 ¾” (15mm – 96mm) dependent

on label head type

Label Length ⅝” to 3″ (15mm – 75mm)
Label Roll Max 14″ (356mm) outside diameter with 3″ (76mm) core
Bottle Height Configurable from 1 ⅝” to 2 ¾” (40 mm – 70 mm)
Bottle Diameter

Configurable from ⅜” to 1″ (10 mm – 24 mm) dependent

on conveyor width

Conveyor Width Configurable up to 5 ⅝” (144mm) / 7 ⅝” (194mm)
Conveyor Length Standard 63 ¾” (1620mm) (Extendable)
Machine Weight 605 kg (1334 lbs)
Noise Level 70~75 dB

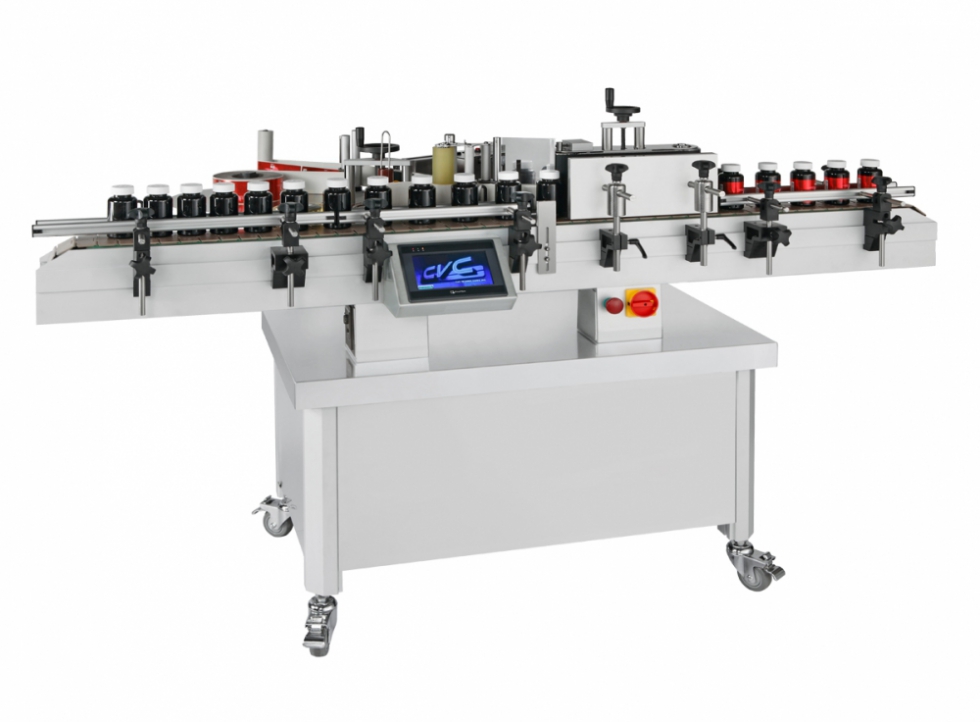

The CVC EC30 Wrap Labeler is built to automatically apply pressure sensitive labels onto round containers at up to 120 bottles per minute. The economical EC30 is part of our EC Line of labelers which include servo motor drives and touch screen controls at very affordable price points. The EC 30 has 100 channels of memory and can be ordered with an optional Hot Stamp for lot/date coding on labels. The EC30 is an ideal machine for contract packagers and manufacturers serving the pharmaceutical, nutraceutical, and food markets.

CVC EC30 Brochure

Technical Specifications

Power 220V, Single Phase, 2.7 Amp
Air Pressure Minimum 87 psi (ISO 8573-1)
Air Consumption 1.8 cfm (for optional reject and Lot/Date printer)
Speed Up to 160 Bottles per Minute (BPM)
Label Width / Height ⅝” to 6″ (15mm – 150mm) dependent on label head type
Label Length ⅝” to 10″ (15mm – 255mm)
Bottle Height 2″ to 12⅝” (50mm – 320mm)
Bottle Diameter 1″ to 4″ (25mm – 102mm) dependent on conveyor width
Machine Weight 160 kg
