IMA Record
IMA Record designs and manufactures packaging machines and automatic lines for the food and non-food industries. Reliability and efficiency are key elements of IMA Record’s horizontal flow wrappers, with a high level of customization to meet the requirements of the demanding markets.
100% made in Italy, technologically up-to-date and durable over the time, the IMA Record’s HFFS can be equipped with a wide range of modular feeders, easy to be integrated in automatic process lines, from primary to the secondary packaging.
PRIMARY PACKAGING: FLOW WRAPPING

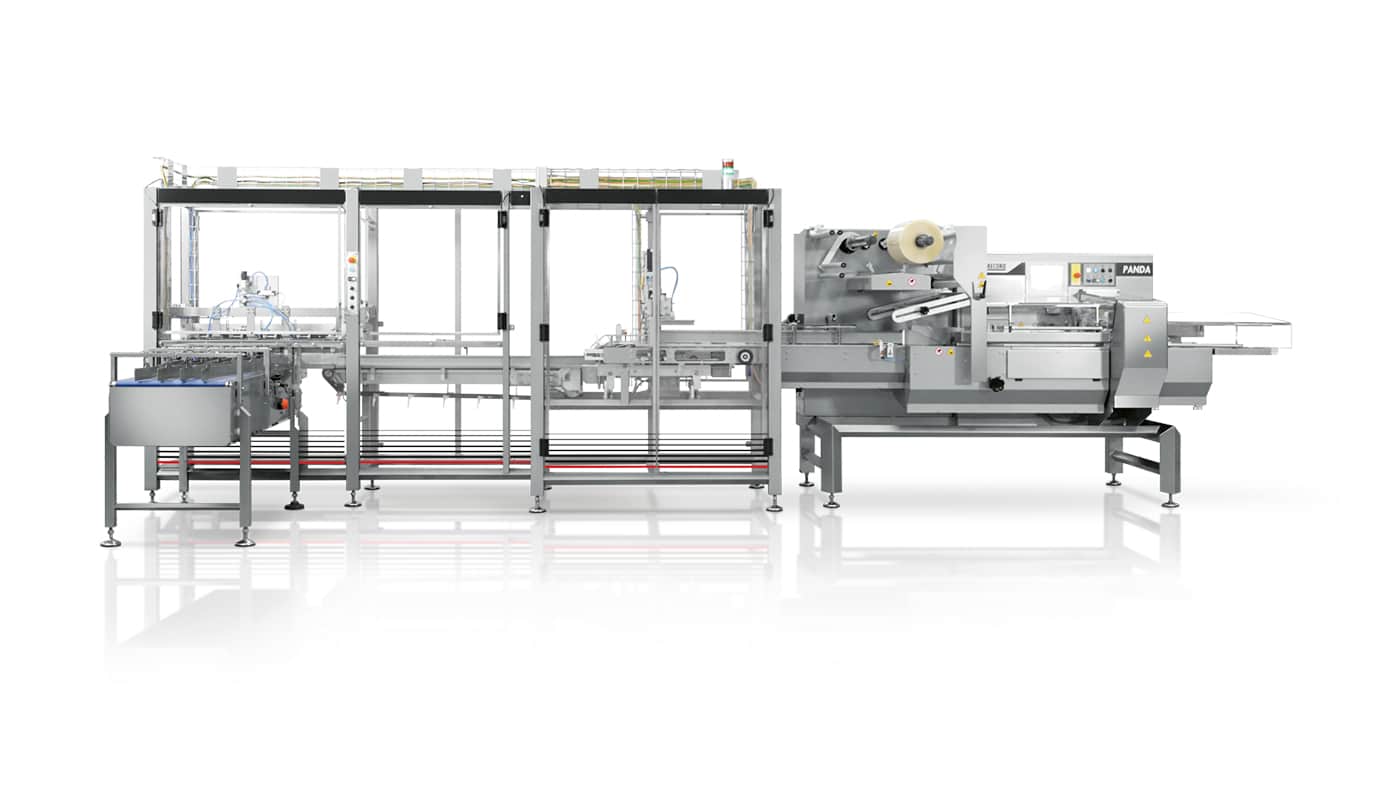

HFFS machine for products on edge
The On Edge version of the Panda Bottom Seal is applied for products, such as biscuits and crackers, that can be packed on edge.
This flow wrapper is suitable for both semi and fully automated applications in order to meet the most various needs and can be combined with the automatic feeding systems offered by Record.
The On Edge version of the Panda Bottom Seal is available with two different sealing jaws head units: the rotating jaws (PANDA BS RS OE) or the Long-Dwell (PANDA BS LS OE), applied according to the product main characteristics.
PANDA BS OE Highlights
- Suitable for a wide range of products and pack sizes.
- Possibility to be integrated into a complete process flow.
- Customizable solutions to meet any specific requirements.
- Food grade basic material and easy to sanitize design.
- Wash-down version available.
Technical Data
| PANDA BS RS OE | PANDA BS LS OE | |
| Machine speed (ppm max.) | 130 | 60 |
| Product width (mm max.) | 300 | 300 |
| Product depth (mm max.) | 130 (180) | 150 |
| Product height (mm max.) | 80 (110) | 160 (180) |
| Film width (mm max.) | 730 (930) | 730 |
| Cut-off length (mm max.) | 400 | 400 |
| Jaws width (mm max.) | 170 (250) | 170 |
| Film linear speed (m/min.) | 50 | 50 |

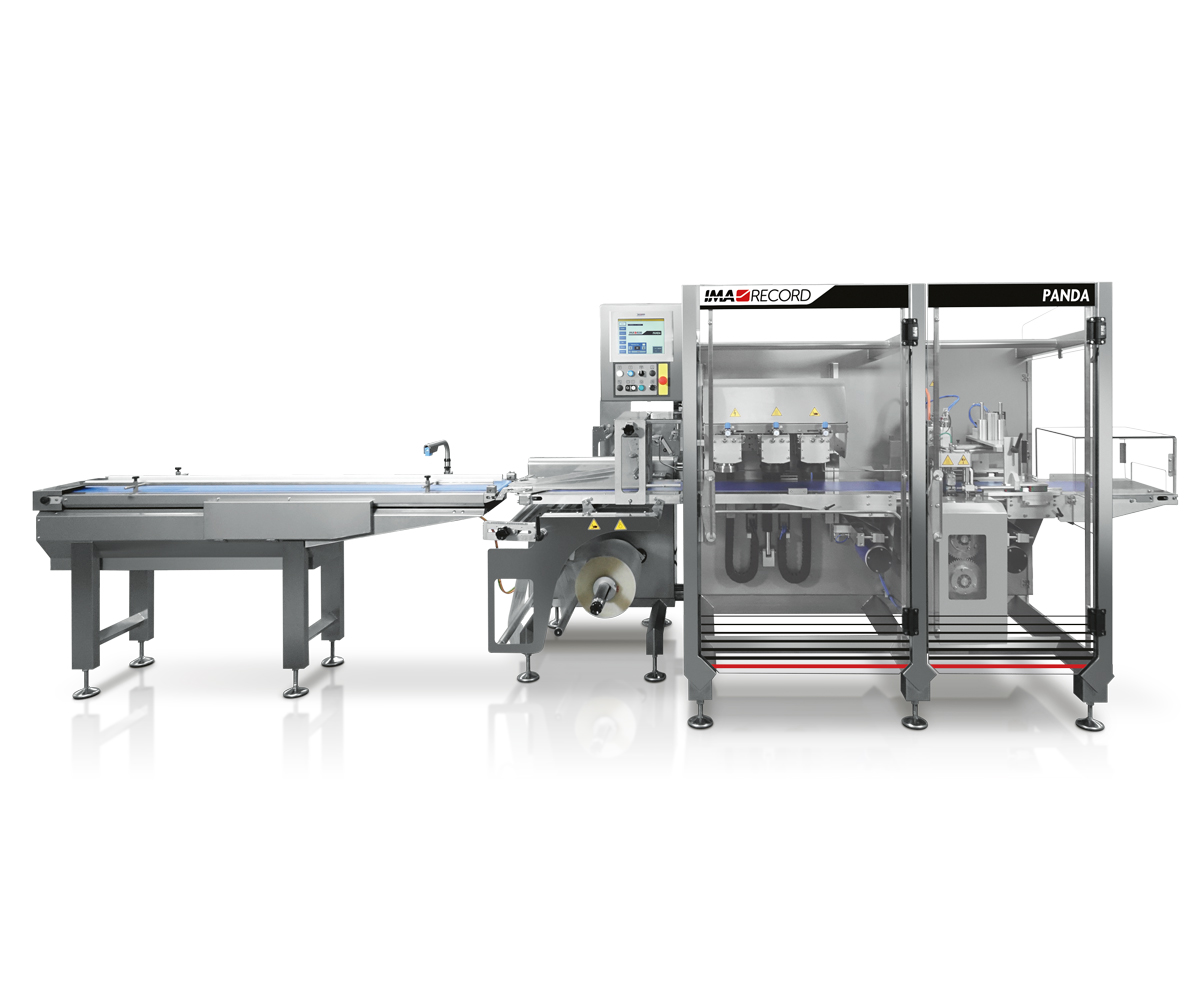

Flexible and versatile flow pack machine.
The Panda flow wrapping machine in the Top Seal version is ideal to pack a wide range of irregular and unsupported small and medium size products, difficult to be pushed.
The Panda TS LS is applied to pack fresh produce and food products in general thanks to the Long-dwell sealing head that offer a hermetic packaging even with compound structure packaging materials and barrier films. This machine can reach the speed of 80 packs per minute.
The Panda Top Seal is locked with transparent doors in order to ensure a better and complete visibility on the machine. Moreover, the open frame grants a facilitated access in case of intervention and maintenance.
The reel mounting is separated from the machine body to be easily replaceable.
PANDA TS LS Highlights
- Suitable for a wide range of products and pack sizes.
- Possibility to be integrated into a complete process flow.
- Customizable solutions to meet any specific requirements.
- Food grade basic material and easy to sanitize design.
- Wash-down version available.
Technical Data
| PANDA TS LS | |
| Machine speed (ppm max.) | 80 |
| Product width (mm max.) | ∞ |
| Product depth (mm max.) | 320 (370) |
| Product height (mm max.) | 160 (180) |
| Film width (mm max.) | 730 (930) |
| Cut-off length (mm max.) | ∞ |
| Jaws width (mm max.) | 350 (400) |
| Film linear speed (m/min.) | 30 |

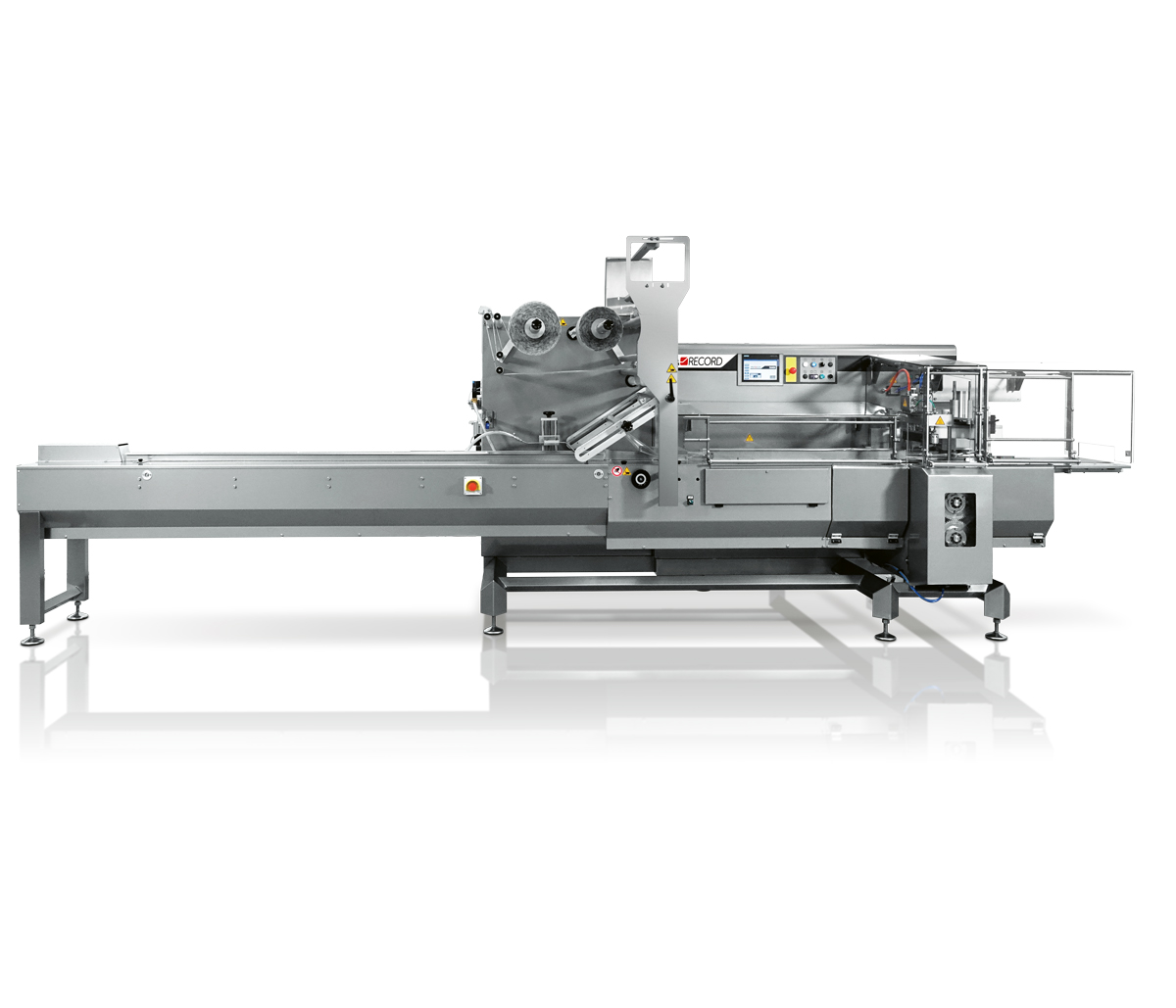

Flexible and versatile flow pack machine.
The Panda flow wrapping machine in the Bottom Seal version is ideal to pack a wide range of regular small and medium size products, easy to carry.
The Panda BS LS is applied to pack fresh produce and food product in general thanks to the Long-dwell sealing head that offer an hermetic packaging even with compound structure packaging materials and barrier films. This machine can reach the speed of 80 packs per minute.
PANDA BS LS Highlights
- Suitable for a wide range of products and pack sizes.
- Possibility to be integrated into a complete process flow.
- Customizable solutions to meet any specific requirements.
- Food grade basic material and easy to sanitize design.
- Wash-down version available.
Technical Data
| PANDA BS LS | |
| Machine speed (ppm max.) | 80 |
| Product width (mm max.) | 850 |
| Product depth (mm max.) | 320 (370) |
| Product height (mm max.) | 160 (180) |
| Film width (mm max.) | 730 (930) |
| Cut-off length (mm max.) | 950 |
| Jaws width (mm max.) | 350 (400) |
| Film linear speed (m/min.) | 50 |

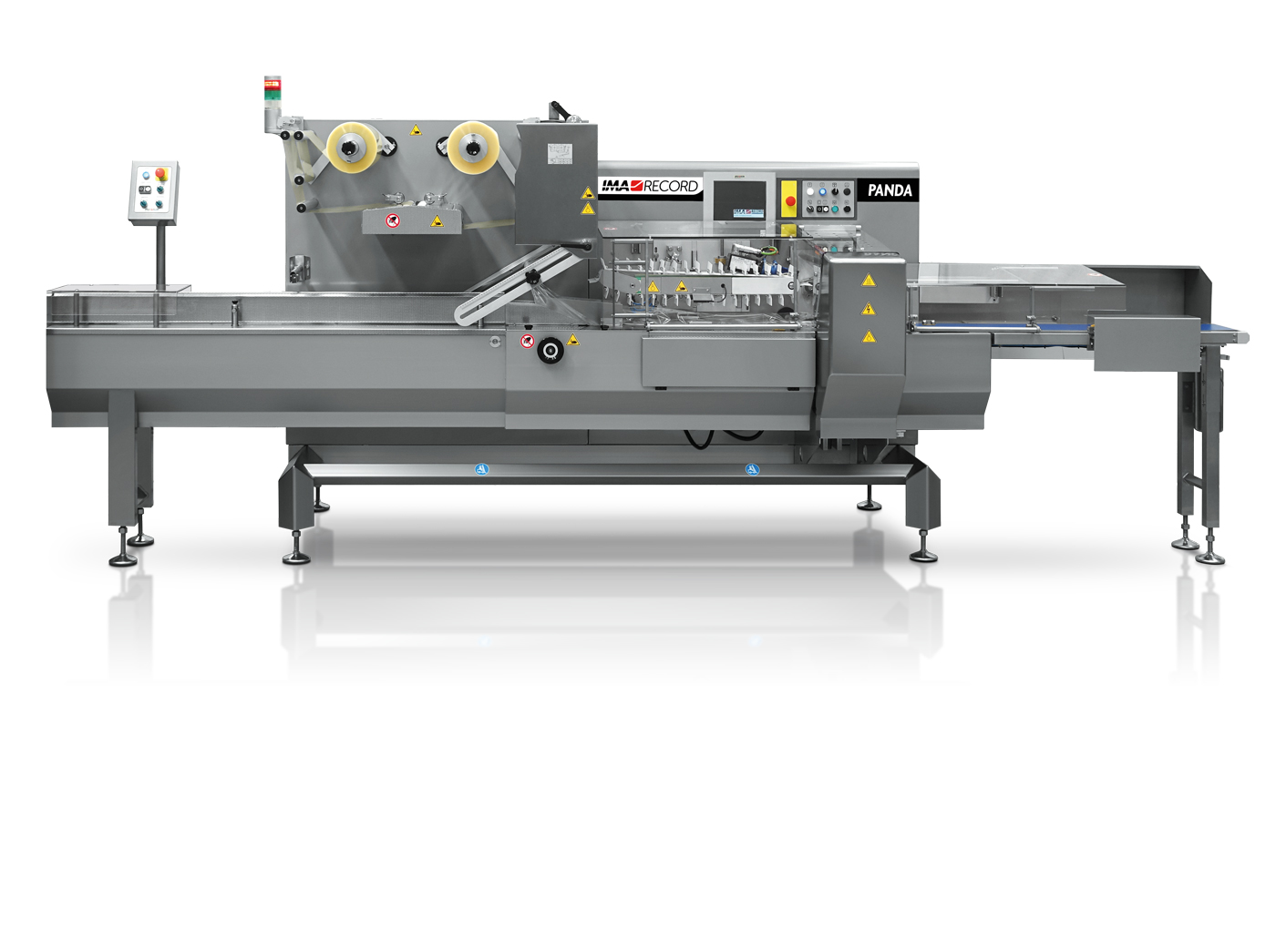

Flexible and versatile flow pack machine.
The Panda flow wrapping machine in the Bottom Seal version is ideal to pack a wide range of regular small and medium size products, easy to carry.
The Panda BS RS can reach the speed of 300 packs per minute.
The rotating sealing jaws (single or double) is applied for high-speed packaging with simple wrapping material (even heat-shrinkable); this kind of sealing protects the product and gives the pack a good-looking aspect.
PANDA BS RS Highlights
- Suitable for a wide range of products and pack sizes.
- Possibility to be integrated into a complete process flow.
- Customizable solutions to meet any specific requirements.
- Food grade basic material and easy to sanitize design.
- Wash-down version available.
Technical Data
| PANDA BS RS | PANDA BS RS LARGE | |
| Machine speed (ppm max.) | 150 (300) | 120 |
| Product width (mm max.) | 750 | 750 |
| Product depth (mm max.) | 280 | 355 |
| Product height (mm max.) | 120 (180) | 120 (180) |
| Film width (mm max.) | 730 | 930 |
| Cut-off length (mm max.) | 850 | 850 |
| Jaws width (mm max.) | 350 (170) | 450 |
| Film linear speed (m/min.) | 50 | 50 |

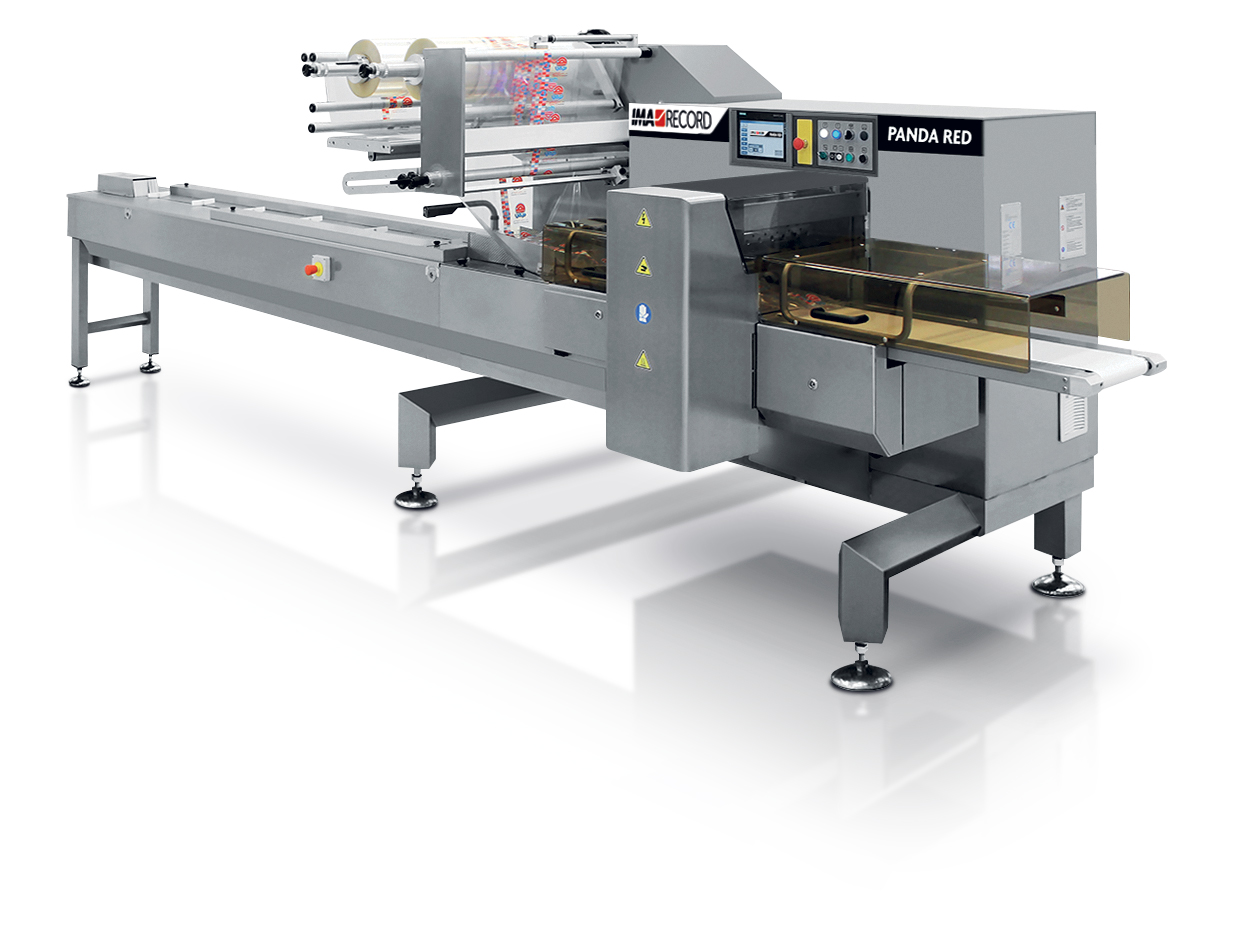

Horizontal flow wrapping machine
The HFFS Panda Red is the IMA Record flexible flow wrapper developed to meet the most various needs in both food and non-food industries.
The machine can be integrated with multiple feeding systems and it is suitable for medium performances level.
The Panda Red BS RS is available in the Bottom seal version with rotating sealing jaws and it is able to reach a speed up to 240 ppm.
The stainless-steel chassis and the availability of the washdown infeed match the level of sanitization required by the food industry, including IQF applications.
100% made in Italy, with a simple and intuitive HMI, the Panda Red can be easily connected for remote assistance and to the local ERP network.
PANDA RED BS RS Highlights
- Suitable for medium performances level.
- Possibility to be integrated with feeding systems.
- Wide range of options to choose.
- Washdown infeed available.
Technical Data
| PANDA RED BS RS | |
| Machine speed (ppm max.) | 240 |
| Product width (mm max.) | 750 |
| Product depth (mm max.) | 280 |
| Product height (mm max.) | 120 (160) |
| Film width (mm max.) | 730 |
| Cut-off length (mm max.) | 850 |
| Jaws width (mm max.) | 350 |
| Film linear speed (m/min.) | 40 |

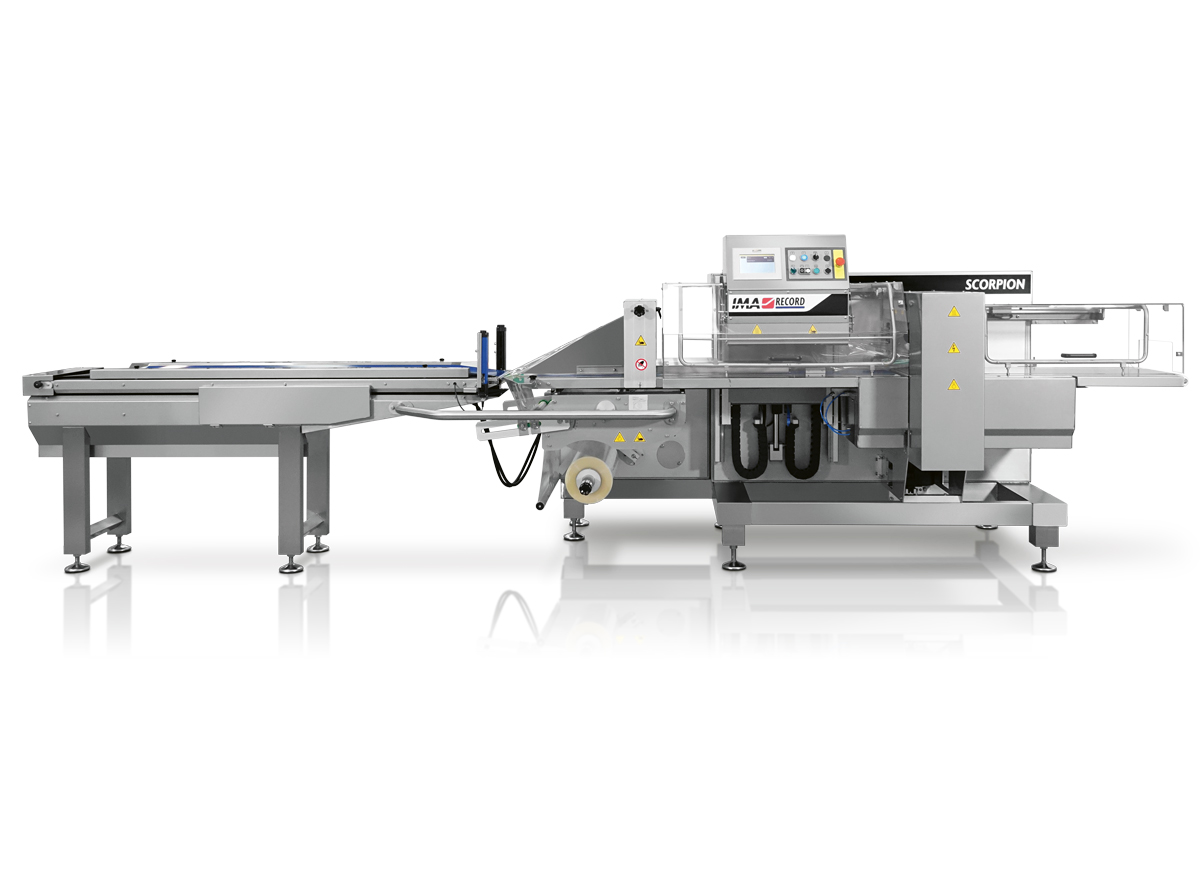

The entry level flow wrapping machine
The Top Seal version of the Scorpion flow wrapping machine is suitable for irregular and unsupported products, difficult to be pushed and with variable cut-off length. This machine can reach the speed of 100 packs per minute.
100% made in Italy, having the reliability and the quality of the materials recognized to all Record’s machines, Scorpion series matches essentiality and simplicity, with a simple design that has the purpose to provide easy and maintenance friendly operating.
The solidity of the Scorpion flow wrapping machines grants consistent performance in packaging small and medium size products up to 240 ppm.
SCORPION TS RS Highlights
- User friendly and easy maintenance.
- Suitable for a wide range of products and pack sizes.
- Customizable solutions to meet any specific requirements.
- Food grade basic materials.
Technical Data
| SCORPION TS RS | |
| Machine speed (ppm max.) | 100 |
| Product width (mm max.) | ∞ |
| Product depth (mm max.) | 280 (355) |
| Product height (mm max.) | 100 (220) |
| Film width (mm max.) | 730 (930) |
| Cut-off length (mm max.) | ∞ |
| Jaws width (mm max.) | 350 (450) |
| Film linear speed (m/min.) | 35 |

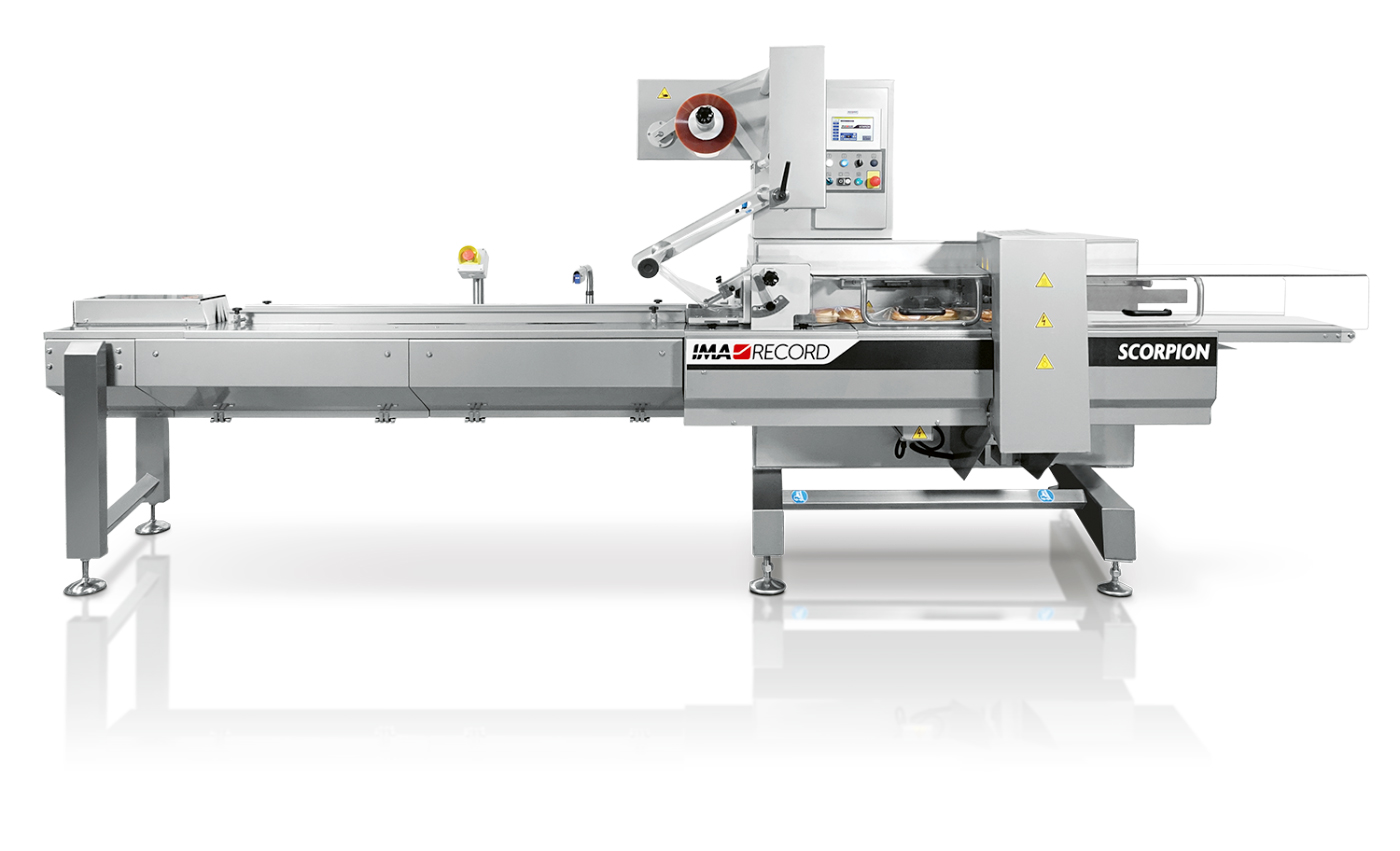

The entry level flow wrapping machine.
The Bottom Seal version of the Scorpion flow wrapping machine is suitable for a wide range of regular small and medium size products, easy to carry/push. This machine can reach the speed of 240 packs per minute.
100% made in Italy, having the reliability and the quality of the materials recognized to all Record’s machines, Scorpion series matches essentiality and simplicity, with a simple design that has the purpose to provide easy and maintenance friendly operating.
The solidity of the Scorpion flow wrapping machines grants consistent performance in packaging small and medium size products up to 240 ppm.
SCORPION BS RS Highlights
- User friendly and easy maintenance.
- Suitable for a wide range of products and pack sizes.
- Customizable solutions to meet any specific requirements.
- Food grade basic materials.
Technical Data
| SCORPION BS RS | |
| Machine speed (ppm max.) | 120 (240) |
| Product width (mm max.) | 750 |
| Product depth (mm max.) | 280 |
| Product height (mm max.) | 120 (160) |
| Film width (mm max.) | 730 |
| Cut-off length (mm max.) | 850 |
| Jaws width (mm max.) | 350 |
| Film linear speed (m/min.) | 35 |
