BAG CLOSING MACHINES

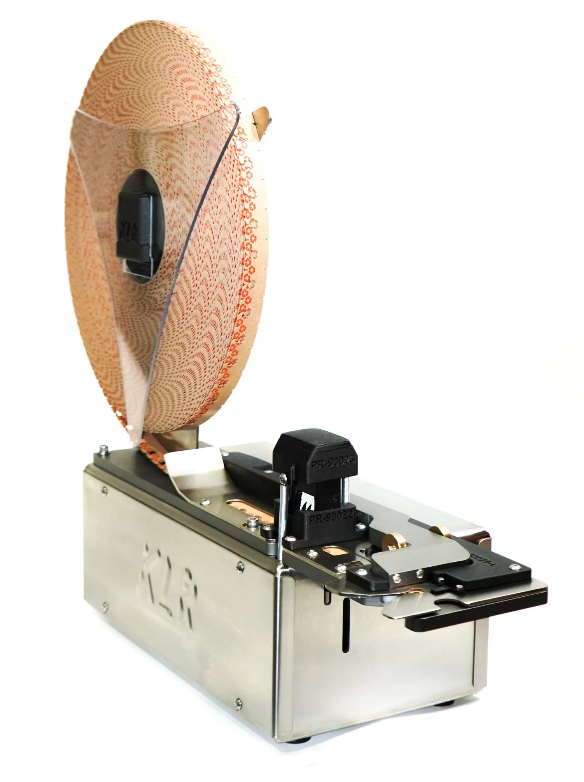

CHARACTERISTICS:

• Feeds, prints and cuts the clips automatically.
• Simple loading and unloading.
• Uses carboard clips
• Inexpensive date printing method
• Low maintenance required
• Stainless steel and anodized aluminium construction.

SPECIFICATIONS

• Length: 25″ Width: 8.6″ Height: 19″
• Electrical: 120/240V – 2.5A/1A – 1PH

CHARACTERISTICS

• Automated Unload and Load function (1 button on touchscreen) allows for easy clip changeovers. Home sensor loads the strip to the right location automatically.
• Load function automatically feeds clips through to ensure the clip in ready position has the latest print information.
• Breaker delay is computer controlled and easily user adjusted for optimal setting for your production needs. Thus, ensuring tight bags without marking or tearing the bag.
• The belt mechanism features four synchronous drive belts. The bag tail is fed evenly without slippage through the clip without marking or stretching the bag.
• Lower belts mounted on suspension track for jam prevention should anything other than a bag tail go through the belts.
• Bag detection by sensor for cycle start for less mechanical parts.
• Clip breaker in shear for minimal impact to machine drive train through end of cycle.
• Clips are fed linearly through the strip track allowing simple integration of multiple printing options without the need for an external encoder.
• Stainless steel and anodized aluminium construction.

SPECIFICATIONS

• Length: 13.5″ Width: 11″ Height: 22.5″
• Electrical: 115/240V – 5A – 1PH

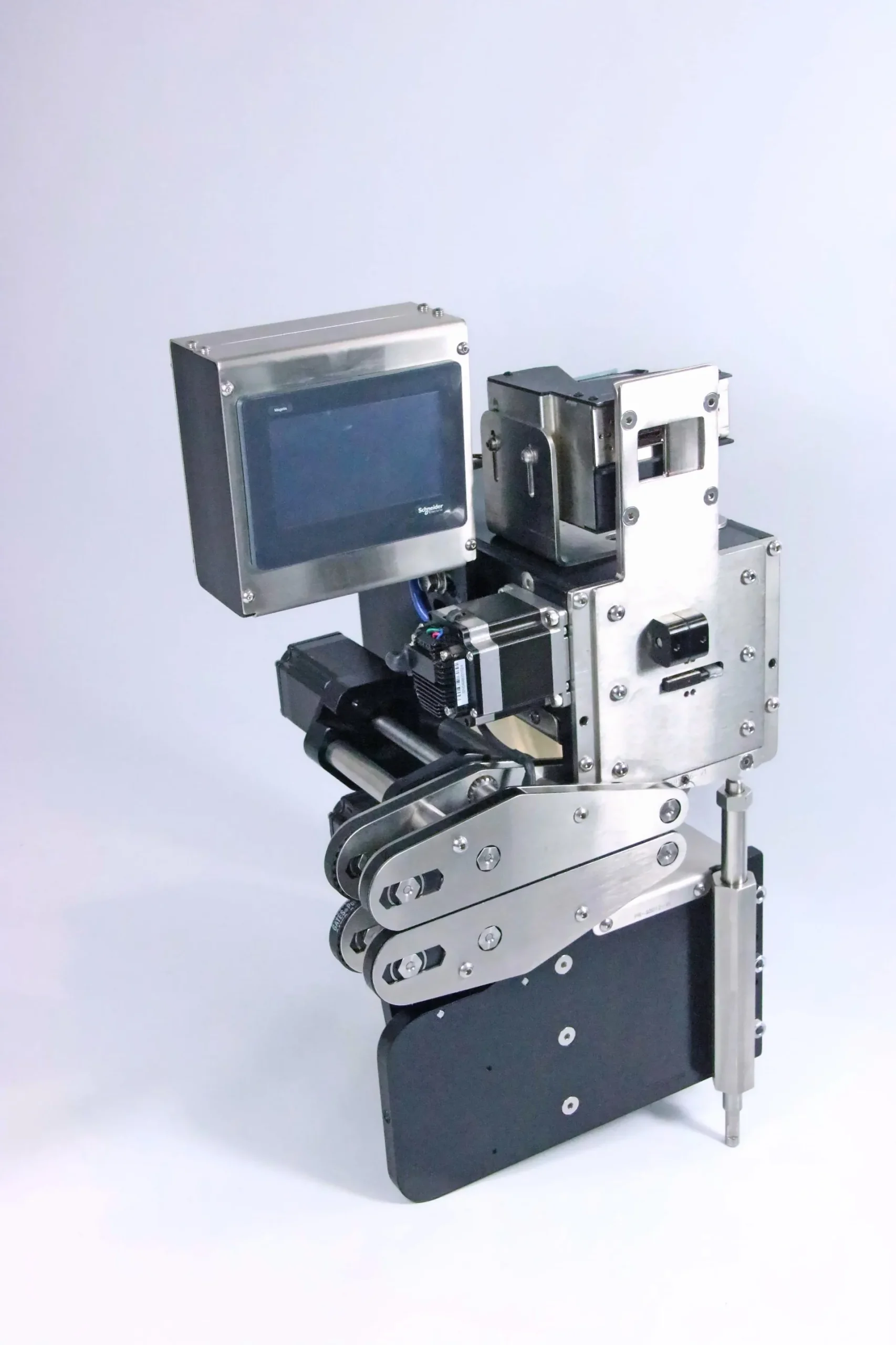

CHARACTERISTICS

• An electrical box completely separated from the mechanical unit, offering water-tight protection for electronic components. The single-plug design simplifies machine changeover.
• Automated Unload and Load function (1 button on touchscreen) allows for easy clip changeovers. Home sensor loads the strip to the right location automatically.
• Load function automatically feeds clips through to ensure the clip in ready position has the latest print information.
• Breaker delay is computer controlled and easily user adjusted for optimal setting for your production needs. Thus ensuring tight bags without marking or tearing the bag.
• The belt mechanism features four synchronous drive belts. The bag tail is fed evenly without slippage through the clip without marking or stretching the bag.
• Lower belts mounted on suspension track for jam prevention should anything other than a bag tail go through the belts.
• Bag detection by sensor for cycle start for less mechanical parts.
• Clip breaker in shear for minimal impact to machine drive train through end of cycle.
• Clips are fed linearly through the strip track allowing simple integration of multiple printing options without the need for an external encoder.
• Stainless steel construction.



SPECIFICATIONS

Mechanical unit:

• Length: 16″ Width: 15″ Height: 24″

Control panel:

• Length: 10″ Width: 13″ Height: 22″
• Electrical: 115/240V – 3.5A – 1PH
