VP 120
About the VP 120

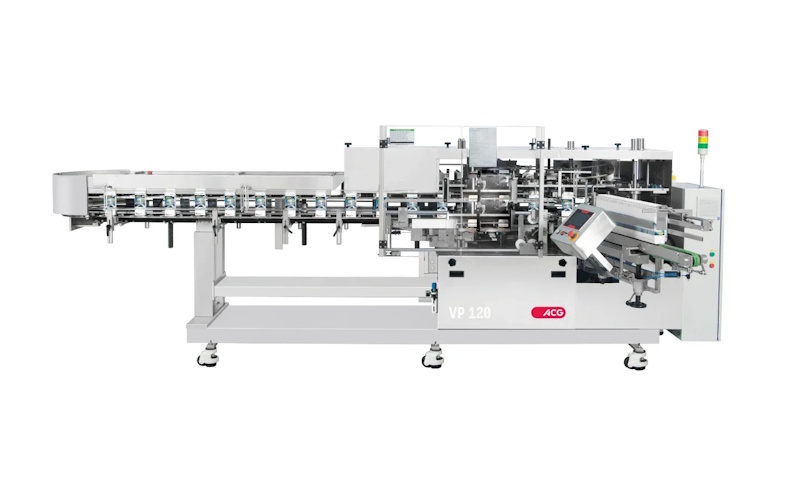

Versatile, continuous-motion and semi-automatic – ACG’s VP 120 vertical cartoning machine is designed specifically for handling standard rigid products, and non-rigid products, and combination products that other packaging machines simply can’t handle.
It enables the packing of multiple products in a single carton, and handles a wide range of carton sizes without additional format parts. It can also be fully automated for handling customised products.
Applications
Blister packs, bottles, vials, ampoules, tubes, tubes and toothbrushes, soaps, pouches, spoons
Features |
Benefits |
|
|---|---|---|
| Format-free cartoning |  |
Proficiency in handling a wide range of carton sizes, with low investment and running costs |
| Caster wheels | |
Moves freely around the production area to optimise use of available space |
| Automated leaflet transfer system | |
Reduces manual work significantly |
| Option to extend product conveyor to match operator configuration | |
Flexibility to cater to different packaging applications |
| Pharmacode and barcode inspection | |
Supports compliance with regulatory norm |
Technical specification |
|||
| Maximum output |
120 cartons/min |
||
| Carton width | Min |
20 mm |
|
| Max |
135 mm |
||
| Carton height | Min |
14 mm |
|
| Max |
90 mm |
||
| Carton length | Min |
57 mm |
|
| Max |
320 mm |
||
| Carton type | Reverse tuck-in, glued type, parallel tuck-in, top tuck-in/bottom gluing | ||
