VEKTOR
About the VECTOR

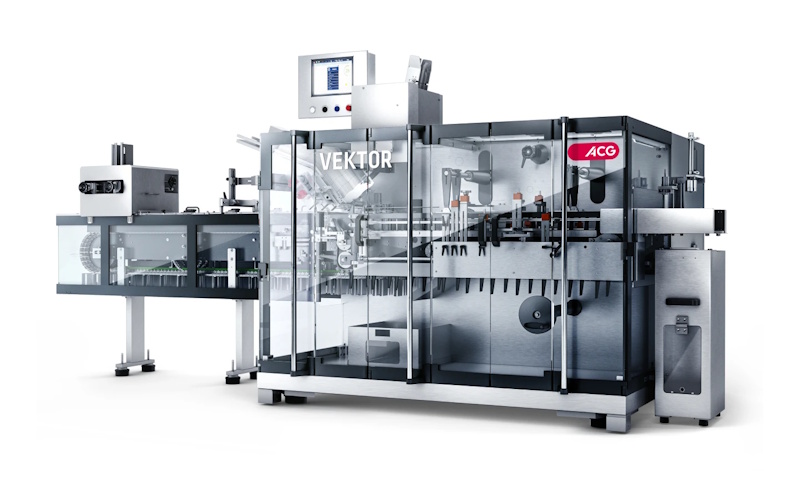

VEKTOR is a compact, intermittent-motion, horizontal cartoning machine that integrates easily with upstream blister packaging machines. Built on a robust framework of balcony design, it’s cGMP compliant, and ideal for blister applications with multiple stacks.
Applications
Multiple stacks of blister packs
Features |
Benefits |
|
|---|---|---|
| Compact footprint |  |
Saves production floorspace |
| cGMP-compliant balcony-type construction built on a servo-driven platform | |
Easy access and cleaning
Smooth and silent operation |
| Single format part | |
Quick and easy changeover
Cost-effective |
| Built-in ‘No product-No leaflet-No carton’ system | |
Reliable, error-free output |
| Available in different pitch configurations | |
Package cartons of many different sizes |
| Capable of integrating leaflet and booklet transfer units | |
Allows patient information inserts in different formats |
Technical specification |
|||
|
VEKTOR 5P |
VEKTOR 8P | ||
| Maximum output |
80 cartons/min |
50 cartons/min |
|
| Carton width | Min |
20 mm |
50 mm |
| Max |
95 mm |
130 mm |
|
| Carton height | Min |
16 mm |
16 mm |
| Max |
90 mm |
100 mm |
|
| Carton length | Min |
65 mm |
65 mm |
| Max |
200 mm |
220 mm |
|
| Carton type | Reverse tuck-in, glued type, parallel tuck-in, front tuck-in/rear gluing, gluing after tuck-in |
Reverse tuck-in |
|
