Top / Bottom / Side Labler – Labeling Machines

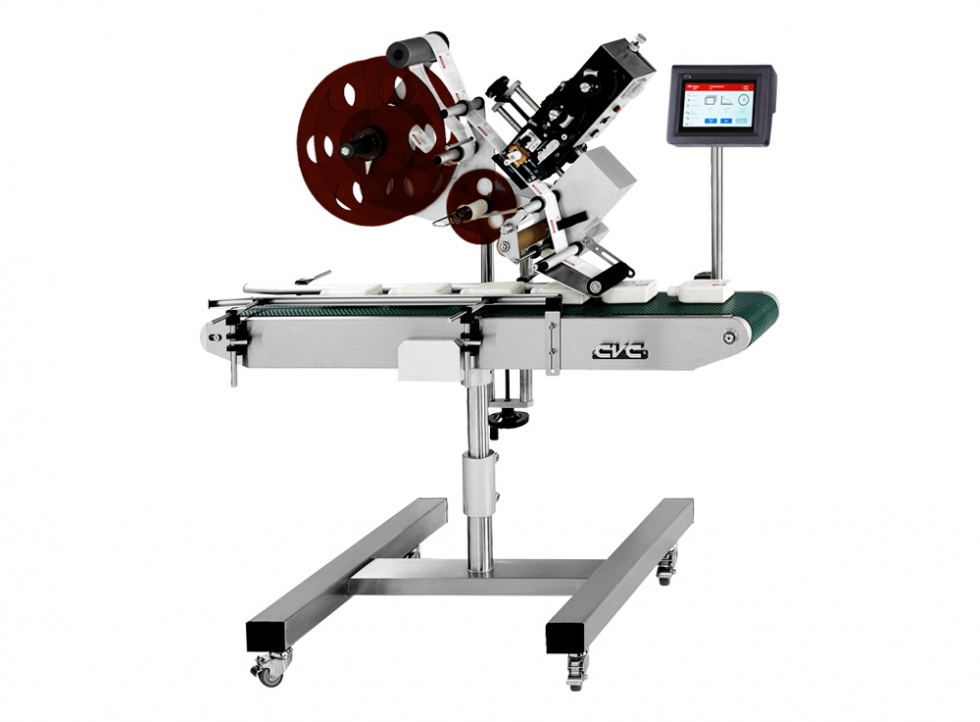

The CVC 200 Top Labeler is built to automatically apply pressure sensitive labels onto the top or side of flat and indented containers. The 200 comes standard with a 6” wide belt conveyor and is ideal for contract packagers and manufacturers serving the nutraceutical, food, cosmetic, personal care, and consumer electronic markets.
All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.
Technical Specifications
| CVC 200 Technical Specifications | |
| Productivity | Up to 200 PPM (subject to trial confirmation) Dispense Speed: 24 M/min (78 ft/min) |
| Applicable Size | Label: Length: 15-254 mm (1⁄2″ to 10″) Width: (depend on label head type) A: 15-80 mm (1⁄2″ to 3″) B: 15-120 mm (1⁄2″ to 4 3⁄4″) C: 15-150 mm (1⁄2″ to 6″) Product: Length: 30-260 mm (1 1⁄4″ to 10 1⁄4″) Width: 25-150 mm (1” to 6”) Height: 15-150 mm (1⁄2″ to 6”) |
| Power source | 110/220 V, 50/60 HZ, 1 PH |
| Power Consumption | 350 VA (110V: 3.2 A, 220V: 1.6 A) |
| Air Pressure | 6 bar (87 psi) |
| Air Consumption | 50 NL/min (1.8 CFM) (for optional Lot/Date printer) |
| Machine Dimensions ( L x W x H ) | 1,320 x 640 x 1485- 1,620 mm (4’-4” x 2’-1“ x 4’-10” to 5′-4″) |
| Machine Weight | 130kg (287 lbs) |
| Noise Level | ≤ 75 dB |

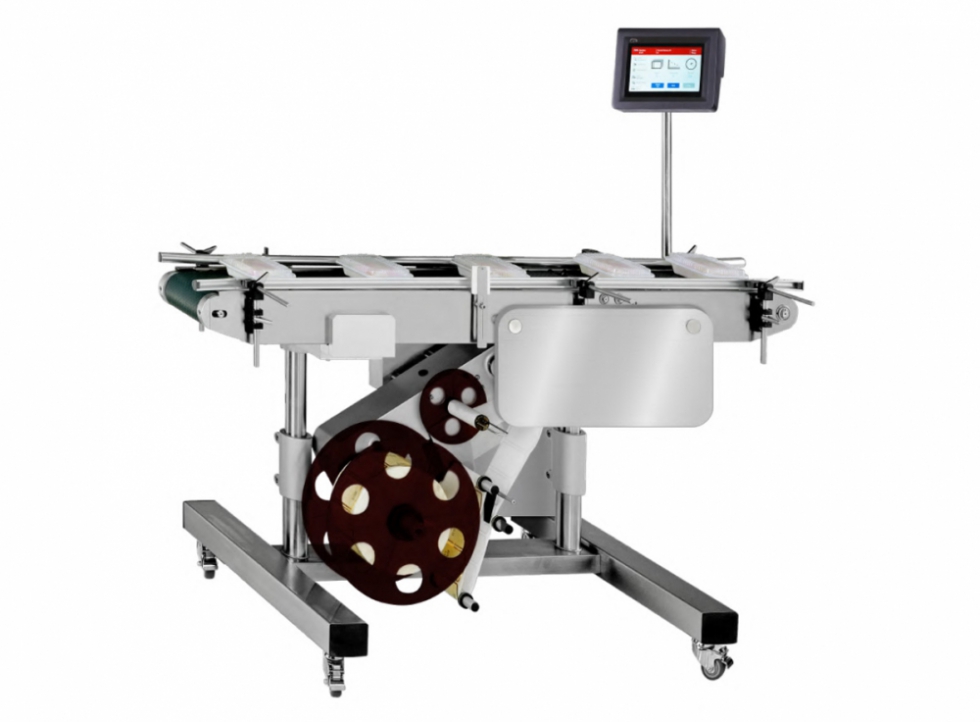

The CVC 210 Bottom Labeler is built to automatically apply pressure sensitive labels onto the bottom of flat and indented containers. The CVC 210 comes standard with a 6” wide belt conveyor and is ideal for contract packagers and manufacturers serving the nutraceutical, food, cosmetic, personal care, and consumer electronic markets.
All CVC labelers include our patented SelfSet™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.
Technical Specifications
The CVC 210 Bottom Labeler is built to automatically apply pressure sensitive labels onto the bottom of flat and indented containers. The CVC 210 comes standard with a 6” wide belt conveyor and is ideal for contract packagers and manufacturers serving the nutraceutical, food, cosmetic, personal care, and consumer electronic markets.
All CVC labelers include our patented SelfSet™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.
| CVC 210 Technical Specifications | |
| Type | U1 |
| Productivity |
Up to 150 PPM (subject to trial confirmation) Dispense Speed: 24 M/min (78 ft/min) |
| Applicable Size | Label Length: 15-250 mm (1/2” to 10″) Label Width: (dependent on label head type) A:15-80 mm (1/2″ to 3″) B:15-120 mm (1/2″ to 4 3/4″) Product Length: 30-260 mm (1 1/4″ to 10 1/4″) Product Width: 25-150 mm (1″ to 6″) Product Height: 25-150 mm (1/2″ to 6″) |
| Power source | 110/220 V, 50/60 Hz, 1 PH |
| Power Consumption | 350 VA (110V: 3.2 A, 220V: 1.6 A) |
| Air Pressure | 6 bar (87 psi) |
| Air Consumption | 50 NL/min (1.8 CFM) (for optional Lot/Date printer) |
| Consumption Machine Dimensions | 1,440 x 895 x 1470 mm (4’-9” x 2’-11“ x 4’-10”) |
| Machine Weight | 130kg (287 lbs) |
| Noise Level | ≤ 75 dB |

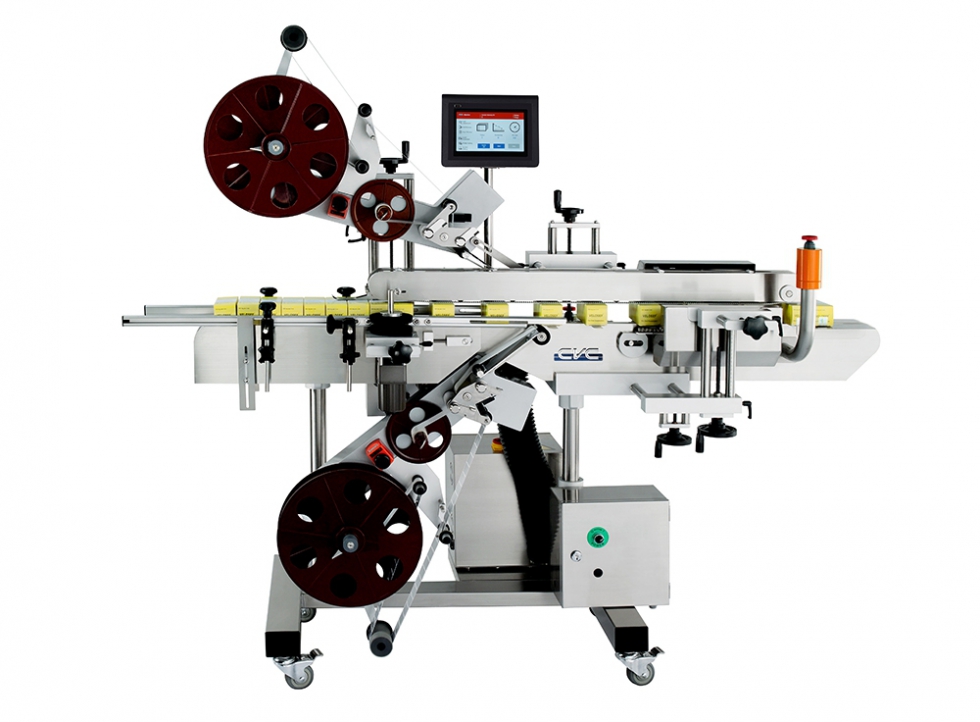

The CVC 230 is a carton sealing labeler featuring CVC exclusive selfset™ control system provides wrinkle-free labeling for top product labeling. The touch screen panel display shows all automatic settings.
All CVC labelers include our SelfSet™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.
Technical Specifications
| Type | U1A / U1AW |
| Productivity |
Up to 180 PPM (subject to trial confirmation) Dispense Speed: 30 M/min (98 ft/min) |
| Applicable Size | Label: Length & Width: 16-30 mm (5⁄8″ to 1 1⁄4″) Optional: 10-15 mm (3⁄8″ to 1⁄2″) Carton: Length: (depend on conveyor type) U1A: 75-120 mm (3“ to 4 3⁄4″) U1AW: 105-200 mm (4 1⁄4″ to 8”) Width: 20-100 mm (3⁄4″ to 4”) Height: 10-100 mm (1⁄2″ to 4”) |
| Power source | 110/220 V, 50/60 HZ, 1 PH |
| Power Consumption | 484 VA (110V: 4.4 A, 220V: 2.2 A) |
| Air Pressure | 6 bar (87 psi) |
| Air Consumption | 50 NL/min (1.8 CFM) (for optional Lot/Date printer) |
| Machine Dimensions ( L x W x H ) | 1,815 x 1,025 x 1,580-1,670 mm (5’-11” x 3’-4“ x 5’-2“ to 5’-6“) |
| Machine Weight | 270 kg (595 lbs) |
| Noise Level | ≤ 75 dB |

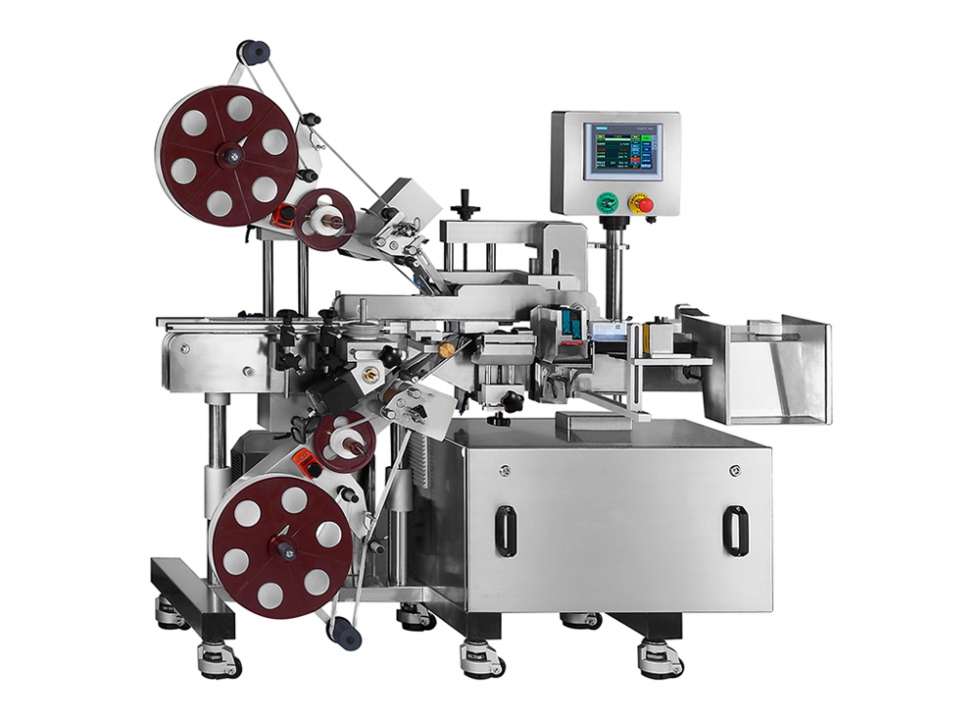

The CVC 232 is a carton sealing labeler featuring CVC exclusive selfset™ control system provides wrinkle-free labeling for top product labeling. The touch screen panel display shows all automatic settings.
All CVC labelers include our SelfSet™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.
Technical Specifications
| CVC 232 Technical Specifications | |
| Type | U4A / U4AW |
| Productivity |
Up to 260 PPM (subject to trial confirmation) Dispense Speed: 35 M/min (114 ft/min) |
| Applicable Size | Label: Length & Width: 16-30 mm (5⁄8″ to 1 1⁄4″) Optional: 10-15 mm (3⁄8″ to 1⁄2″) Carton: Length: (depend on conveyor type) U1A: 75-120 mm (3“ to 4 3⁄4″) U1AW: 105-200 mm (4 1⁄4″ to 8”) Width: 20-100 mm (3⁄4″ to 4”) Height: 10-100 mm (3⁄8″ to 4”) |
| Power source | 220 V, 50/60 HZ, 1 PH |
| Power Consumption | 950 VA (4.3 A) |
| Air Pressure | 6 bar (87 psi) |
| Air Consumption | 50 NL/min (1.8 CFM) (for optional Lot/Date printer) |
| Machine Dimensions ( L x W x H ) |
1,760 x 800 x 1,580- 1,670 mm (Including lamp tower) (5’-9” x 2’-7“ x 5’-2“ to 5’-6“) |
| Noise Level | ≤ 75 dB |
