Tablet & Capsule Counter Fillers

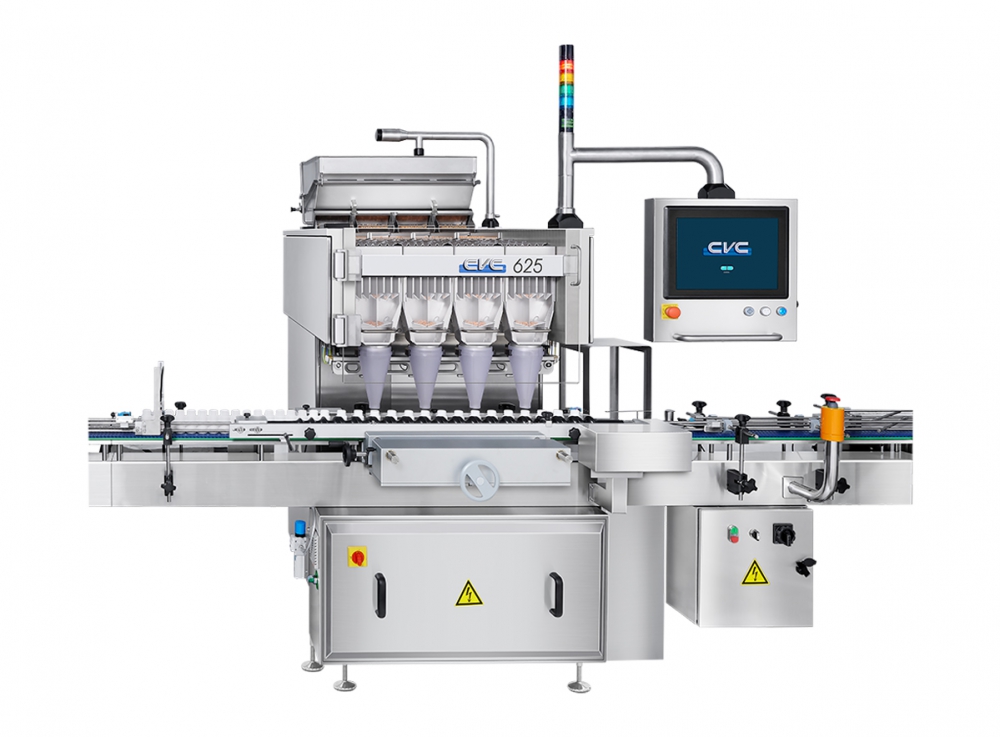

The new CVC 625×4 counting machine accommodates four counting modules for higher output and performance. This high-speed counter can be easily integrated into new or existing bottle filling and packaging lines.
Technical Specifications
| Productivity |
Up to 200 BPM (100 counts/10 mm Round, Concave, Coated Tablets, subject to trial confirmation) |
| Applicable Size | Tablet: Dia./ Width: 3-20 mm (1⁄8” to 3⁄4”) Height: 3-30 mm (1⁄8” to 1 1⁄4”) Bottle: Dia./ Width: 30-120 mm (1 1⁄4” to 4 1⁄2”) Height: 45-200 mm ( 1 3⁄4” to 7 3⁄4”) |
| Power source | 230 V, 50/60 HZ |
| Power Consumption | 1,940 VA |
| Air Pressure | 5 Bar |
| Consumption Machine Dimensions | 3,600 x 1,435 x 2,120 mm (Including conveyor) (11’-10” x 4’-8“ x 6’-11”) |
| Machine Weight | 1,760 kg (3,881 lbs) |

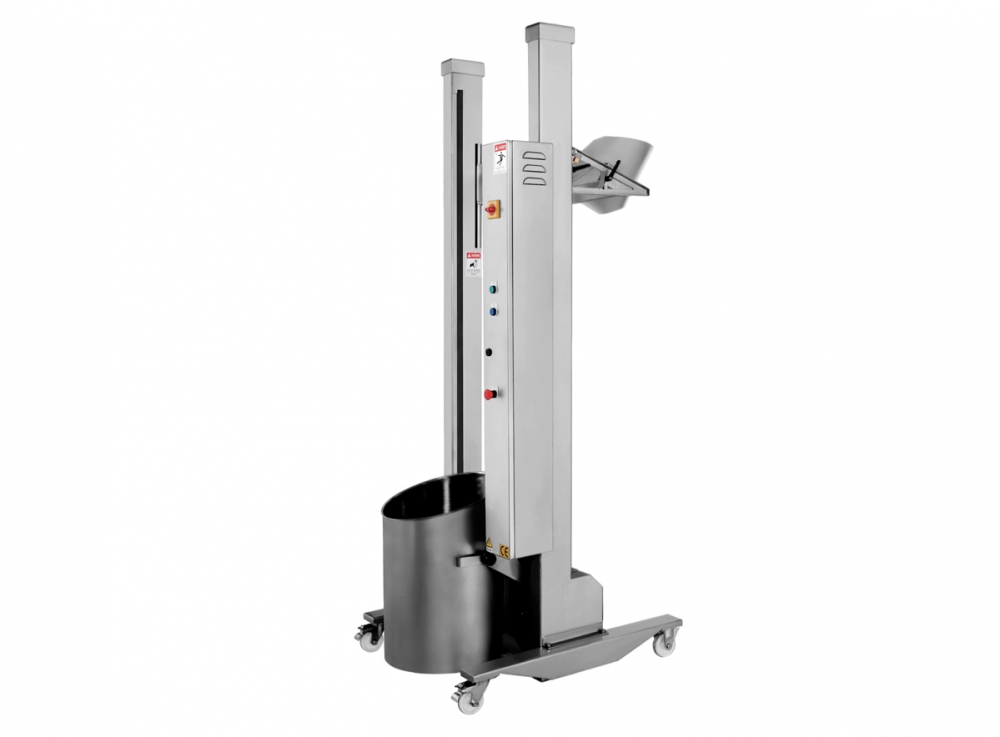

The CVC 1101C pre-feeding systems is pharmaceutical grade low profile tablet pre- feeders, designed with a streamline easy-to-clean hopper, that would accommodate both tablets and capsules. The system is a compactly designed with hopper bin lifting system to automatically elevate and deliver tablets or capsules from floor level to the hopper of the counter.
The CVC 1101C is primarily used with single counting system configurations.
Technical Specifications
| Hopper Capacity | 2.5 cu. ft. (70L) |
| Power source | 220V, 50/60 Hz, Single Phase |
| Power Consumption | 750 Watts (3.4 Amps at 220V) |
| Consumption Machine Dimensions | 1210mm x 912mm x 2743mm (L x W x H) |

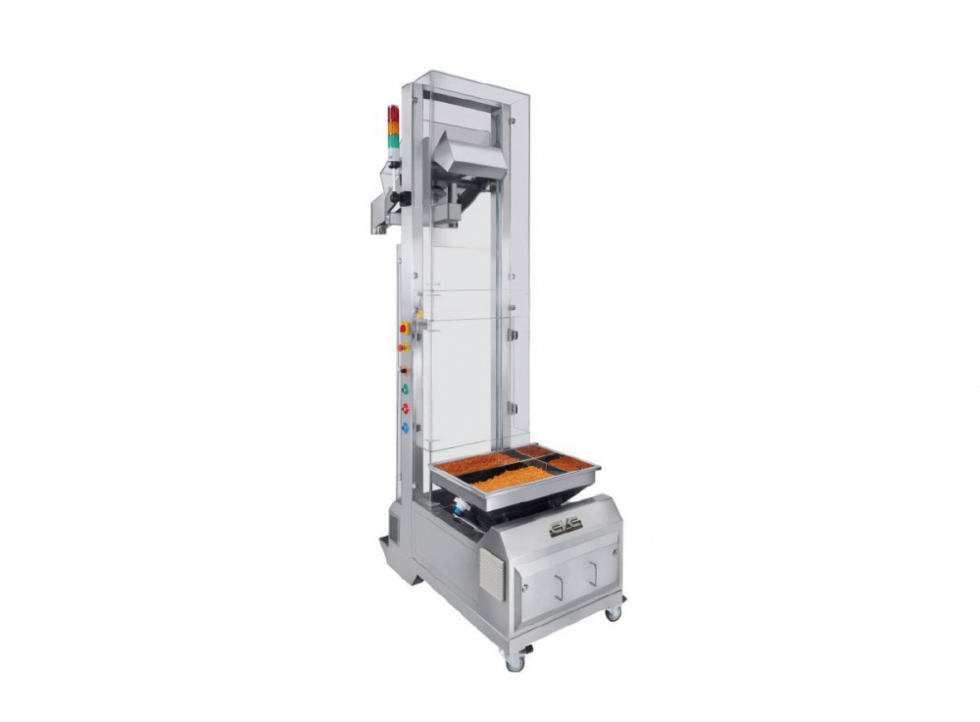

The CVC 1101E pre-feeding system is a pharmaceutical grade low profile tablet pre-feeder, designed with a streamline easy-to-clean hopper, that would accommodate both tablets and capsules. The system is a compactly designed with hopper bin lifting system to automatically elevate and deliver tablets or capsules from floor level to the hopper of the counter.
The CVC 1101E can be configured for single or dual head counting systems (depending on the counter layout).
Technical Specifications
| Productivity | Up to 20,000 PPM (subject to trial confirmation) |
| Applicable Size | Dia.: Ø⅛” to ؾ” (Ø3 to Ø20 mm) Length: ⅛” to 1¼” (3 to 30 mm) Width.: ⅛” to ¾” (3 to 20 mm) |
| Hopper Capacity | 50L (1.8 Cuft) |
| Power source | 220 V, 50/60 HZ, 1 PH |
| Power Consumption | 860 VA (4 Amp) |
| Consumption Machine Dimensions | 2’-3” x 5’-9” x 8’-7” (690 x 1,740 x 2,625 mm) (L x W x H |
| Machine Weight | 350 kg (772 lbs) |

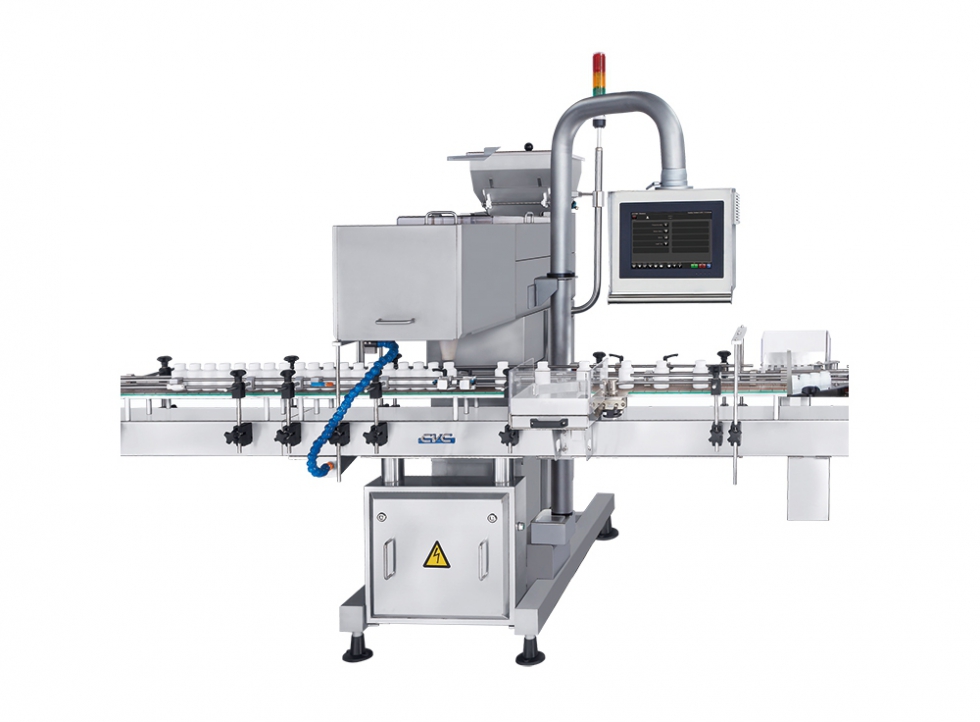

The CVC 1220C is an Electronic Channel Counter designed for high speed, highly accurate counting of tablets, capsules, and soft gels. The machine comes standard with an automatic dust compensation system, dual vacuum ports, product count verification, and reject. The 1220C can be setup to run one bottle using all 12 channels or two bottles using 6 channels for each bottle. Options include hopper level control with tower Lamp, upside down bottle sensor, static eliminator bar, channel blocker, and floor loaded tablet prefeeder.
Technical Specifications
| Productivity | up to 60-70 BPM with double discharge funnel (subject to trial confirmation) |
| Applicable Size | Product: Length: 2-30 mm (1⁄16″ to 1 1⁄4″) Width/Dia.: 2-20 mm (1⁄16″ to 3⁄4″) Bottle: Dia.: Ø30-120 mm (1 1/4” to 4 3/4”) Height: 40-200 mm (1 1⁄2″ to 7 3⁄4″) |
| Hopper Capacity | 35 L (1.24 Cuft) |
| Power source | 230 V, 50/60 HZ, 1 PH |
| Power Consumption | 725 VA (3.2 A) |
| Air Pressure | 6 bar (87 psi) |
| Air Consumption | 100 NL/min (3.6 CFM) |
| Machine Dimensions ( L x W x H ) | 680 x 1,780 x 1,870 mm (approx) (2′-3″ x 5′-10″ x 6′-2″) |
| Machine Weight | 475 kg (1,047 lbs) |
| Noise Level | 75-80 dB |

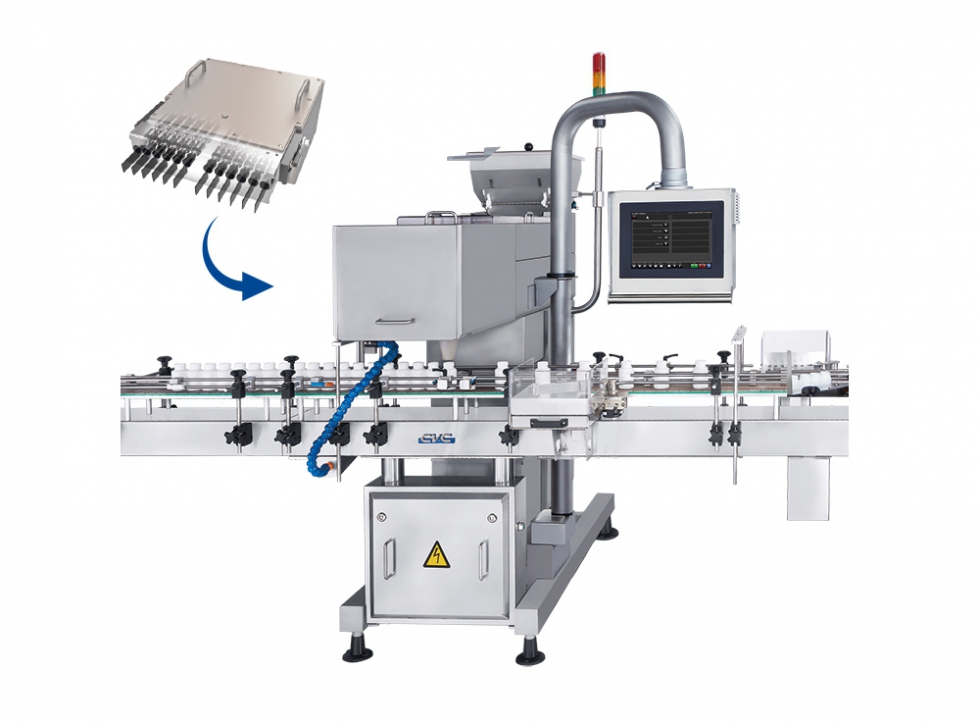

The CVC 1220CS is our newest Electronic Channel Counter designed for high speed, highly accurate counting of tablets, capsules, and soft gels. The system has been upgraded with servo- driven flaps to improve accuracy of pre-count functions.
In addition, the servo system adds to longevity of the assembly and reduce the requirement to replace pneumatically driven actuators.
Technical Specifications
| Productivity | up to 55±5 BPM with single discharge funnel / 85±5 BPM with double discharge funnel (subject to trial confirmation) |
| Applicable Size | Product: Length: 2-30 mm (1⁄16” to 1 1⁄4”) Width/Dia.: 2-20 mm (1⁄16” to3⁄4”) Bottle: Dia.: Ø30-120 mm (1 1⁄4” to 4 3⁄4”) Height: 40-200 mm (1 1⁄2” to 7 3⁄4”) |
| Hopper Capacity | 35 L (1.24 Cuft) |
| Power source | 230 V, 50/60 HZ, 1 PH |
| Power Consumption | 950 VA (4.2 A) |
| Air Pressure | 6 bar (87 psi) |
| Air Consumption | 25 NL/MIN. (1CFM) |
| Machine Weight | 475 kg (1,047 lbs) |
| Noise Level | 75-80 dB |

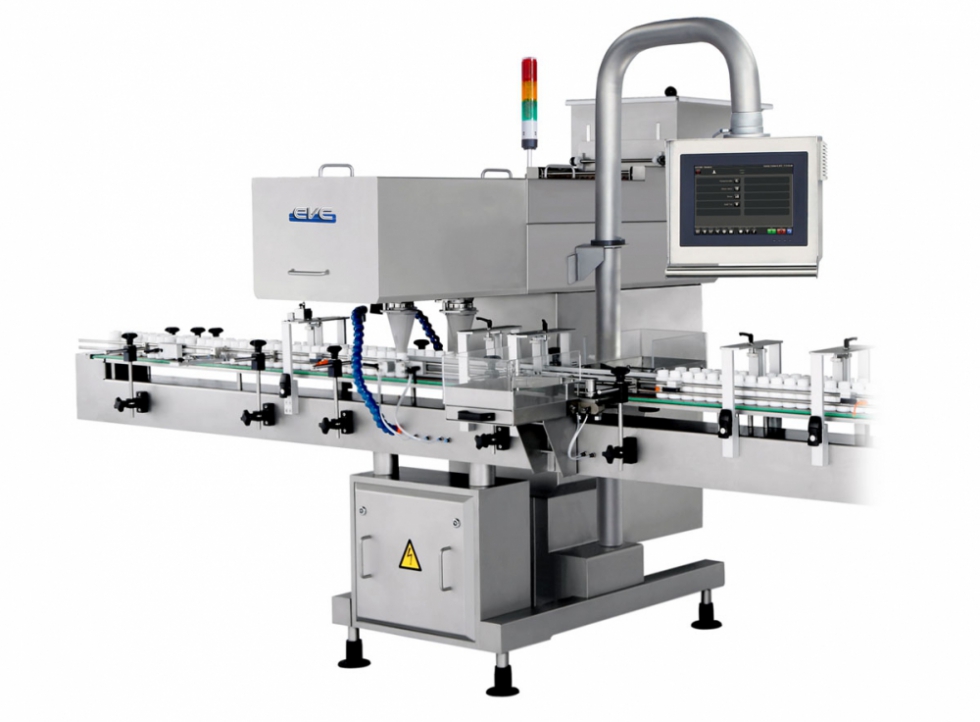

The CVC 1620-CS Tablet/Capsule Counter and Filler is designed for high speed, highly accurate counting of tablets, capsules, and soft gels. The system has been upgraded with servo-driven flaps.
The servo-driven flap system adds to longevity of the assembly and reduce the requirement to replace pneumatically driven actuators.
Technical Specifications
| Productivity | Up to 70 BPM with single insertion per head |
| Applicable Size | Tablet/Capsule: Length: ⅛” to 1⅛” (2mm – 30mm) Diameter: ⅛” to ¾” (2mm – 20mm) |
| Hopper Capacity | 42 L |
| Power source | 220 V, 50/60 Hz, 1 Phase |
| Power Consumption | 1100 VA (4.8 Amp) |
| Air Pressure | Minimum 87 psi (6 bar) (ISO 8573-1) |
| Air Consumption | 3.6 CFM (100 NL/min.) |
| Consumption Machine Dimensions | 2′-3″ x 5′-8″ x 6′-2″ (680 x 1780 x 1870 mm) |
| Bottle Height | Height: 1¾” to 7⅞” (45mm to 200mm) |
| Bottle Diameter | Diameter: 1⅛” to 4¾” (30mm – 120mm) |
| Machine Weight | 500 lbs (1102 kg) |
| Noise Level | ≤ 80 dB |
