Sleevers
Compact, Mid-Speed Cartoner with Exceptional Versatility

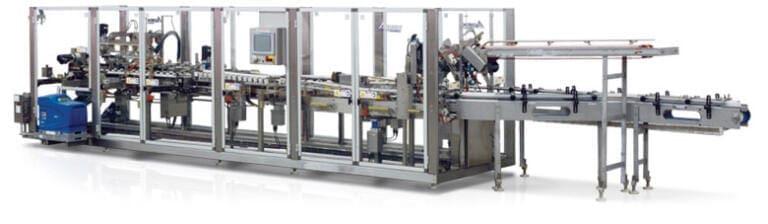

The Vantra IM cartoner combines versatility, efficiency, and a compact footprint, making it ideal for mid-speed intermittent motion cartoning. Handling trays and cartons on a single platform, Vantra integrates seamlessly with multiple infeed types, enabling precise and gentle product handling for cans, bottles, pouches, and flow-wrapped products.
Specifications:
Speed
Up to 300 cartons/minute;
Up to 800 products/minute (pitch, product and sleeve design dependent)
Min. Carton Size
4.5” (114.3 mm) x 1.25” (31.75 mm)
x 5.5” (139.7 mm)*
Max Carton Size
10.5” (266.7 mm) x 4.25” (107.95 mm)
x 12” (304.8 mm)*
Magazine
6′ (1828.8 mm) standard;
Shorter or longer capacities optional
Drive
Servo motors
Electrical
Allen Bradley programmable logic controller or per project specification;
Touch screen operator interface panel;
NEMA12 wiring and enclosures;
NEMA 4 or 4X wiring and enclosures (optional);
Power
230/480 V, 50/60 HZ, 3 PH
Single drop;
Other power sources available
Air
80–100 PSI (5.5-6.9 bar)
* Note: Measurements indicate Direction of Travel x Vertical x Across Machine
