SECUREFILL Series
The SECUREFILL series is our high-level containment capsule-filling machine range.
Models
The SECUREFILL series is our high-level containment capsule-filling machine range. It’s designed for filling capsules with highly potent drugs, and complies with occupational exposure band (OEB) up to level 4. Built with operator safety in mind, these machines are equipped for filling capsules with oncological, hormonal, biopharmaceutical, antiviral formulations, and other formulations containing highly potent active pharmaceutical ingredients (HPAPIs).

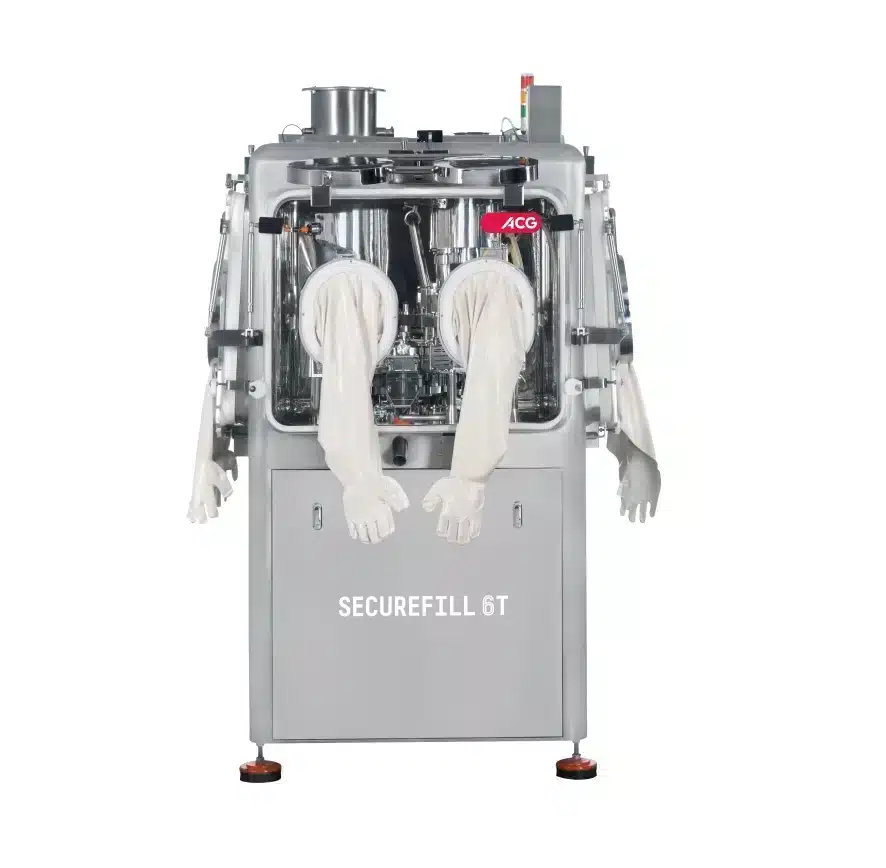

SECUREFILL 6T works best for small production batches.
Applications
Containment filling of pellets, tablets, micro-tablets, capsules, soft gels, and their combinations in capsules
| Features | Benefits | |
|---|---|---|
| Designed as a monoblock structure of SS316L containing HEPA filters, a rapid transfer port (RTP), glove ports, and accurate dosing mechanisms maintained in a negative pressure environment |  |
Ensures complete containment, thereby avoiding operator contact within OEL range 1-10 µg/m³ |
| Provision for contained charging and discharging | |
Integrated containment for upstream and downstream processes |
| Wet-in-place system to ensure wetting of all suspended particles in the pharma zone | |
Protects the operator and the operational environment from formulation residues – and enables easy cleaning |
| Certified for highly potent and cytotoxic drugs requiring OEB up to level 4 | |
Supports the production of life-saving drugs that contain HPAPIs, such as oncology products |
| Can be integrated with check-weighers, metal detectors and de-dusters under containment conditions | |
Ensures safe production of high-quality capsules |
Technical specifications
| Capsule size | 00 – 5 |
| Maximum speed | 6,000 capsules/hr |
| OEL | 1-10 µg/m3 |
The SECUREFILL series is our high-level containment capsule-filling machine range. It’s designed for filling capsules with highly potent drugs, and complies with occupational exposure band (OEB) up to level 4. Built with operator safety in mind, these machines are equipped for filling capsules with oncological, hormonal, biopharmaceutical, antiviral formulations, and other formulations containing highly potent active pharmaceutical ingredients (HPAPIs).

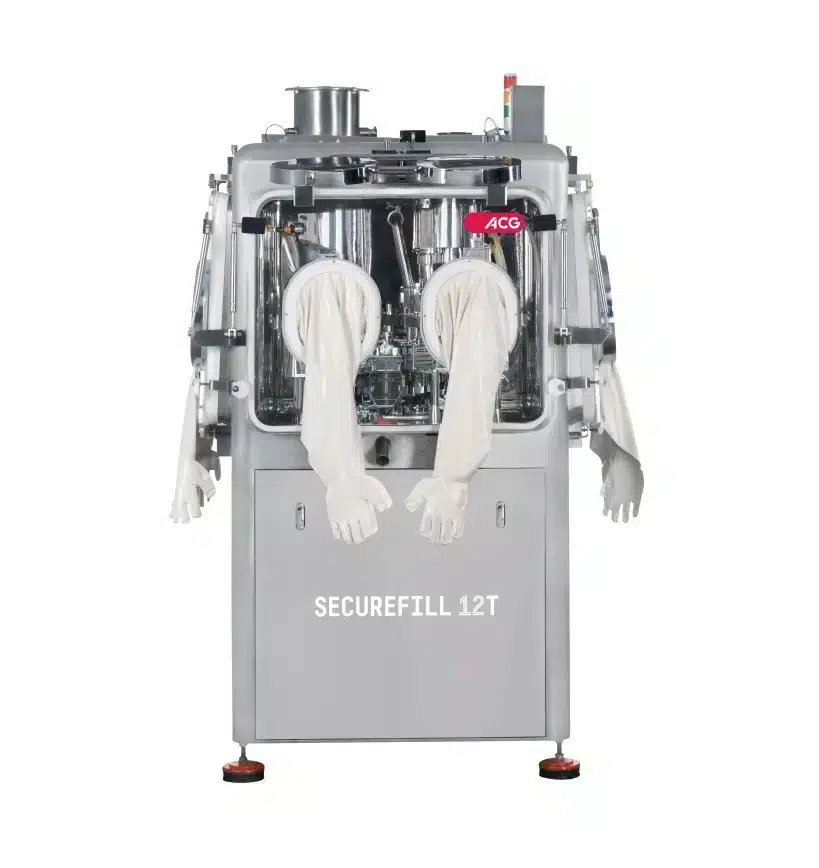

SECUREFILL 12T works best for small to medium-size production batches.
Applications
Containment filling of pellets, tablets, micro-tablets, capsules, soft gels, and their combinations in capsules
| Features | Benefits | |
|---|---|---|
| Designed as a monoblock structure of SS316L containing HEPA filters, a rapid transfer port (RTP), glove ports, and accurate dosing mechanisms maintained in a negative pressure environment | |
Ensures complete containment, thereby avoiding operator contact within OEL range 1-10 µg/m³ |
| Provision for contained charging and discharging | |
Integrated containment for upstream and downstream processes |
| Wet-in-place system to ensure wetting of all suspended particles in the pharma zone | |
Protects the operator and the operational environment from formulation residues – and enables easy cleaning |
| Certified for highly potent and cytotoxic drugs requiring OEB up to level 4 | |
Supports the production of life-saving drugs that contain HPAPIs, such as oncology products |
| Can be integrated with check-weighers, metal detectors and de-dusters under containment conditions | |
Ensures safe production of high-quality capsules |
Technical specifications
| Capsule size | 00 – 5 |
| Maximum speed | 12,000 capsules/hr |
| OEL | 1-10 µg/m3 |
The SECUREFILL series is our high-level containment capsule-filling machine range. It’s designed for filling capsules with highly potent drugs, and complies with occupational exposure band (OEB) up to level 4. Built with operator safety in mind, these machines are equipped for filling capsules with oncological, hormonal, biopharmaceutical, antiviral formulations, and other formulations containing highly potent active pharmaceutical ingredients (HPAPIs).
SECUREFILL 25T works best for small to medium-size production batches.
Applications
Containment filling of pellets, tablets, micro-tablets, capsules, soft gels, and their combinations in capsules
Features |
Benefits |
|
|---|---|---|
| Designed as a monoblock structure of SS316L containing HEPA filters, a rapid transfer port (RTP), glove ports, and accurate dosing mechanisms maintained in a negative pressure environment | |
Ensures complete containment, thereby avoiding operator contact within OEL range 1-10 µg/m³ |
| Provision for contained charging and discharging | |
Integrated containment for upstream and downstream processes |
| Wet-in-place system to ensure wetting of all suspended particles in the pharma zone | |
Protects the operator and the operational environment from formulation residues – and enables easy cleaning |
| Certified for highly potent and cytotoxic drugs requiring OEB up to level 4 | |
Supports the production of life-saving drugs that contain HPAPIs, such as oncology products |
| Can be integrated with check-weighers, metal detectors and de-dusters under containment conditions | |
Ensures safe production of high-quality capsules |
Technical specification |
|||
| Capsule size | 00 – 5 | ||
| Maximum speed | 25,000 capsules/hr | ||
| OEL | 1-10 µg/m3 | ||
The SECUREFILL series is our high-level containment capsule-filling machine range. It’s designed for filling capsules with highly potent drugs, and complies with occupational exposure band (OEB) up to level 4. Built with operator safety in mind, these machines are equipped for filling capsules with oncological, hormonal, biopharmaceutical, antiviral formulations, and other formulations containing highly potent active pharmaceutical ingredients (HPAPIs).

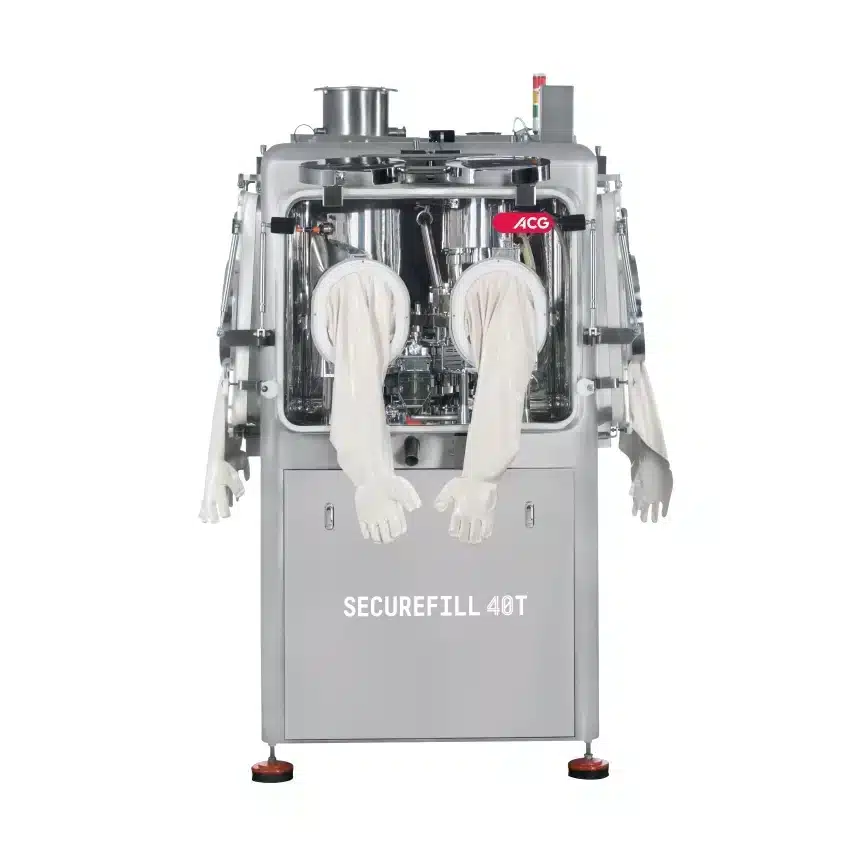

SECUREFILL 40T works best for medium-size to large production batches.
Applications
Containment filling of pellets, tablets, micro-tablets, capsules, soft gels, and their combinations in capsules
| Features | Benefits | |
|---|---|---|
| Designed as a monoblock structure of SS316L containing HEPA filters, a rapid transfer port (RTP), glove ports, and accurate dosing mechanisms maintained in a negative pressure environment | |
Ensures complete containment, thereby avoiding operator contact within OEL range 1-10 µg/m3 |
| Provision for contained charging and discharging | |
Integrated containment philosophy for upstream and downstream processes. |
| Wet-in-place system to ensure wetting of all suspended particles in the pharma zone | |
Protects the operator and the operational environment from formulation residues – and enables easy cleaning |
| Certified for highly potent and cytotoxic drugs requiring OEB up to 4 | |
Supports the production of life-saving drugs that contain HPAPIs, such as oncology products |
| Can be integrated with check-weighers, metal detectors and de-dusters under containment conditions | |
Ensures safe production of high-quality capsules |
Technical specifications
| Capsule size | 00 – 5 |
| Maximum speed | 40,000 capsules/hr |
| OEL | 1-10 µg/m3 |
