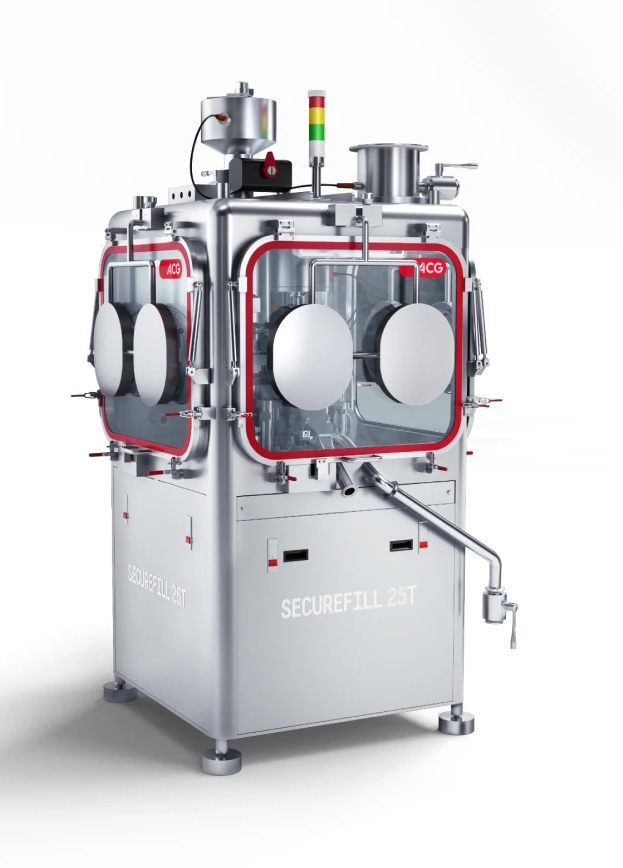

SECUREFILL 25T
About the SECUREFILL 25T
The SECUREFILL series is our high-level containment capsule-filling machine range. It’s designed for filling capsules with highly potent drugs, and complies with occupational exposure band (OEB) up to level 4. Built with operator safety in mind, these machines are equipped for filling capsules with oncological, hormonal, biopharmaceutical, antiviral formulations, and other formulations containing highly potent active pharmaceutical ingredients (HPAPIs).
SECUREFILL 25T works best for small to medium-size production batches.
Applications
Containment filling of pellets, tablets, micro-tablets, capsules, soft gels, and their combinations in capsules
Features |
Benefits |
|
|---|---|---|
| Designed as a monoblock structure of SS316L containing HEPA filters, a rapid transfer port (RTP), glove ports, and accurate dosing mechanisms maintained in a negative pressure environment |  |
Ensures complete containment, thereby avoiding operator contact within OEL range 1-10 µg/m³ |
| Provision for contained charging and discharging | |
Integrated containment for upstream and downstream processes |
| Wet-in-place system to ensure wetting of all suspended particles in the pharma zone | |
Protects the operator and the operational environment from formulation residues – and enables easy cleaning |
| Certified for highly potent and cytotoxic drugs requiring OEB up to level 4 | |
Supports the production of life-saving drugs that contain HPAPIs, such as oncology products |
| Can be integrated with check-weighers, metal detectors and de-dusters under containment conditions | |
Ensures safe production of high-quality capsules |
Technical specification |
|||
| Capsule size | 00 – 5 | ||
| Maximum speed | 25,000 capsules/hr | ||
| OEL | 1-10 µg/m3 | ||
Also Available In
Model |
Maximum speed |
|---|---|
| SECUREFILL 6T | 6,000 capsules/hr |
| SECUREFILL 12T | 12,000 capsules/hr |
| SECUREFILL 25T | 25,000 capsules/hr |
| SECUREFILL 40T | 40,000 capsules/hr |
