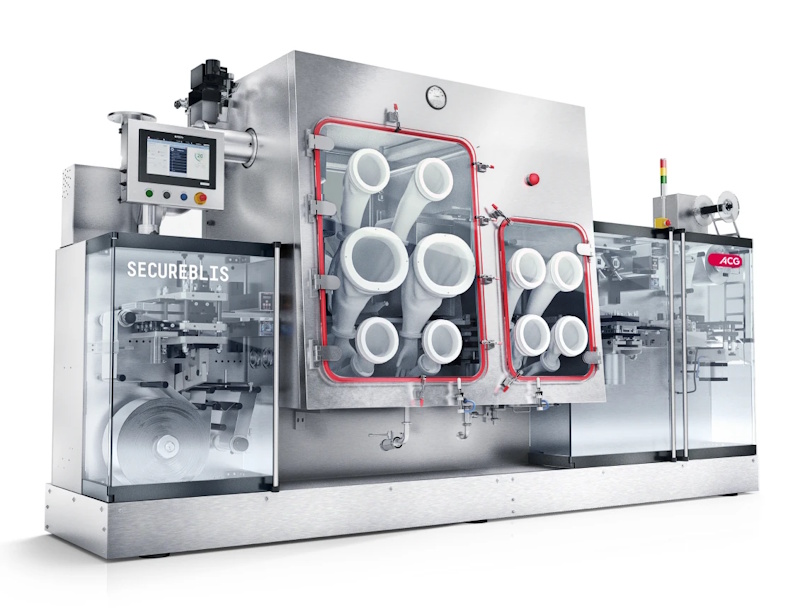

SECUREBLIS MINI
About the SECUREBLIS MINI
A containment solution for drug products that belong to the highly potent active pharmaceutical ingredient (HPAPI) category, SECUREBLIS MINI is designed specifically to comply with Operational Exposure Band (OEB) 3, ensuring operators’ utmost safety.
Applications
Blister packaging of solid dosage products such as tablets, hard capsules and soft gelatin capsules
Features |
Benefits |
|
|---|---|---|
| The feeding and sealing enclosure area operates under negative pressure |  |
HPAPIs are contained to aid OEB compliance |
| Glove ports at different locations | |
Easier manual interventions without breaching containment conditions |
| HEPA filters | |
Assured safety of the working environment and zero risk of product cross-contamination |
| Automated wet-in-place (WIP) system with strategically placed nozzles | |
Settles drug particles within the blister packaging area, covering all dead zones
Makes cleaning and changeover far safer, easier and quicker |
| Additional safety interlocks across the machine | |
Ensures machine operates under contained conditions |
| Easy integration with product loading system | |
Ensures contained and safe loading of tablets or capsules, enhancing operator safety |
Technical specification |
|||
| Forming cycle | Thermoforming | Up to 25 cycles/min | |
| Cold-forming | Up to 20 cycles/min | ||
| Forming depth | Thermoforming | Up to 12 mm | |
| Cold-forming | Up to 9 mm | ||
| Maximum forming area | 156 mm x 96 mm | ||
| Forming materials |
PVC, PVC/PVdC, Triplex (PVC/PE/PVdC), cold-form foil (Alu) |
||
| Lidding materials | Push-through foil, child-resistant foil, peelable (paper) | ||
