Overwrapping Machinery
- Automated Carton Wrapping Machines
Marden Edwards design and manufacture carton overwrapping machines ranging from low-cost entry-level machinery to high-speed integrated systems.
- Bespoke Carton Wrapping Machines Solutions
Marden Edwards can design and manufacture bespoke wrapping machinery solutions to suit your needs. Whether your product is wrapped for presentation, multi packing or distribution purposes, Marden Edwards can provide a system tailored to meet your needs.
- Alternative Eco-friendly Wrapping Material Options
Marden Edwards overwrapping machines have the capacity to wrap cartons using alternative eco–friendly materials.

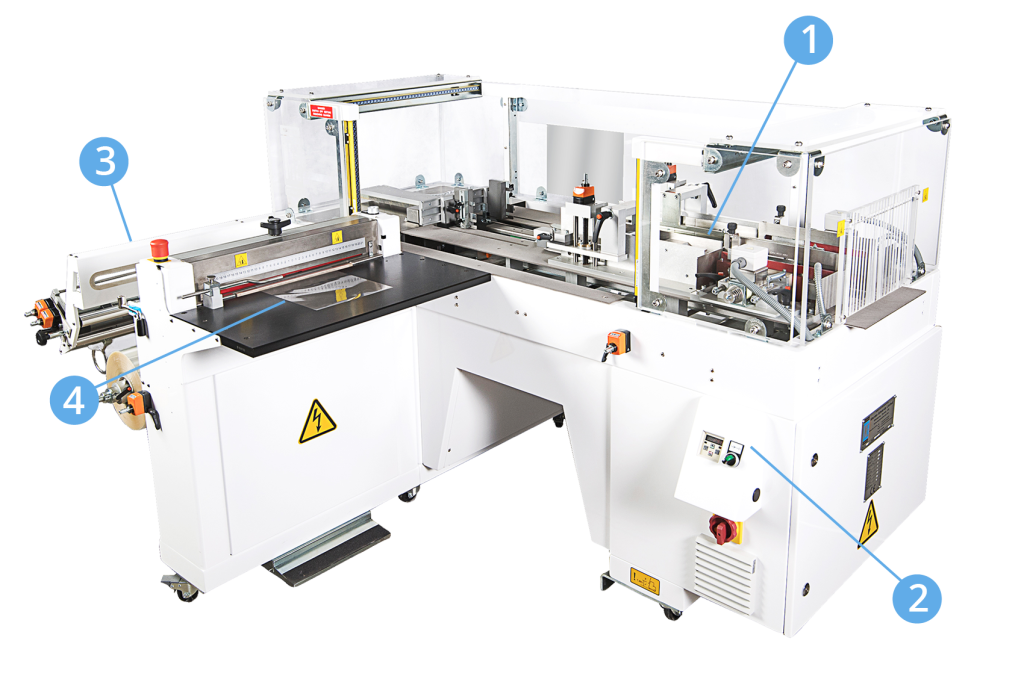

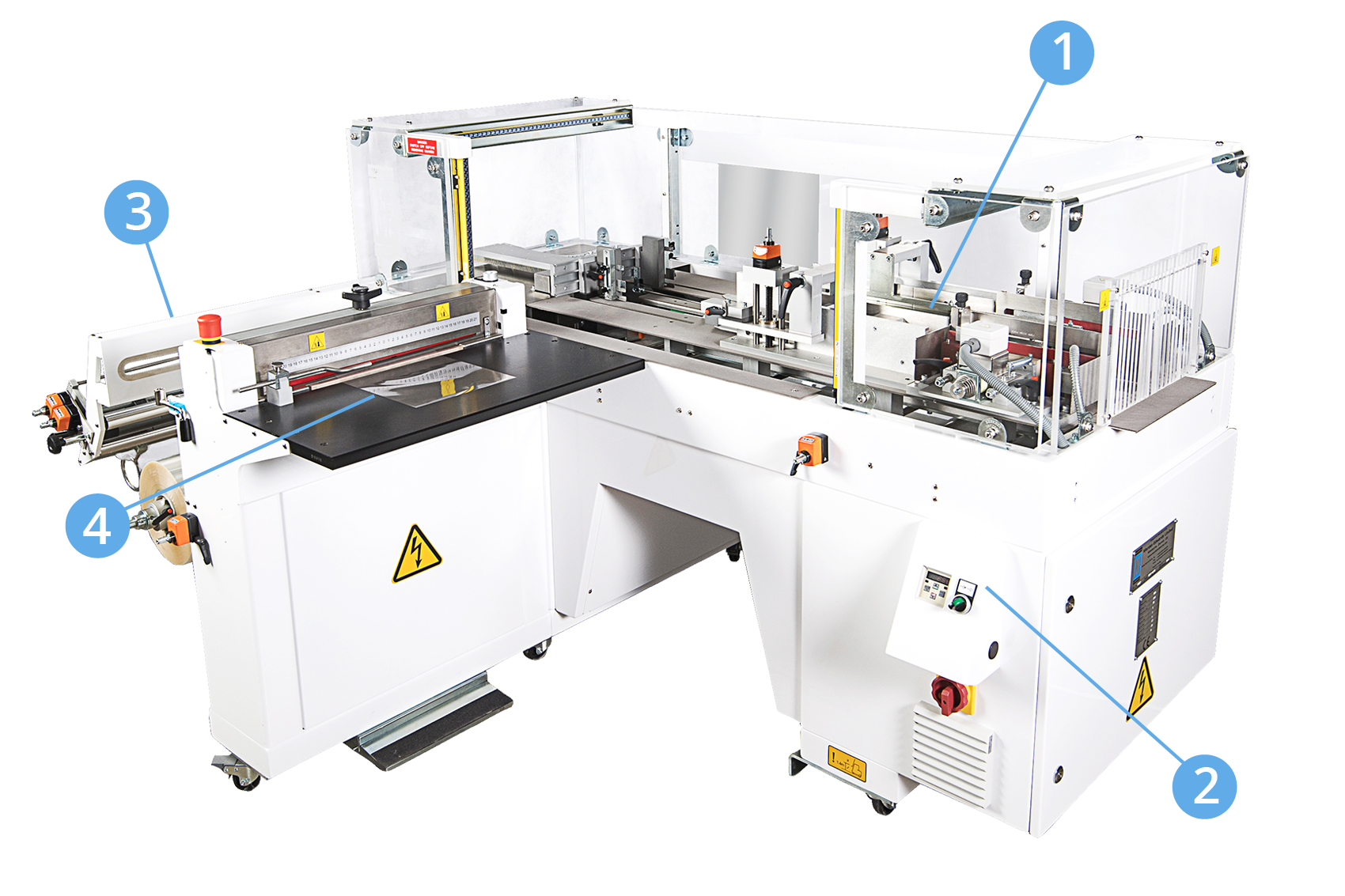

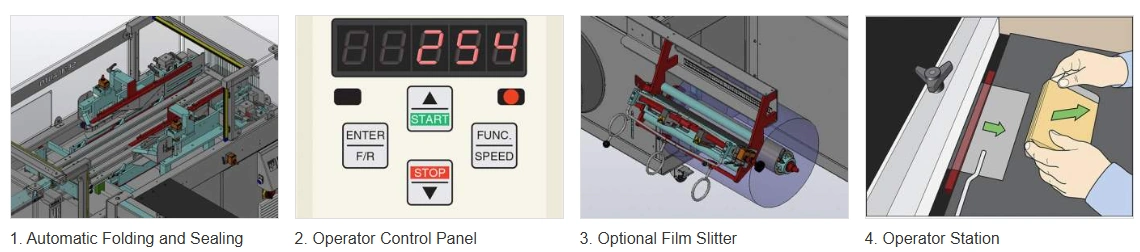

The Semi-Auto trailing edge seal overwrapping machine solution includes fully adjustable tooling capable of wrapping a large pack size range requiring only single-phase electrics, ideal for short batch work. Alternative Eco-friendly Wrapping Material Options.
Machine Specification
| Model | Output speed | a – pack length | b – pack width | c – pack height | |
| Semi-Auto Series | 10 per minute * | 60-300mm | 40-200mm | 25-100mm |  |
* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

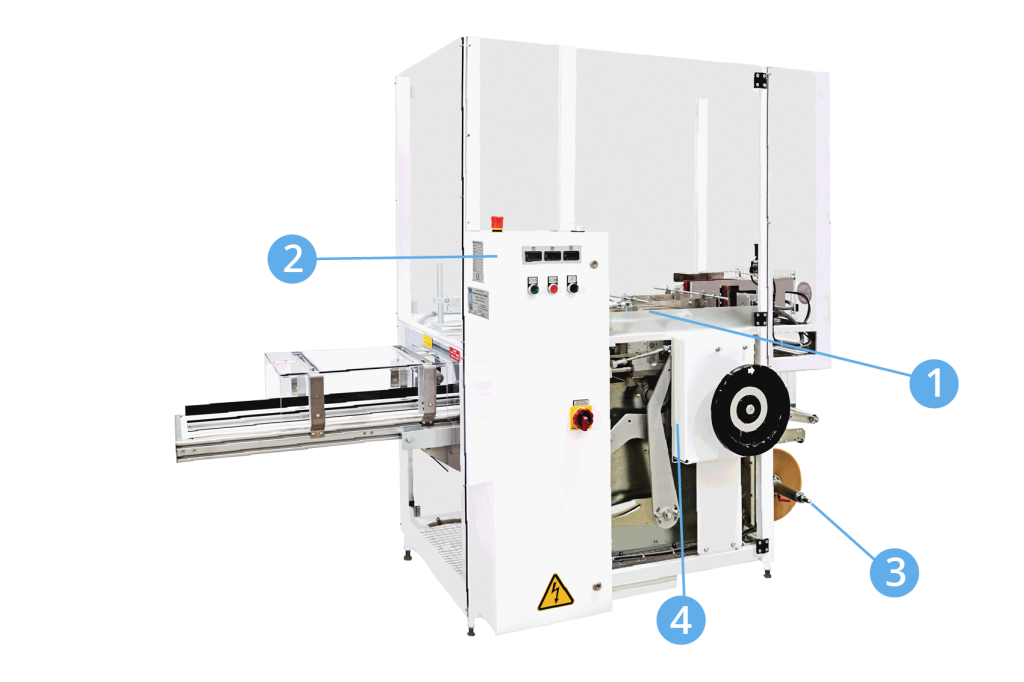

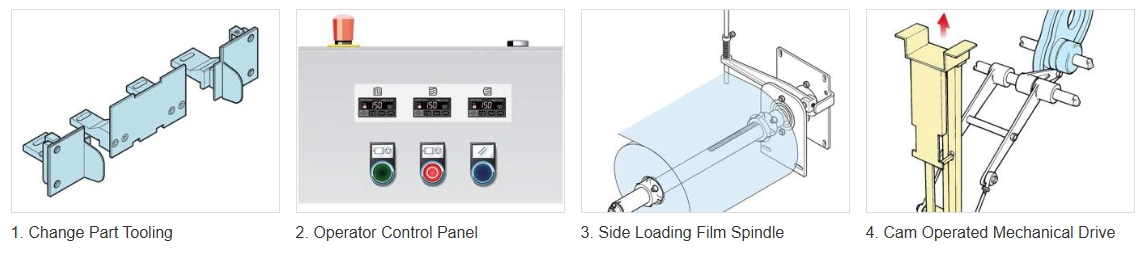

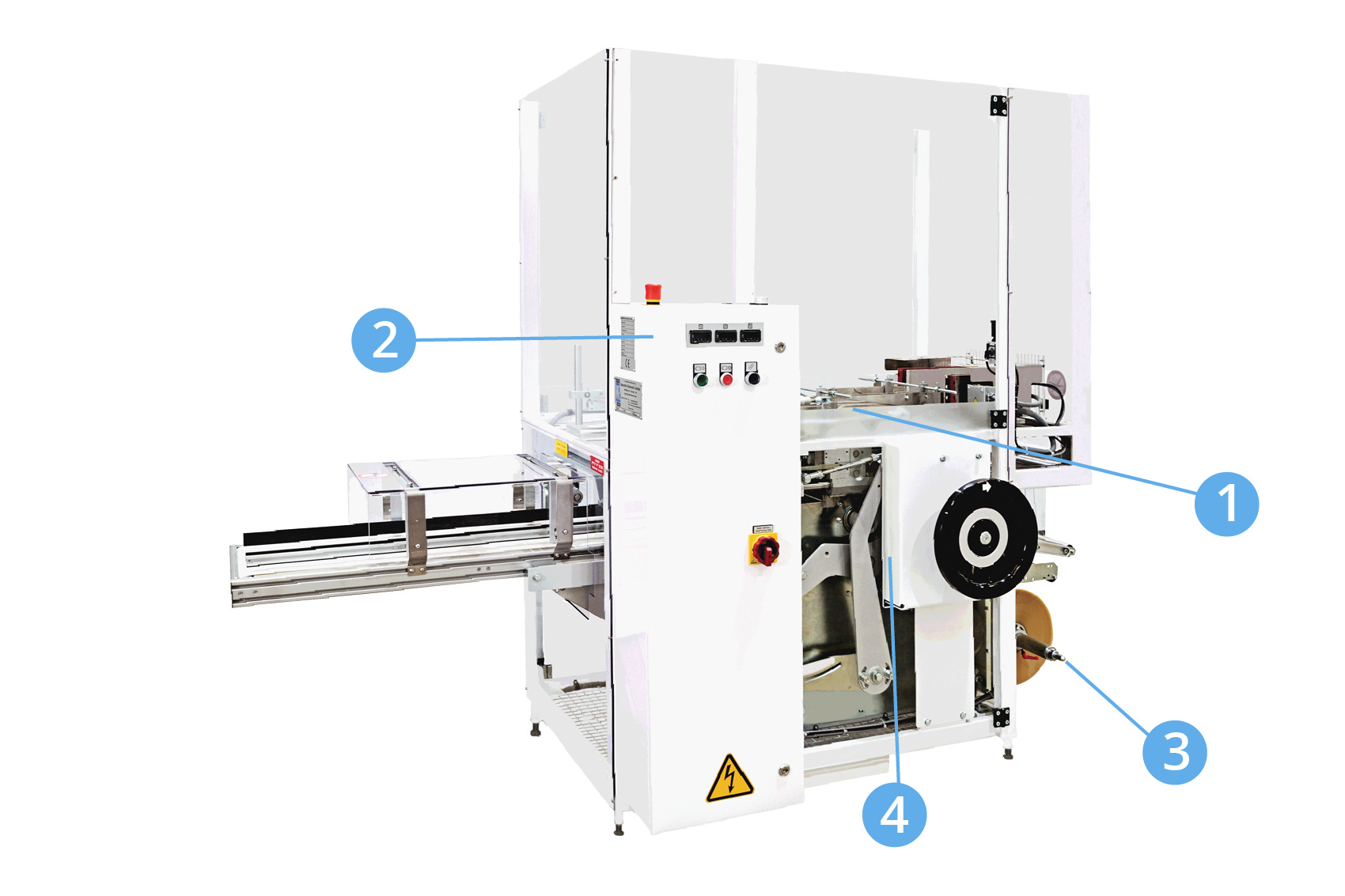

The Evo Series is designed as an entry level fully automatic base seal Overwrapping machine capable of wrapping speeds up to 45 packs per minute. With relay logic control system and mechanical operation combined to offer a low maintenance, highly efficient production machine. Alternative Eco-friendly Wrapping Material Options.
Machine Specification
| Model | Output Speed | a – pack length | b – pack length | c – pack length | |
| EVO Series | 45 per minute * | 50-305mm | 40-200mm | 15-125mm | |
* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

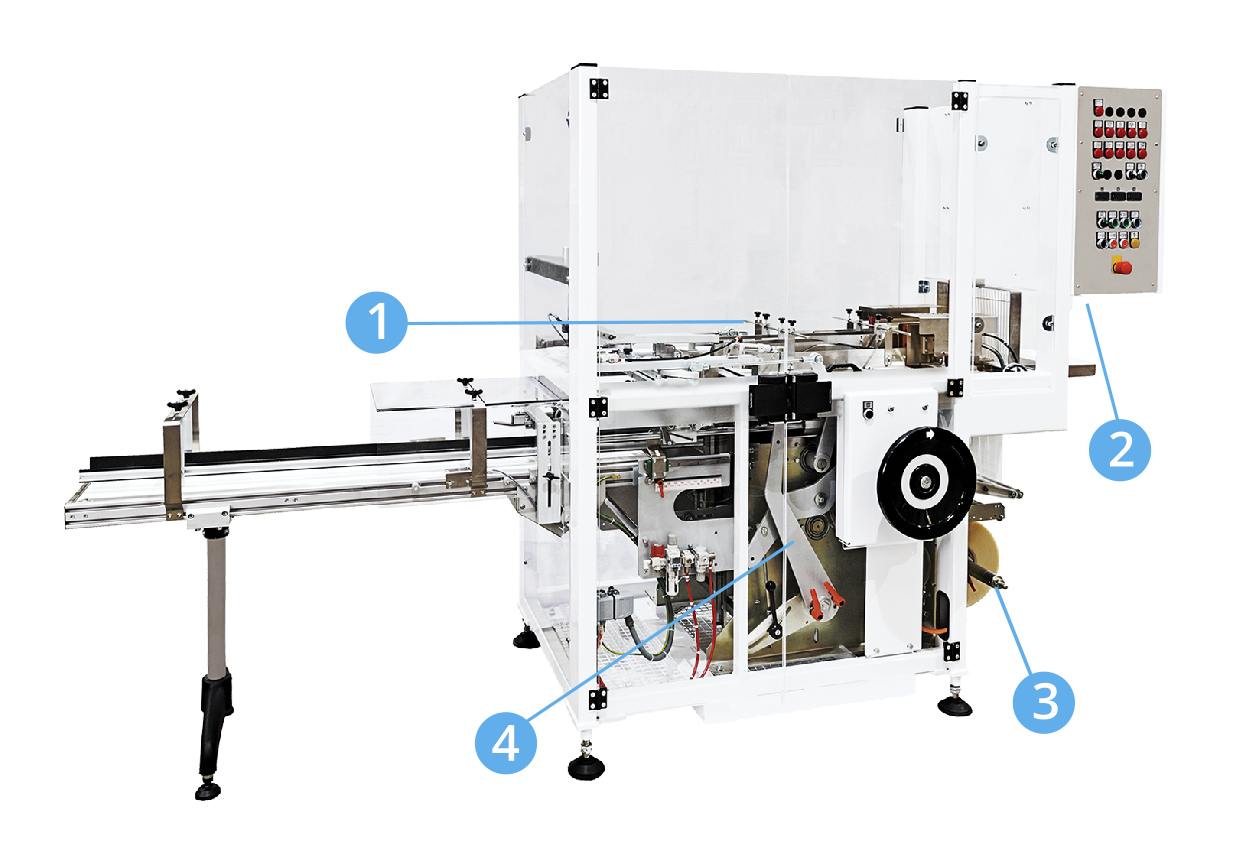

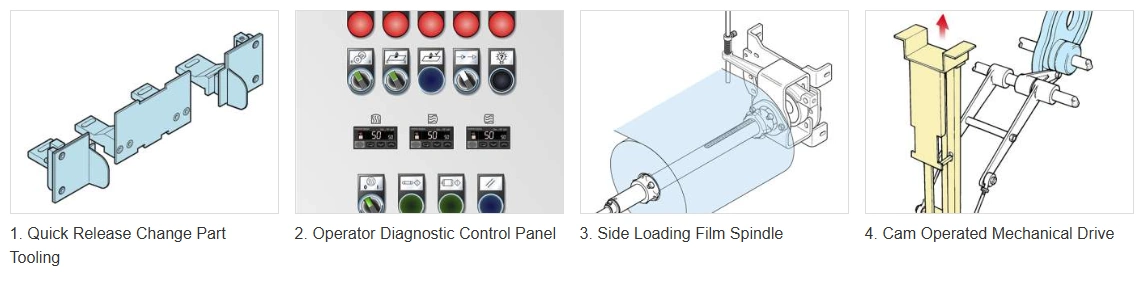

The B Series is a fully automatic base seal overwrapping machine, capable of wrapping speeds of up to 60 packs per minute.
Having a robust control system, operator diagnostic panel and, quick change tooling combined to offer a highly flexible and efficient production machine. Alternative Eco-friendly Wrapping Material Options.
Machine Specification
| Model | Output Speed | a – pack length | b – pack width | c – pack height | |
| B Series | 60 per minute * | 50-305mm | 25-250mm | 10-150mm | |
| B Wide | 40 per minute * | 50-450mm | 55-300mm | 10-150mm |
* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

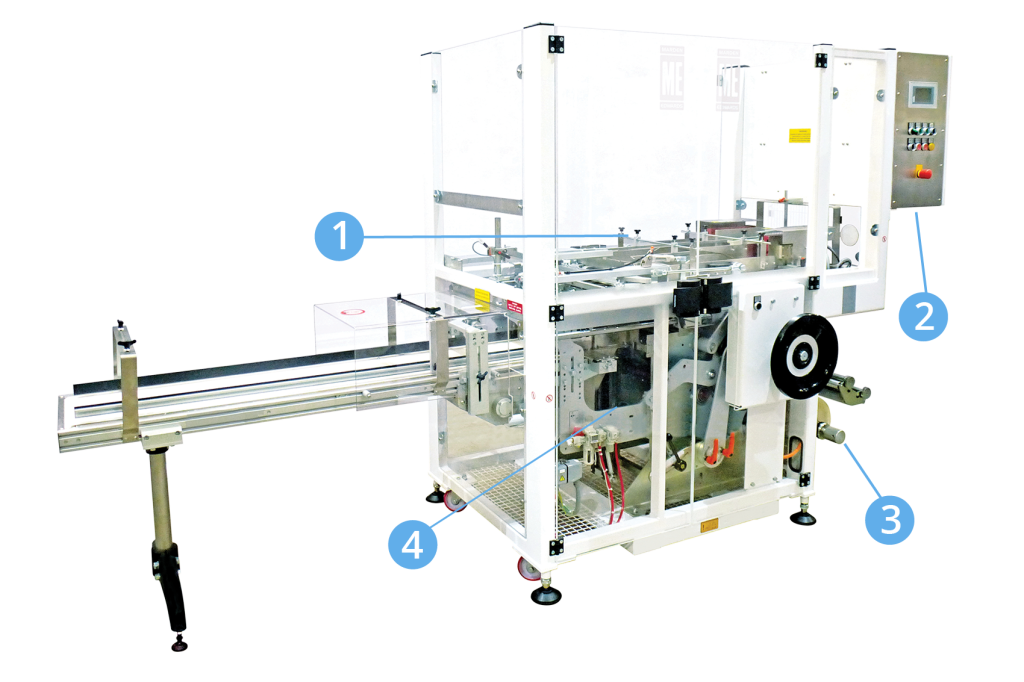

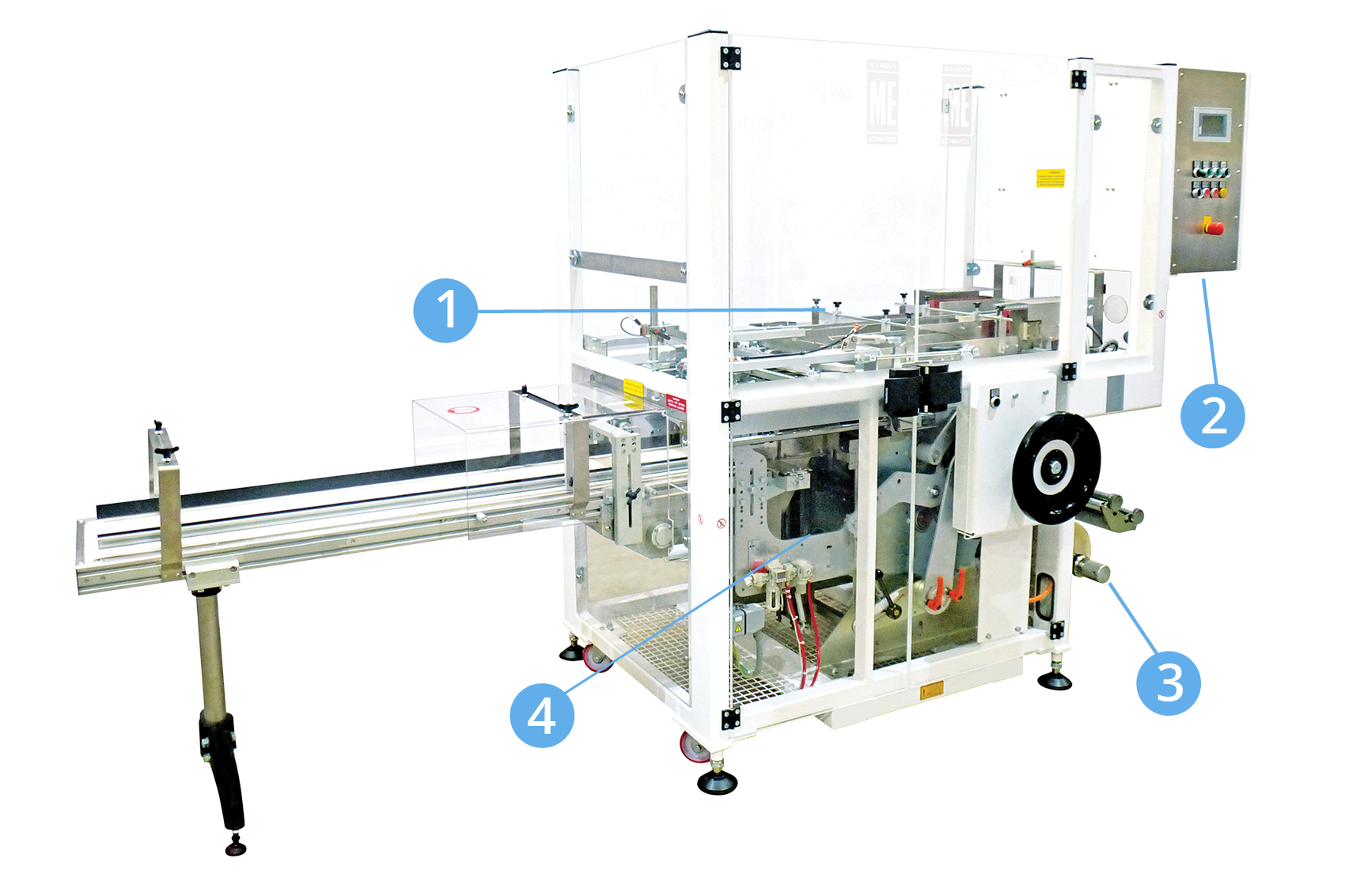

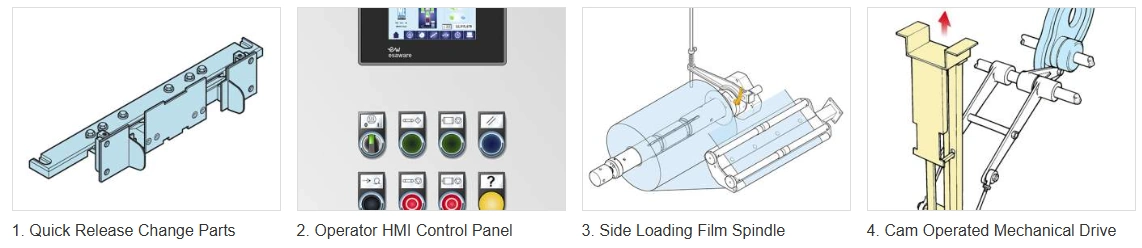

The BX Series is a fully automatic base seal overwrapping machine capable of wrapping speeds of up to 60 packs per minute.
With a PLC control system and HMI, quick change tooling combined to offer a highly flexible and efficient production machine. Alternative Eco-friendly Wrapping Material Options.
Machine Specification
| Model | Output Speed | a – pack length | b – pack width | c – pack height | |
| BX Series | 60 per minute * | 50-305mm | 25-250mm | 10-150mm | |
| BX Wide | 40 per minute * | 50-450mm | 55-300mm | 10-150mm |
* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

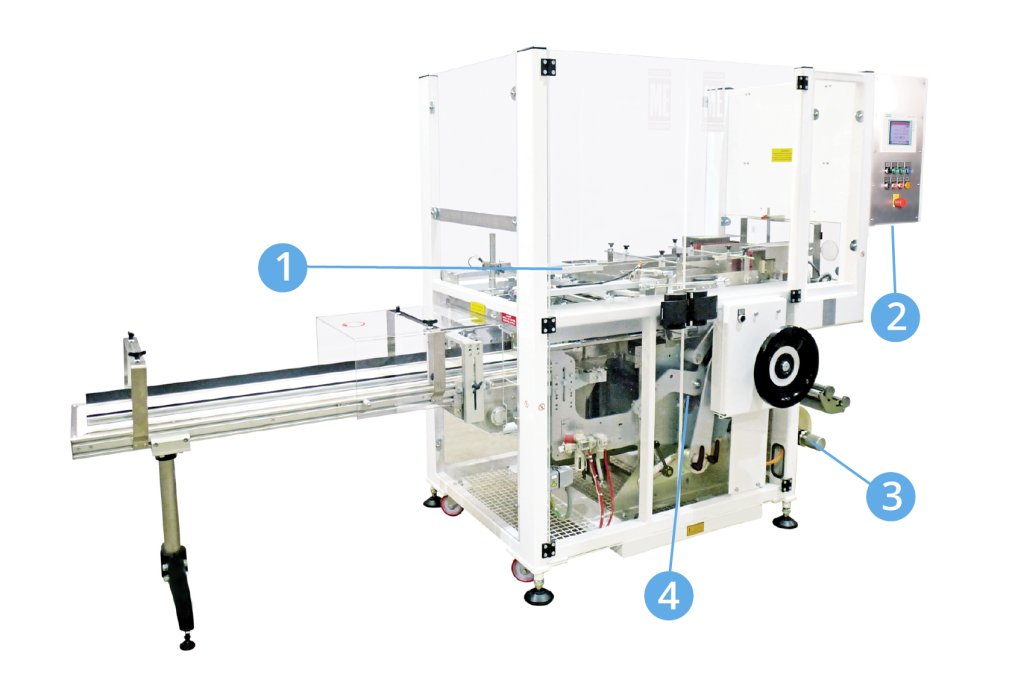

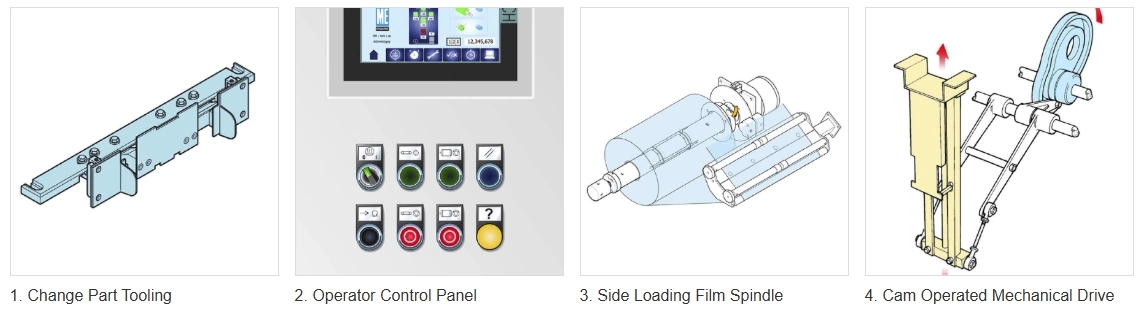

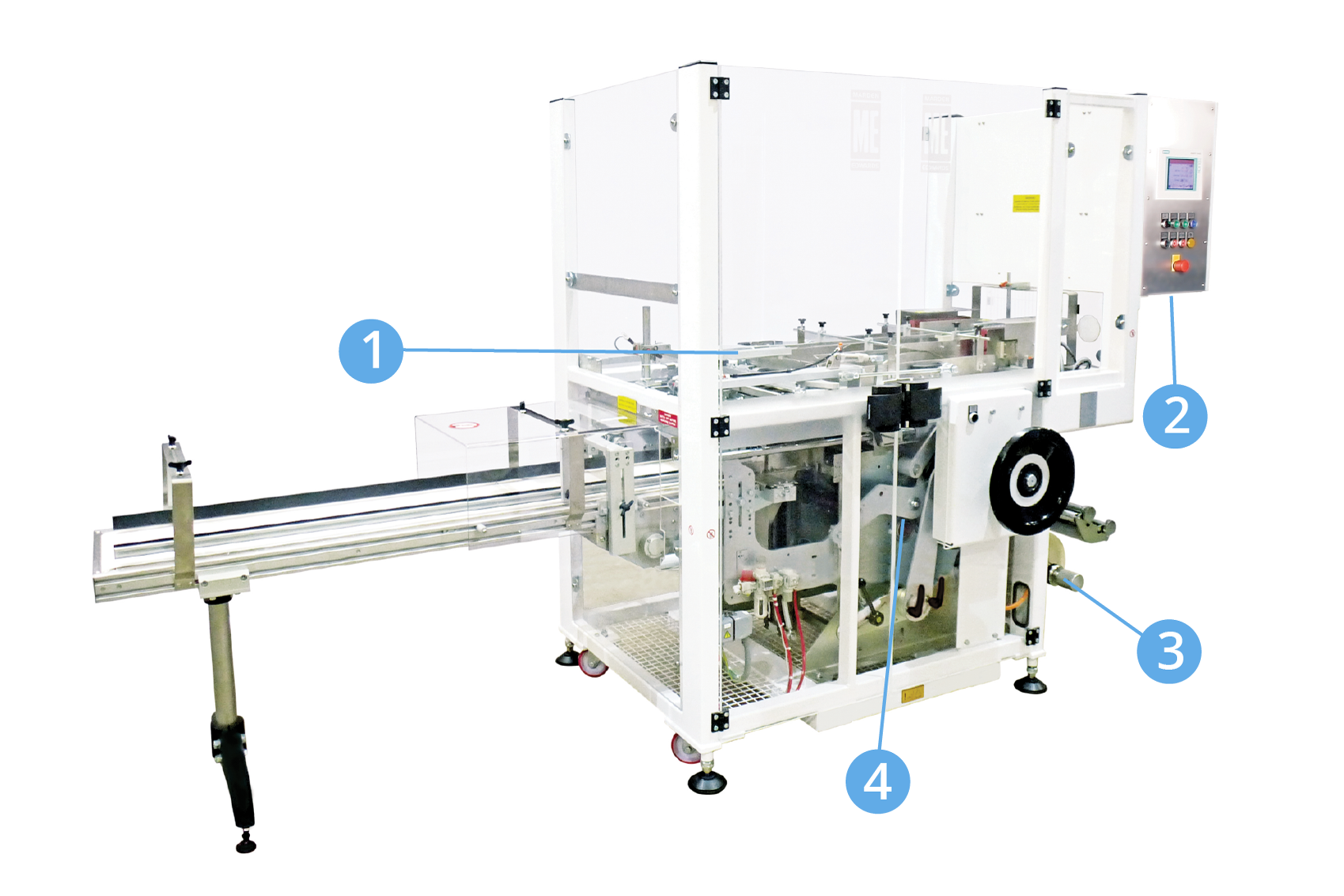

The LX Series is a fully automatic base seal overwrapping machine capable of wrapping speeds of up to 90 packs per minute.
With a PLC control system and HMI, quick change tooling, mechanical enhancements enable a wide range of applications and combine to offer a highly flexible and efficient production machine. Alternative Eco-friendly Wrapping Material Options.
Machine Specification
| Model | Output Speed | a – pack length | b – pack width | c – pack height | |
| LX series | 70 per minute * | 50-305mm | 25-250mm | 10-150mm | |
| LX wide | 40 per minute * | 50-450mm | 55-300mm | 10-150mm | |
| LXH | 90 per minute * | 50-305mm | 25-150mm | 10-70mm |
* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

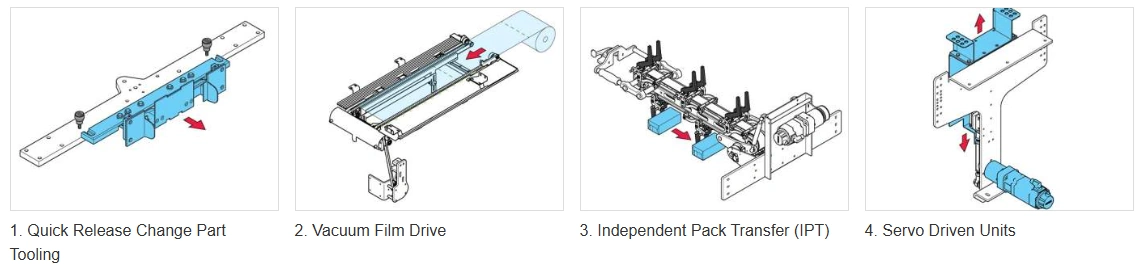

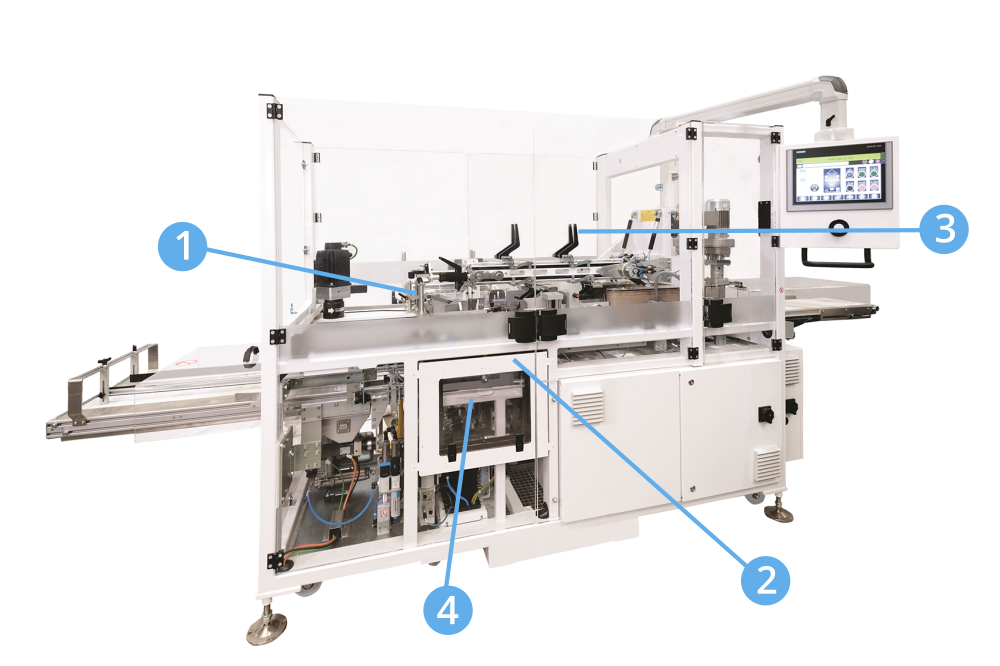

The ME 120B Series is a fully automatic base seal overwrapping machine, capable of wrapping speeds of up to 120 packs per minute.
Having a robust servo control system, operator diagnostic panel and quick-change tooling combine to offer a highly flexible and efficient large capacity production machine. Alternative Eco-friendly Wrapping Material Options.
Machine Specification
| Model | Output Speed | a – pack length | b – pack width | c – pack height | |
| ME 120B Series | 120 per minute * | 50-330mm | 28-190mm | 10-110mm | |
* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

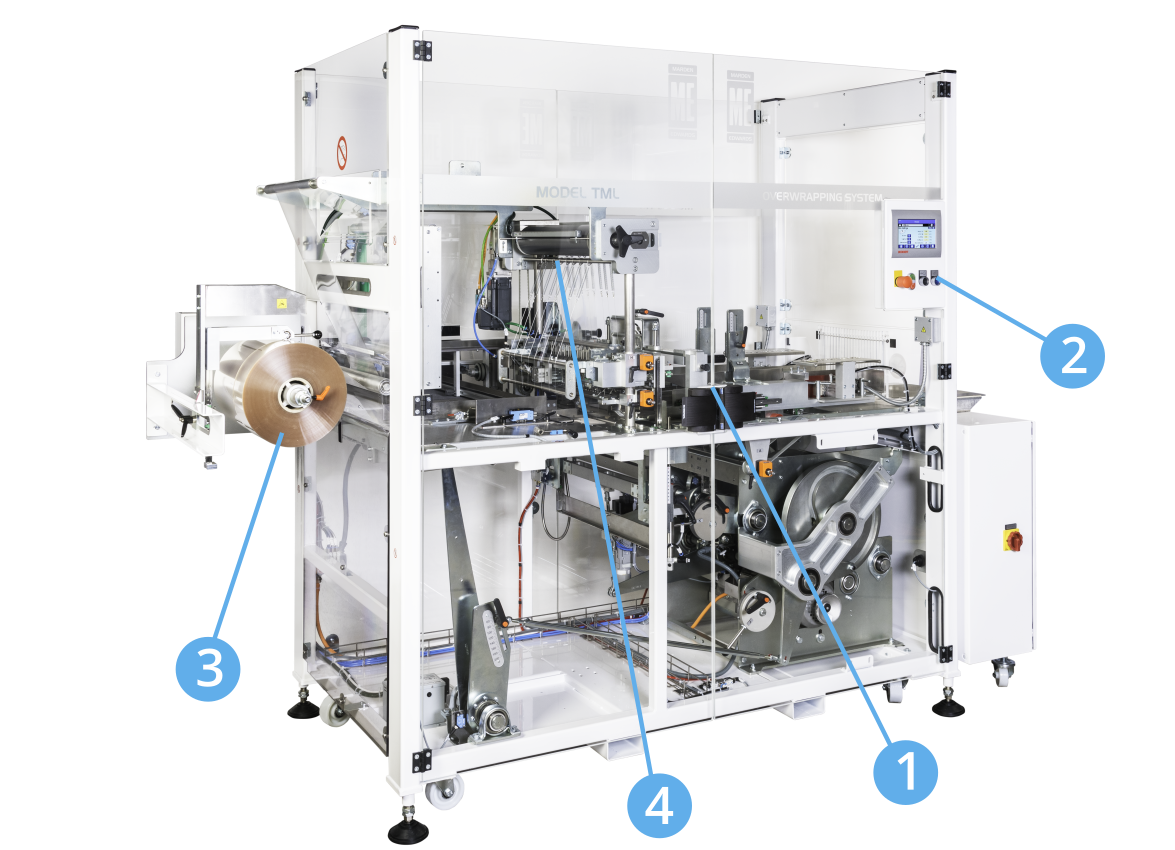

The TML series is a fully automatic trailing edge seal overwrapping machine capable of wrapping speeds of up to 40 packs per minute.
With a PLC control system, simple and fast pack size changeover combine to offer flexible and efficient carton wrapping machine solution. Alternative Eco-friendly Wrapping Material Options.
Machine Specification
| Model | Output Speed | a – pack length | b – pack width | c – pack height | |
| TML Series | 40 per minute * | 45-300mm | 37-200mm | 20-100mm | |
* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

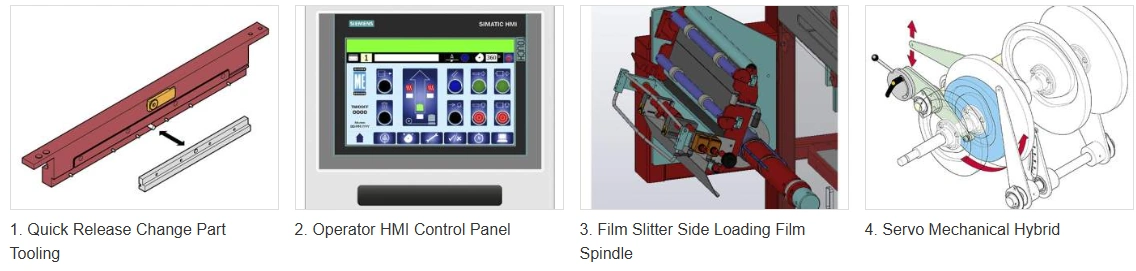

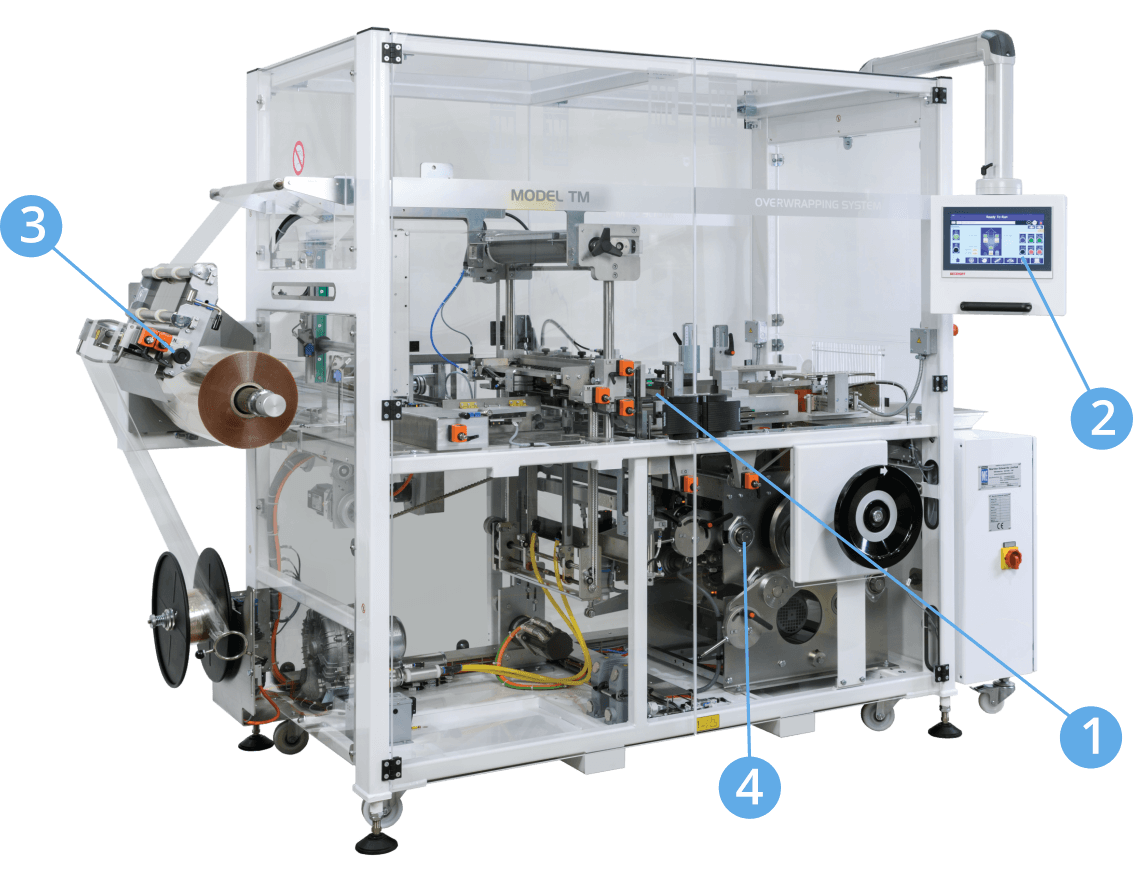

The TM Series is a fully automatic trailing edge seal overwrapping machine capable of wrapping speeds of up to 60 packs per minute.
With a PLC control system, HMI, hybrid Servo and Mechanical operation, quick change tooling combined to offer a highly flexible and efficient production machine. Alternative Eco-friendly Wrapping Material Options.
Machine Specification
| Model | Output Speed | a – pack length | b – pack width | c – pack height | |
| TM Series | 60 per minute * | 45-300mm | 40-200mm | 15-125mm | |
* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

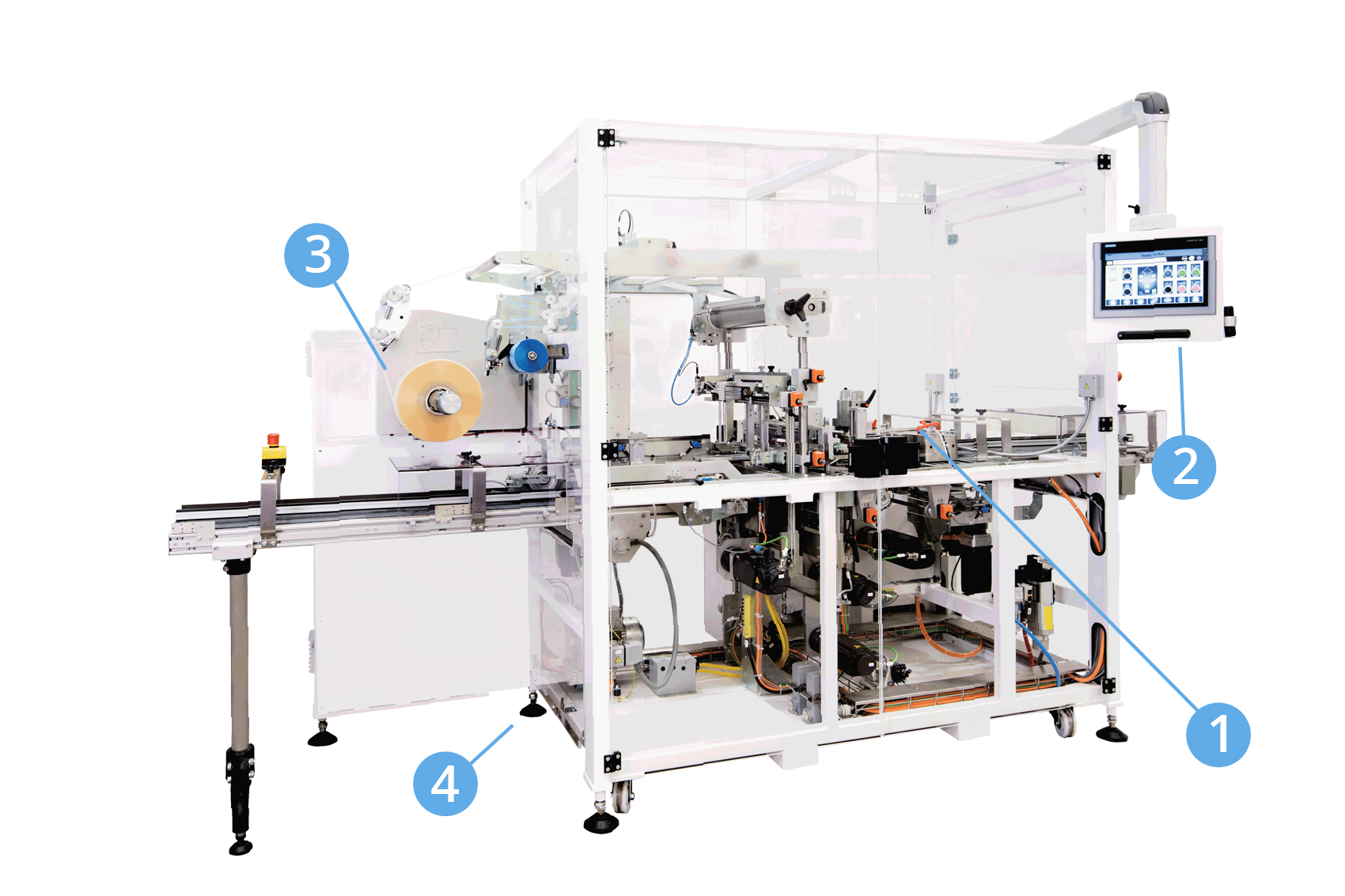

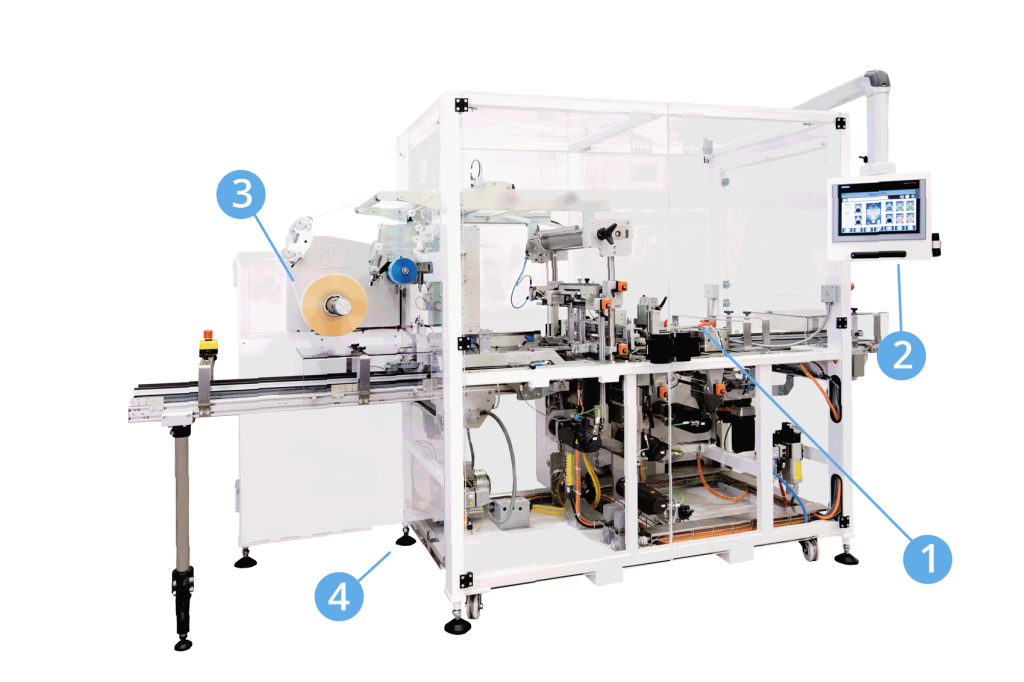

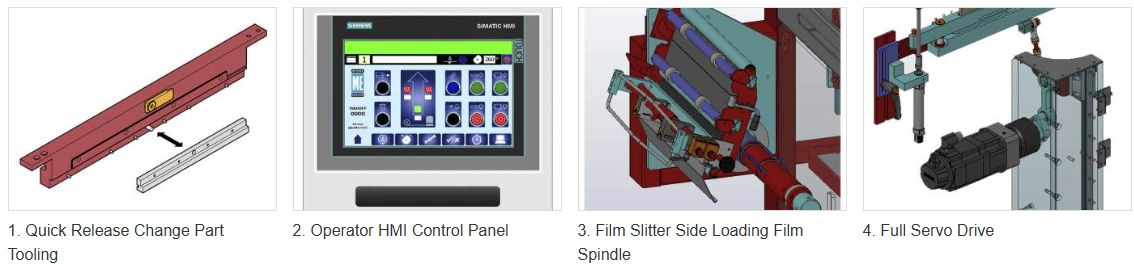

The TMX Series is a fully automatic trailing edge seal overwrapping machine solution capable of wrapping speeds of up to 70 packs per minute.
With a PLC control system, HMI, Full Servo operation and quick-change tooling combined to offer a highly flexible and efficient production machine. Alternative Eco-friendly Wrapping Material Options.
Machine Specification
| Model | Output Speed | a – pack length | b – pack width | c – pack height | |
| ME 300T Series | 300 per minute * | 70-180mm | 40-70mm | 10-50mm | |
* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

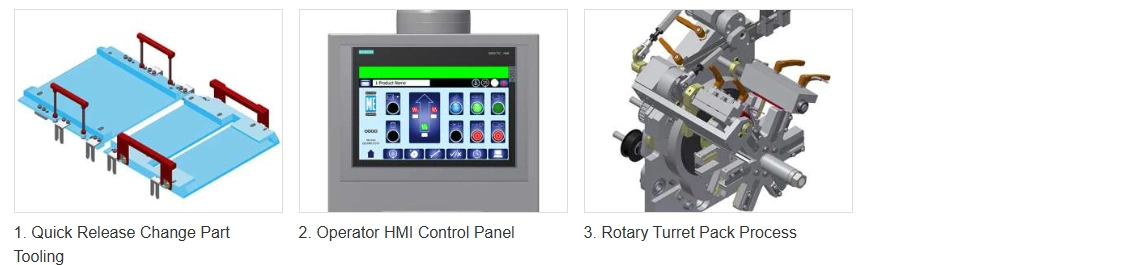

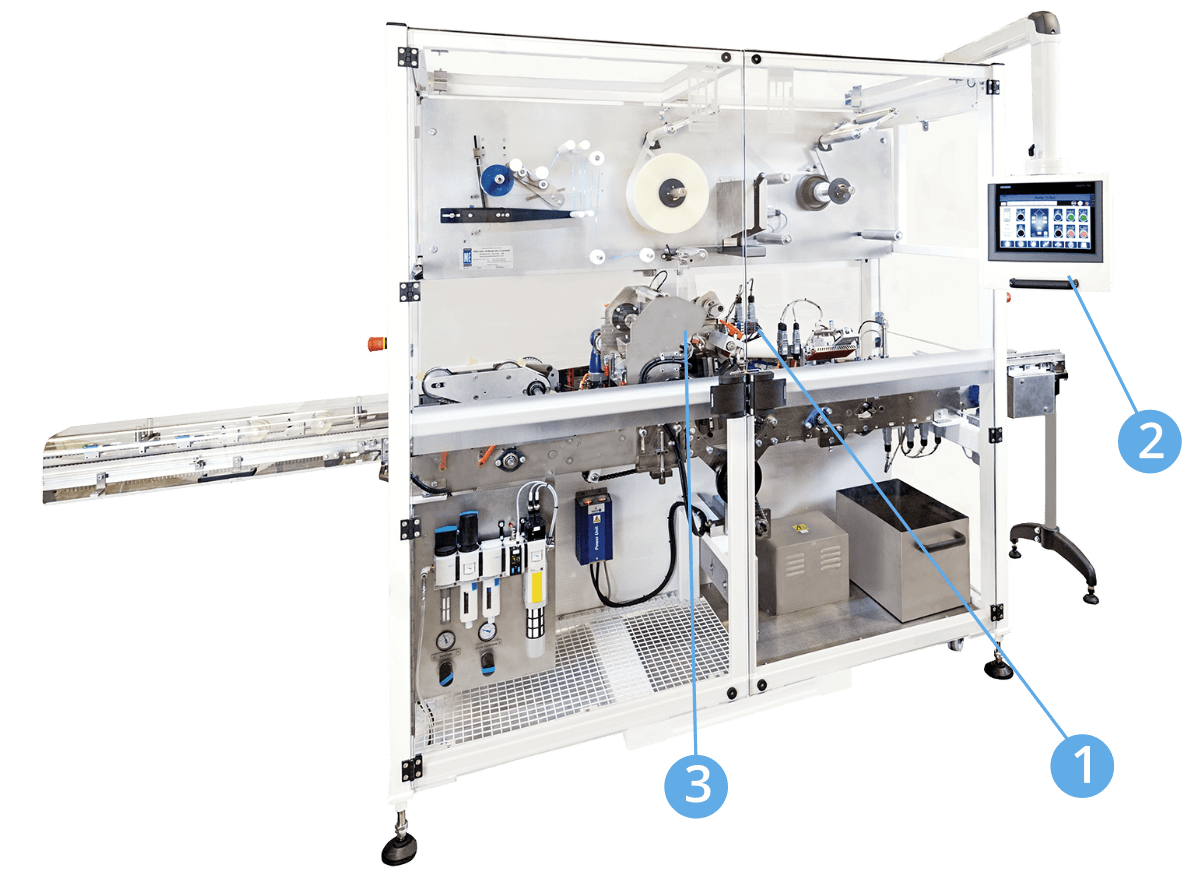

The ME 300T series is a fully automatic trailing edge seal overwrapping machine capable of wrapping speeds of up to 300 packs per minute.
This efficient high-speed carton wrapping machine has multi axis servo motor system, rotary turret pack process and large pack size capability with quick change parts. Alternative Eco-friendly Wrapping Material Options.
Machine Specification
| Model | Output Speed | a – pack length | b – pack width | c – pack height | |
| ME 300T Series | 300 per minute * | 70-180mm | 40-70mm | 10-50mm | |
* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.
