MINIBLIS
About the MINIBLIS

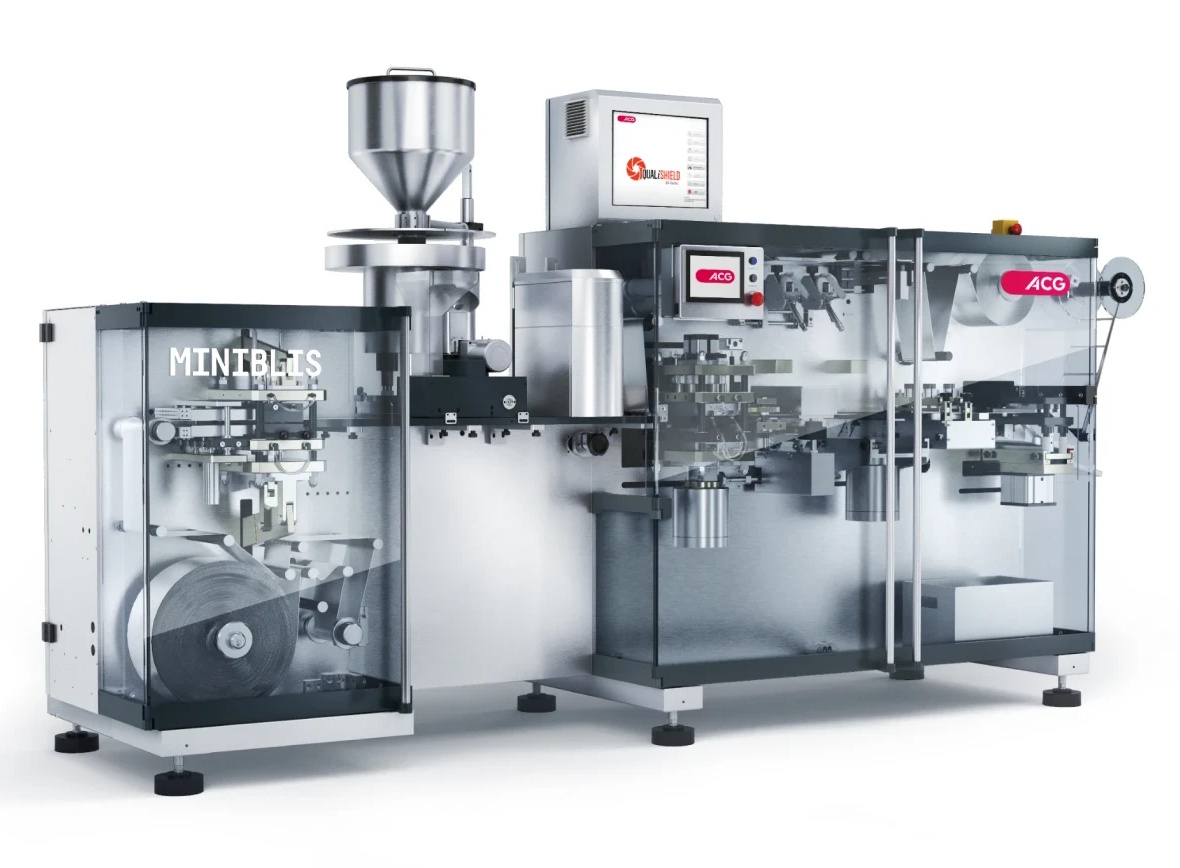

ACG’s MINIBLIS is a compact, fully versatile flat-forming, flat-sealing intermittent-motion machine for all forms of blister packs in short-run and small production batches. It supports the production of all configurations of blisters, including thermoforming films and cold-form foils.
Applications
Blister packaging of solid dosage products such as tablets, hard capsules and soft gelatin capsules
Features |
Benefits |
|
|---|---|---|
| Nitrogen-purging capability |  |
Facilitates handling of moisture-sensitive and hygroscopic products |
| Handles thermoform and cold-form applications | |
Versatile and adaptable to a wide range of R&D set-ups |
| Compact footprint | |
Higher output per square metre |
| Low power consumption | |
Low total-cost-of-ownership |
| Interactive human-machine interface (HMI) and IPC | |
User-friendly controls |
| Can be integrated with all visual inspection machines | |
Ensures high-quality blister packs |
Technical specification |
|||
| Forming cycle | Thermoforming | Up to 25 cycles/min | |
| Cold-forming | Up to 20 cycles/min | ||
| Forming depth | Thermoforming | Up to 12 mm | |
| Cold-forming | Up to 9 mm | ||
| Maximum forming area | 156 mm x 96 mm | ||
| Forming materials |
PVC, PVC/PVdC, Triplex (PVC/PE/PVdC), cold-form foil (Alu) |
||
| Lidding materials | Push-through foil, child-resistant foil, peelable (paper) | ||
