Front and Back Labeler – Labeling Machines

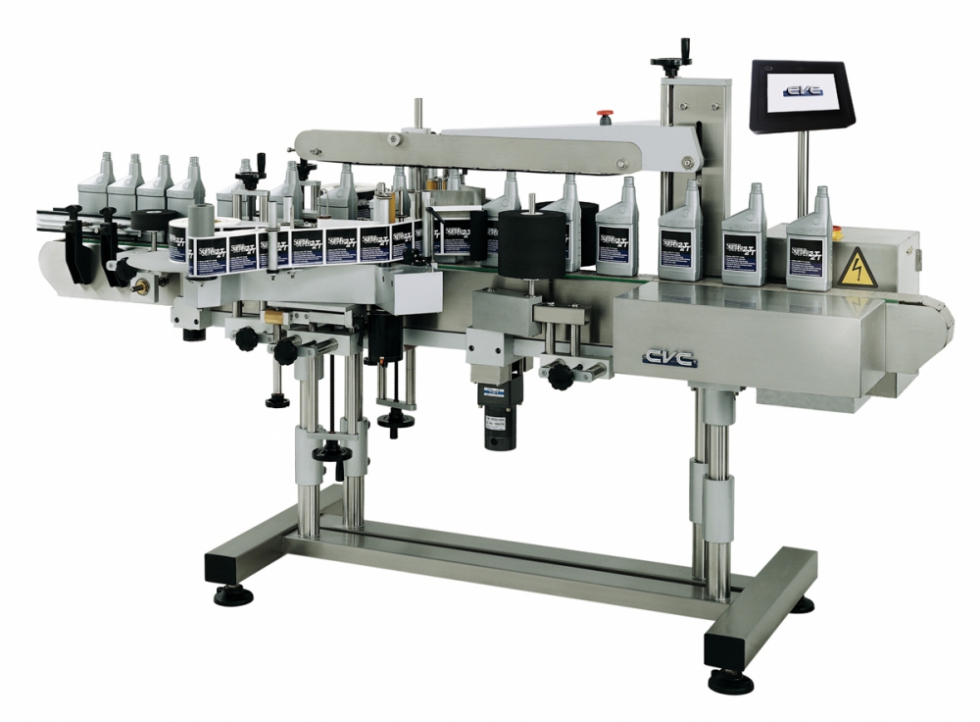

The CVC 400 Front & Back Labeler is built to automatically apply pressure sensitive labels onto the front and/or back of flat sided, oval, and some round containers. The 400 can be ordered with one or two labeling heads and has an optional assembly for applying a label to 3, 4, or 5 panels of a square or rectangular container. The 400 is an ideal machine for contract packagers and manufacturers serving the food, nutraceutical, pharmaceutical, gas, oil, and personal care markets.
Technical Specifications
| Power | 110V, Single Phase, 5 Amp (220V optional) |
| Air Pressure | Minimum 85 psi (ISO 8573-1) |
| Air Consumption | 4 cfm (for optional reject and Lot/Date printer) |
| Speed | Up to 175 Bottles per Minute (BPM) |
| Label Width / Height |
Configurable from ⅜” to 9″ (16mm – 229mm) dependent on label head type |
| Label Length | ¼” to 12″ (16mm – 305mm) |
| Label Roll | Max 14″ (356mm) outside diameter with 3″ core |
| Bottle Height | Configurable from 2″ to 16″ (51mm – 406mm) |
| Bottle Diameter |
Configurable from ½” to 6 ¼” (13mm – 159mm) dependent on conveyor width |
| Dispense Speed | Max 23 meters / min. |
| Conveyor Width | Standard 4″ (Configurable 6″) |
| Conveyor Length | Standard 95 ½” |
| Conveyor Bed Height | Standard 36″ (± 2″) |
| Machine Weight | 324 kg |

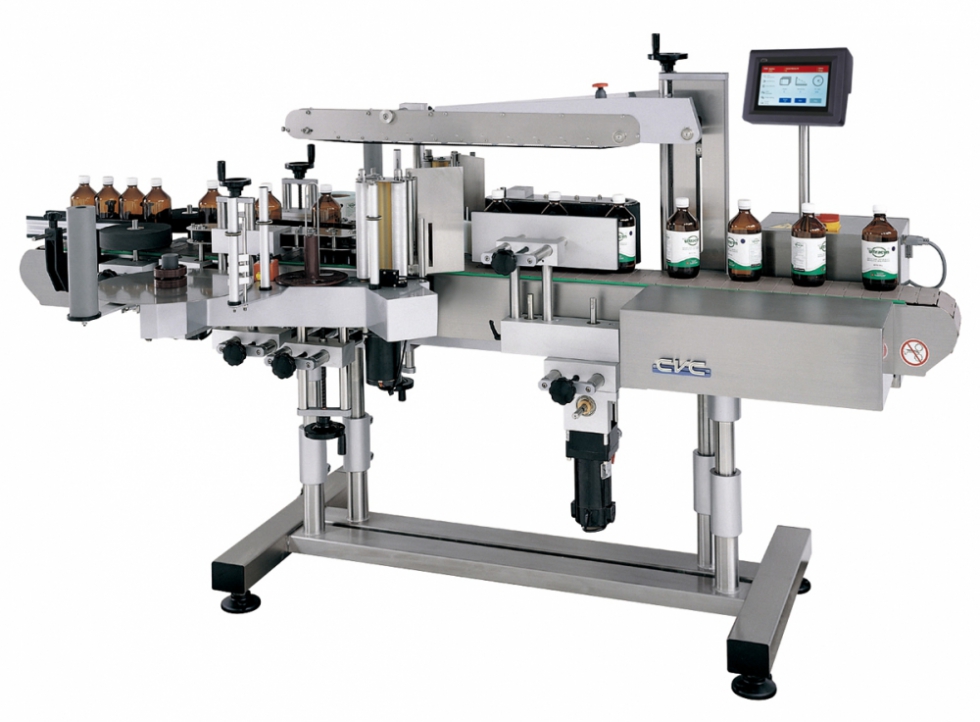

CVC Front and Back Labeler with Wrap Station CVC 430 is Dual-purpose machine designed to automatically apply pressure sensitive labels onto square or rectangular containers, and wrapping labels onto round containers.
It can also be ordered with an optional assembly for applying a label to 3, 4, or 5 panels of a square or rectangular container. The CVC 430 can satisfy all your requirements. Multiple applications but 1 Machine!
Technical Specifications
| Type | U1 |
| Productivity |
Up to 175 BPM (subject to trial confirmation) Dispense Speed: 23 M/min (75 ft/min) |
| Applicable Size | Label: Length: 15-250 mm (1/2″ to 10″) Width: (dependent on label head type) A: 15-80 mm (1/2″ to 3″) B: 15-120 mm (1/2″ to 4 3/4″) C: 15-150 mm (1/2″ to 6″) D: 15-180 mm (1/2″ to 7″) E: 15-220 mm (1/2″ to 8 3/4″) F: 15-265 mm (1/2″ to 11 1/2″) Flat/ Square Bottle: Length: Flat Bottle: 30-110 mm (1 1/4″ to 4 1/4″) Square Bottle: 30-200 mm (1 1/4″ to 8″) Width: 30-100 mm (1 1/4″ to 4″) Height: 75-320 mm (2 3/4″ to 12 1/2″) Round Bottle: Bottle with Cap Height: 50-220 mm (2″ to 8 3/4″) Dia.: Ø30-110 mm (1 1/4″ to 4 1/4″) |
| Power | 110/220 V, 50/60 HZ, 1 PH |
| Power Consumption | 528 VA (110V: 4.8 A, 220V: 2.4 A) |
| Air Pressure | 6 bar (87 psi) |
| Air Consumption | 50 NL/min (1.8 CFM) (for optional Lot/Date printer) |
| Consumption Machine Dimensions | 2,435 x 1,430 x 1,435 mm (Including conveyor) (8’ x 4’-8” x 4’-8”) |
| Machine Weight | 340 kg (750 lbs) |
| Noise Level | ≤ 75 dB |

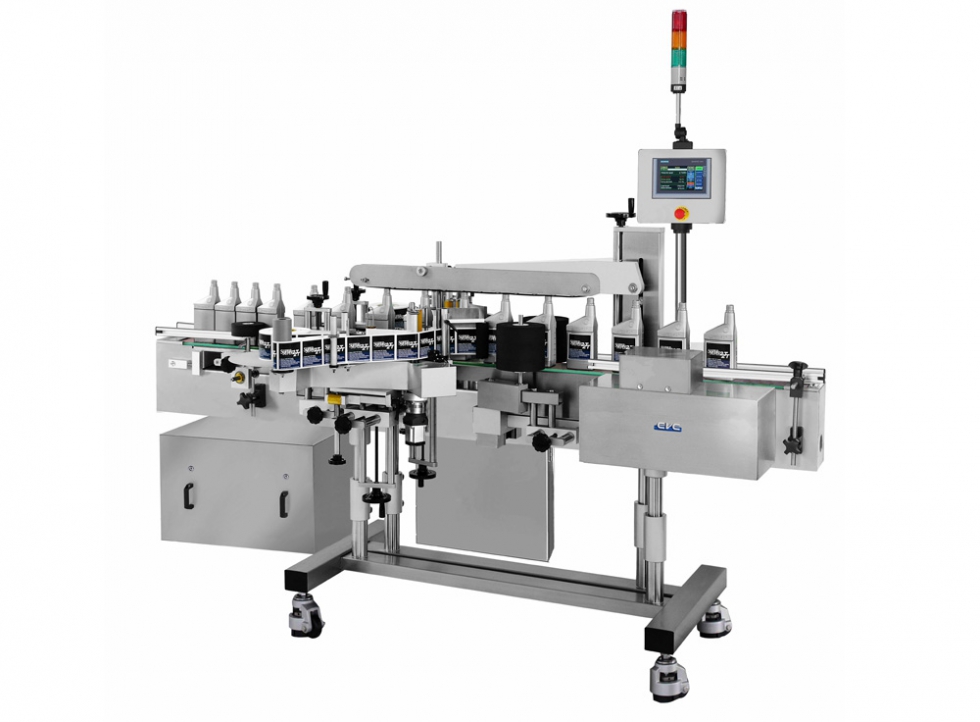

CVC Front and Back Labeler with Wrap Station CVC 432 is a dual-purpose machine designed to automatically apply pressure-sensitive labels onto the front and/or wrapping labels onto round containers. CVC 432 using the advanced system(Self Set), through this system users can effortlessly set up the diverse parameters like the speed of the motor, label length, labeling speed.
It can also be ordered with an optional assembly for applying a label to 3, 4, or 5 panels of a square or rectangular container. Self Set inspecting all the parameters. Moreover, CVC 432 will record every data and able to output. CVC 432 can satisfy all your requirements. Multiple applications but 1 Machine!
Technical Specifications
| Applicable Bottle | Diameter Ø1¼” to Ø4¼” (Ø30 mm – Ø110 mm) Bottle with Cap Height 2″ to 8¾” (50 mm – 220 mm) dependent on conveyor width |
| Applicable Size | Length Flat Bottle: 1¼” to 8″ (30 mm – 200 mm) Square Bottle: 1¼” to 4¼” (30 mm – 110 mm) Width 1¼” to 4¼” (30 mm – 110 mm) Height 2¾” to 12½” (75 mm – 320 mm) |
| Power | 220V, single phase, 950 VA (4.3 Amp) |
| Air Pressure | 6 bar (87 psi) (ISO 8573-1) |
| Air Consumption | 78.5 NLit/m (2.8cfm) (for optional reject and Lot/Date printer) |
| Consumption Machine Dimensions |
8′-7″ x 4′-11″ x 7′-5″ (2,615 mm x 1,490 mm x 2,260 mm) (L x W x H) |
| Speed | Rates in Excess of 260 Bottles Per Minute (Format Dependent) |
| Label Width / Height |
Configurable from ½” to 11½” (15mm – 265mm) dependent on label head type |
| Label Length | ½” to 10″ (15mm – 250mm) |
| Label Roll | Max 14″ (356mm) outside diameter with 3″ (76mm) core |
| Conveyor Width | Configurable up to 4″ (100mm) |
| Conveyor Length | Standard 103″ (2615mm) (Extendable) |
| Machine Weight | 400 kg (881 lbs) |
| Noise Level | ≦ 75 dB |

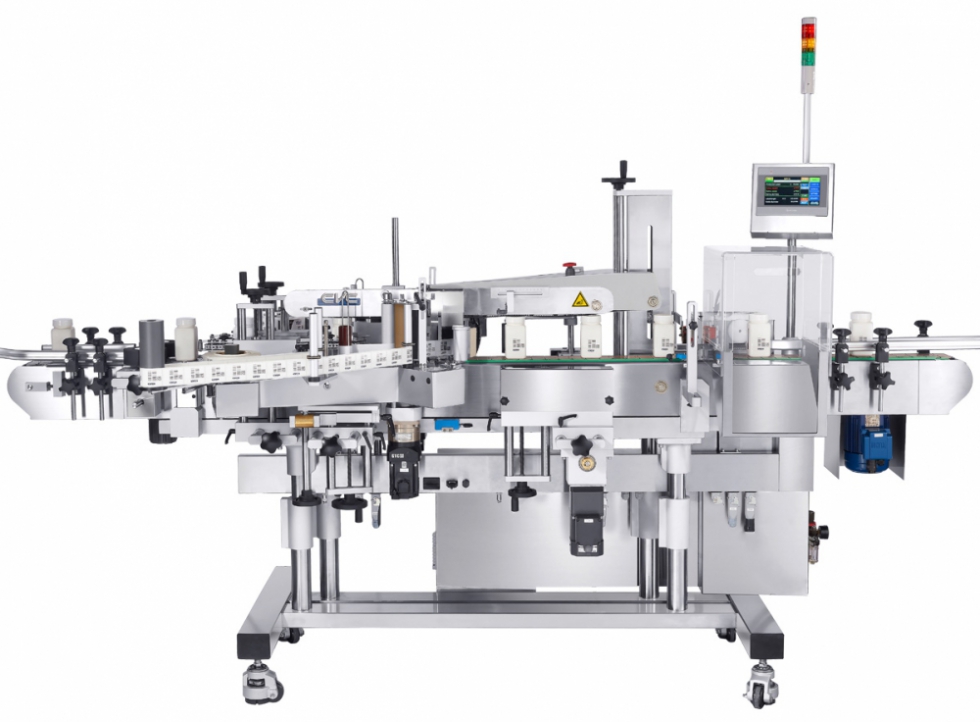

CVC Front and Back Labeler with Wrap Station CVC 430.U2 is Dual-purpose machine designed to automatically apply pressure sensitive labels onto square or rectangular containers, and wrapping labels onto round containers.
It can also be ordered with an optional assembly for applying a label to 3, 4, or 5 panels of a square or rectangular container. The CVC 430.U2 can satisfy all your requirements. Multiple applications but 1 Machine!
Technical Specifications
| Type | U2 |
| Productivity |
Up to 260 BPM (base on L.60 x W.59 x H.120 mm square bottle,label L.50 x W.40 mm) |
| (subject to trial confirmation) |
Up to 230 BPM (base on Ø 41 x H.80 mm round bottle, label L.50 x W.40 mm) |
| Applicable Size | Label: Length: 15-254mm (1⁄2” to 10”) Width: (dependent on label head type) A: 15-80 mm (1⁄2” to 3″) B: 15-120 mm (1⁄2” to 4 3⁄4”) C: 15-150 mm (1⁄2”” to 6″) D: 15-180 mm (1⁄2”” to 7″) E: 15-220 mm (1⁄2”” to 8 3⁄4” ) F: 15-265 mm (1⁄2”” to 11 1⁄2” ) Flat/ Square Bottle: Length: Flat Bottle: 30-110 mm (1 1⁄4” to 4 1⁄4” ) Square Bottle: 30-200 mm (1 1⁄4” to 8”) Width: 30-110 mm (1 1⁄4” to 4 1⁄4”) Round Bottle: Dia.: Ø 30- 110 mm (1 1⁄4”- 4 1⁄4”) Height: 50- 220 mm (2”- 8 3⁄4”) |
| Power source | 110/220 V, 50/60 HZ, 1 PH |
| Power Consumption | 1320 VA (110V: 12 A, 220V: 6 A) |
| Air Pressure | 6 bar (87 psi) |
| Air Consumption | 28.5 NL/min (1 CFM) (for optional reject) 128.5 NL/min (4.5 CFM) (for optional reject and Lot /Date printer) |
| Consumption Machine Dimensions | 2,735 x 1,430 x 1,870 mm (9’ x 4’-8” x 6’-2”)( L x W x H ) |
| Machine Weight | 426 kg |
| Noise Level | ≤ 75 dB |
