Flow Wrapper – Box Motion End Sealing
Horizontal Form Fill and Seal Flow Wrapper
Box Motion End Sealing Flow Wrapper offers ideal solution for hermetic sealing in low temperature, excellent end seal gusset and less air package. This model with gas flushing is good for Modified Atmosphere Packaging (MAP).

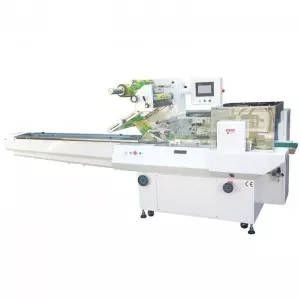

Flow pack machine for mooncakes, biscuits, cards, etc.
Thanks to the box motion end sealing system, the model is capable of covering a wide range of applications with less air packages and hermetic sealing.
Features:
- 1 set of box motion end sealing jaw for excellent hermetic sealing.
- 1 axis servo motor driven system.
- Siemens PLC program control.
- Shinko P.I.D. temperature control modular.
- 7″ colorful touch screen with 50 sets of products data memories.
- Print mark registration with Japanese Panasonic sensor as standard function.
- Home button makes the items setting exchange easy.
- Overload protection for end sealer with auto disengage function.
- Top brush belt makes the items transfer smoothly at high running speed.
- Dancing roller and motorized film feeding roller make the film supply tension stable.
Specifications:
| Model No. | S-5547-BX | S-5561-BX |
| Capacity (PPM) | 30 ~ 100 | 20 ~ 70 |
| Bag Length (mm) | 150 ~ 400 | 170 ~ 500 |
| Max. Film Width (mm) | 470 | 610 |
| Max. Product Width (mm) | 190 | 250 |
| Max. Product Height (mm) | 70 / 100 mm with jaws Dia. in 120 / 160 mm | |
| Electricity | 4.2 Kw – AC-220 / 380 / 450 Volt – 3 phase + Ground | |
The Max. product height is according to the applications & products range.
Higher product is available as requested.
Packaging Applications:
- Bakery
- Biscuits & Snacks
- Candy & Confectionery
- Refrigerated & Frozen Food
- Fresh
- Shrink Packaging
- Wet Wipes / Tissue
- Printing Items
- Detergents
- Pharmaceutical & Medical
- Hardware & Tool
- Instant Noodles
- Miscellaneous

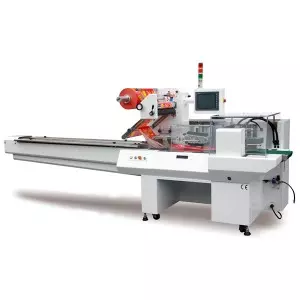

Flow pack machine for mooncakes, biscuits, bakery items, etc.
With optimal hermetic sealing performance with Box Motion End Sealing, the multi servo driven system ensures machine flexibility and efficiency with minimal maintenance costs.
Features:
- 1 set of box motion end sealing jaw for stable and reliable sealing quality.
- Yaskawa motion controller offers reliable and high-performance function.
- 3 axis servo driven for in-feed, center sealing and end sealing.
- 10.4″ colorful touch screen with 100 sets of products data memories makes different products exchange quick & easy.
- 1 set of auto centering reel holder.
- Safety guards with interlock safety offers good protection for operator.
- Japanese PANASONIC photocell for stable film print mark registration.
Cantilever design center sealing station makes the cleaning and maintenance easy.
Specifications:
| Model No. | S-5647-BX | S-5661-BX |
| Max. Film Width (mm) | 470 | 610 |
| Product Size (mm) | W = 10 ~ 200 L = 70 ~ 400 H = 1 ~ 60 |
W = 10 ~ 270 L = 80 ~ 400 H = 1 ~ 80 |
| Capacity (PPM) | 15 ~ 100 | 15 ~ 100 |
| Electricity | 3 phase – AC 220V or 380V or 415V – 5.5KW | |
Packaging Applications:
- Bakery
- Biscuits & Snacks
- Candy & Confectionery
- Refrigerated & Frozen Food
- Fresh
- Shrink Packaging
- Wet Wipes / Tissue
- Printing Items
- Detergents
- Pharmaceutical & Medical
- Hardware & Tool
- Instant Noodles
- Miscellaneous
