Eclipse 240 (Pot Filling Closing | Pot Filling Machines | Linear Platen | eclipse 240 | Packaging Automation Ltd)

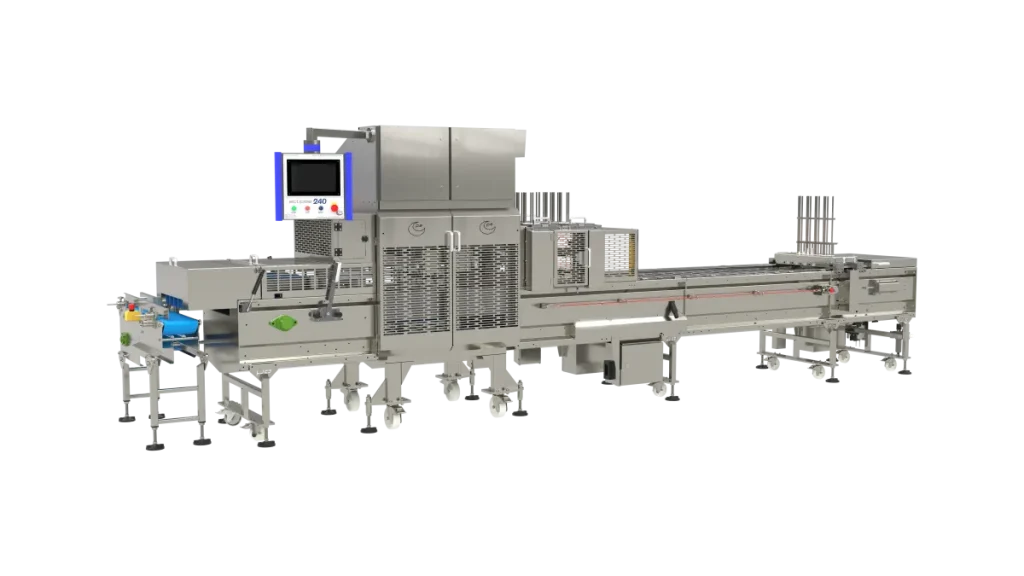

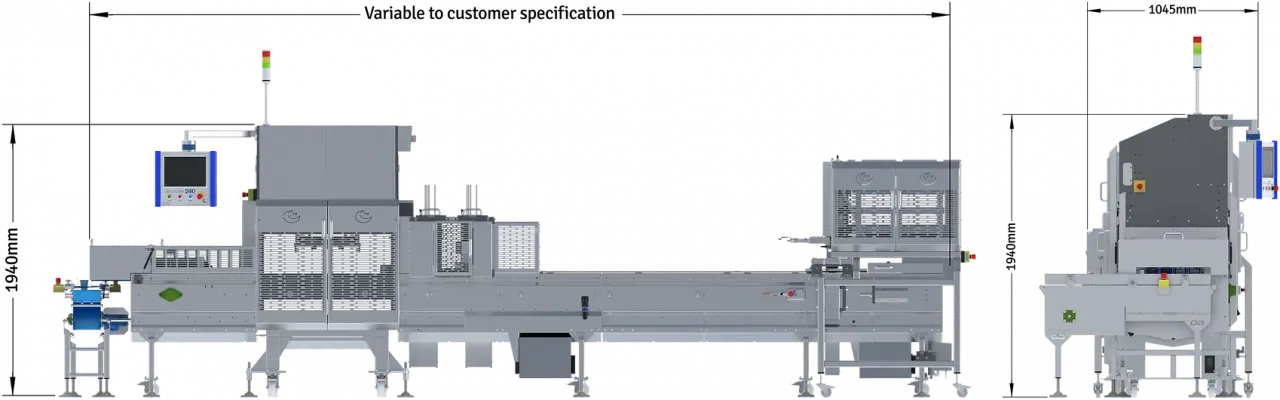

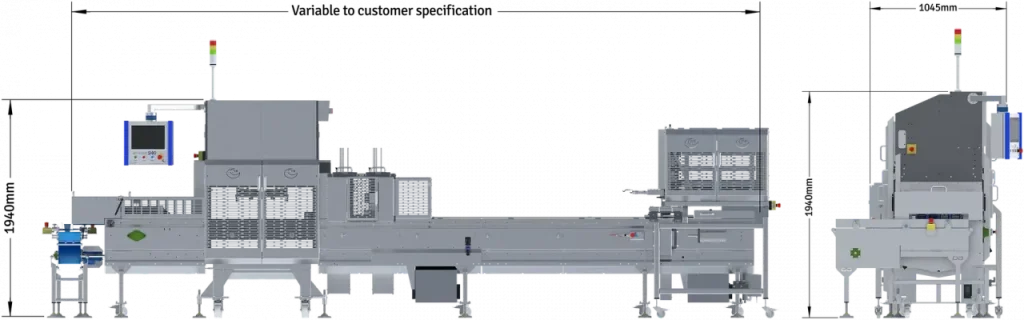

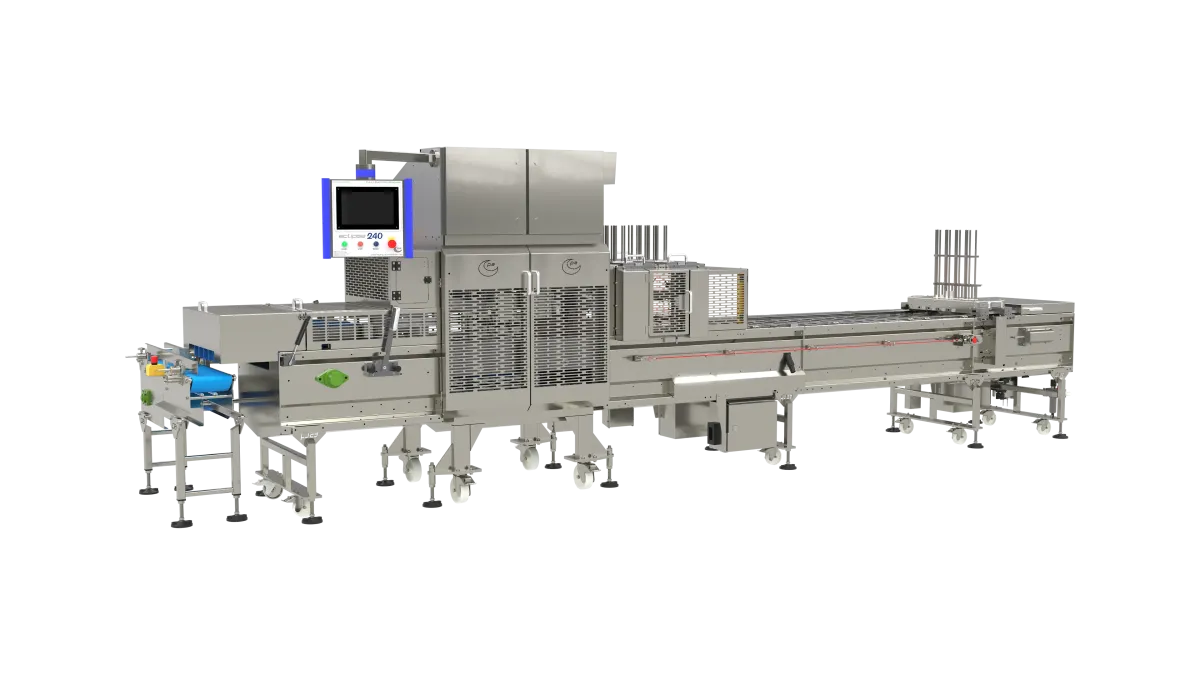

The Eclipse 240 is a linear conveyor, tray sealing system capable of denesting, filling, reel fed film or pre-cut lid sealing and over capping up to 240 packs per minute. Providing complete flexibility this machine can be specified to be multi lane and any length to fully automate the entire process at high speed. The Eclipse 240 can be configured to use MAP-F gas flushing and full MAP-V vacuum for extended shelf life. Dependent on tray size, the Eclipse 240 can seal up to 12 trays at a time in a dual lane format.
Technical Specifications:
| eclipse 240 Specifications | |
| Height | 1094mm |
| Width | Variable to customer specification |
| Depth | 1045mm |
| Electrical Supply | 32A 415V 3 Phase N+E 10A max/phase 50/60Hz |
| Pneumatic Supply | Not Required |
Packaging Materials:
- Plastic trays
PP, A-PET, C-PET, R-PET, PS
- Pulp and Board trays
Pre-cut board or pulp trays
- Lidding materials
Film lidding material on a reel
Pre-cut foil, paper or laminate lids
