Desiccant Inserters

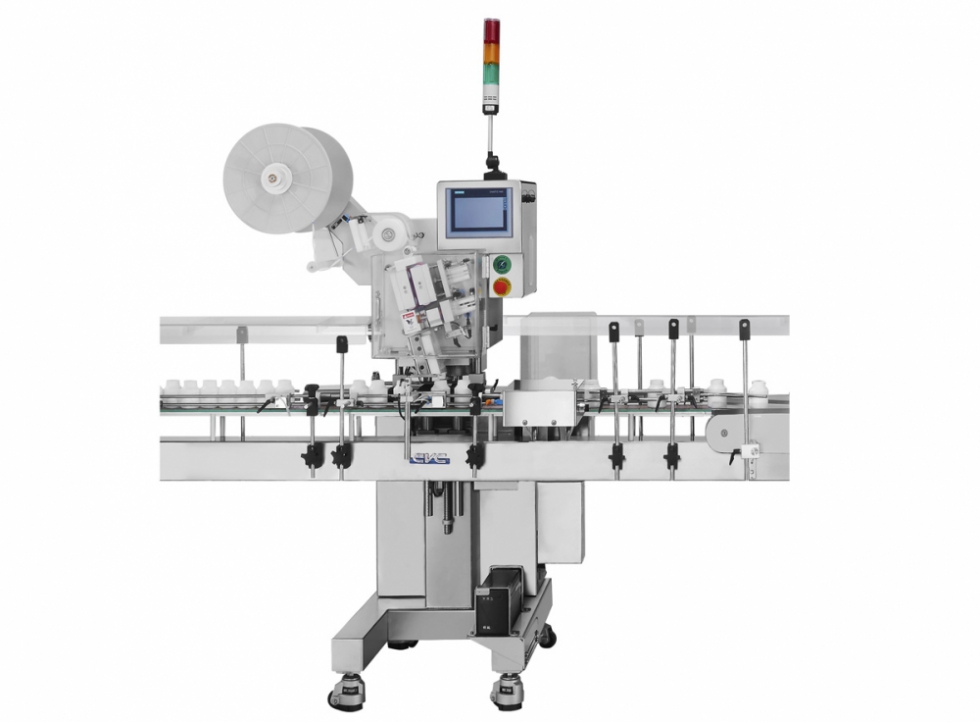

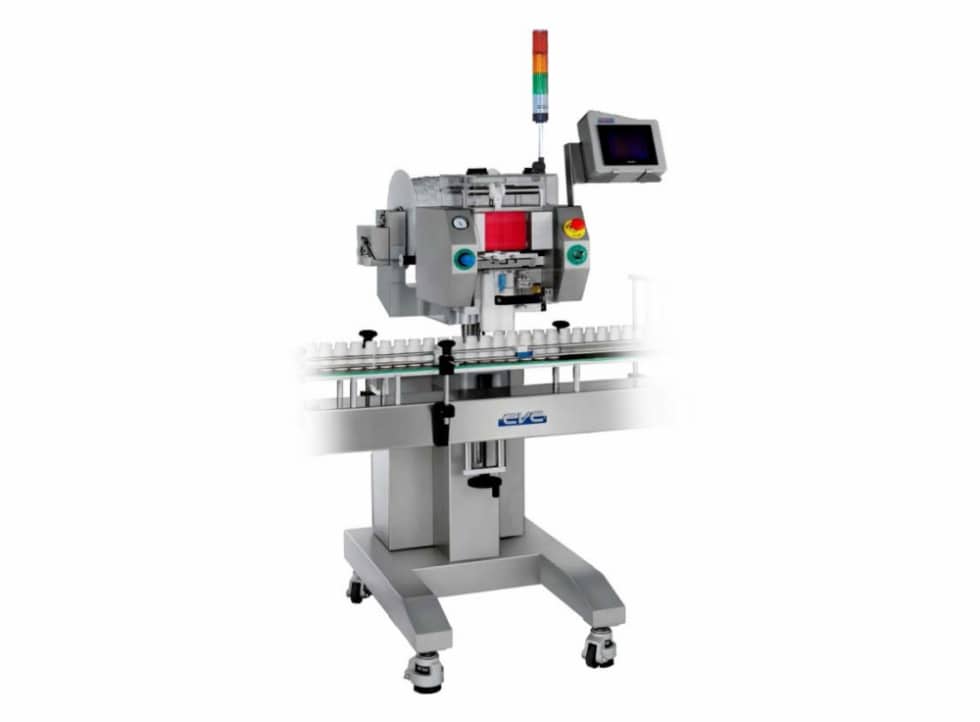

The CVC 1103H Pouch Desiccant Inserter is a compact highly cost-effective means to insert desiccants or oxygen absorbents into a variety of bottles and containers. The system cuts packets from a roll and inserts them into containers at speeds of up to 230 bottles per minute. The CVC 1103H is Siemens PLC controlled with servo motor. Options include 3-color stack light and feed screw for higher speed applications.

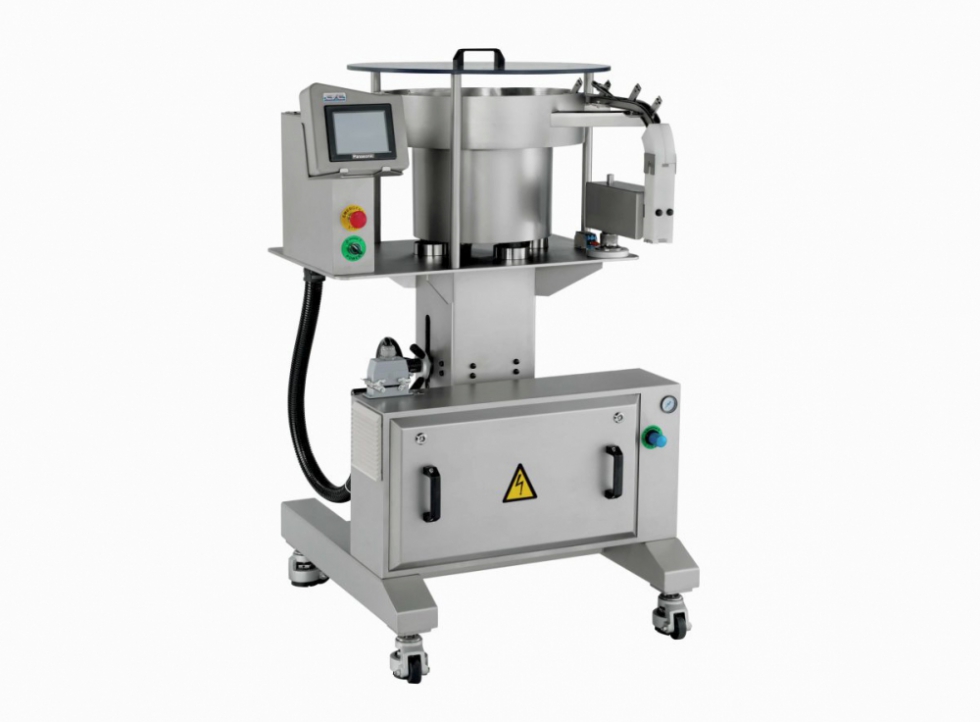

For desiccant insertion in bottles, CVC 1111 is specially designed to meet the requirements in pharmaceutical and nutraceutical industries.

The Stainless-Steel Vibratory Bowl Feeder consists of following features and functions:

• A stainless-steel holding bracket
• Bowl Feeder Size: 500 – 600 mm (in diameter)
• Max. Bowl Feeding speed is up to 120 insertions per minute.
• Vibratory Bowl Feeder Height is adjustable by a handle wheel which is mounted on the back side of the holding bracket.
• With one sized vibratory bowl feeder, canister desiccant adjustable range is within 14-24mm in diameter.
• Desiccant discharge chute with one exit for one canister size.
• An individual control box is mounted on the feeder bracket, which features ease of operator to access. The box consists of:
  – A Vibratory speed adjustment knob. Adjustable speed range: 0 100.
  – Power indicator.
  – ON/OFF switch.
  – 5A fuse.
  – Swivel Casters feature easy feeder movement.
• Top PC Cover for Vibratory bowl.

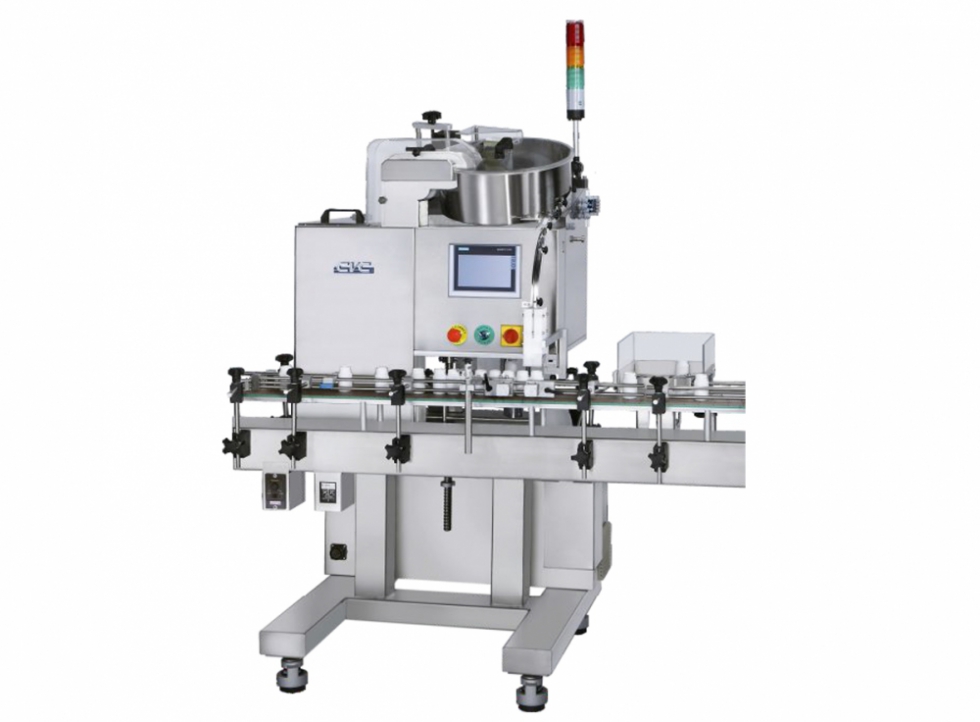

The CVC 1112 Canister Desiccant Inserter sorts and dispenses desiccant barrels into containers at speeds of up to 150 bottles per minute. The system is designed to comply with cGMP requirements and is controlled by Siemens PLC and servo motor.

The CVC 1112H Canister Desiccant Inserter sorts and dispenses desiccant barrels into containers at speeds of up to 200 bottles per minute. The system is designed to comply with cGMP requirements and is controlled by Siemens PLC and ser vo motor.
