CARTOBLIS
About the CARTOBLIS

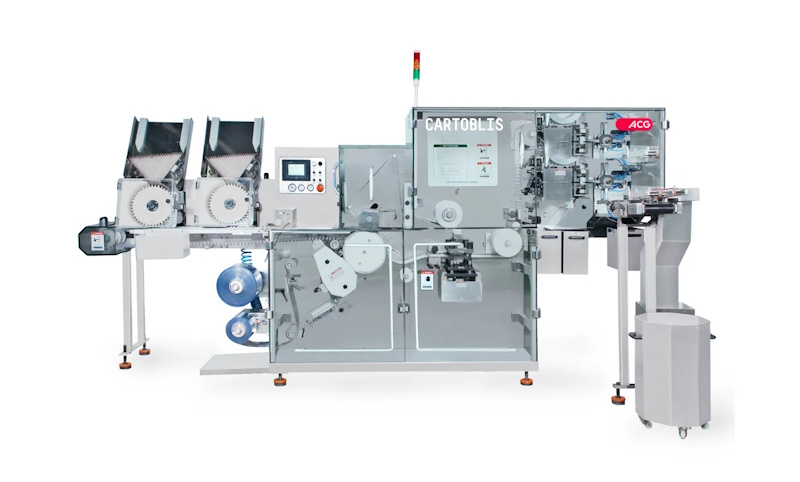

A cost-effective blister-packaging machine that integrates seamlessly with online cartoning in various layout configurations. Based on unique single-drum technology and advanced automation, CARTOBLIS offers high flexibility.
Applications
Blister packaging of solid dosage products such as tablets, hard capsules and soft gelatin capsules
Features |
Benefits |
|
|---|---|---|
| Capable of drawing deep cavities up to 28 mm |  |
Flexibility to pack ampoules, vials, syringes as well as tablets and capsules |
| Vacuum-based rotary thermoforming with unique single-drum technology | |
Better blister quality, using fewer format parts |
| Fast punching and blister pick-up | |
High output with better blister quality |
| Edge-to-edge punching | |
Reduces foil wastage in web travel direction |
| Integration with carton packaging machine | |
Provides continuous feed to any online cartoner, fully automating the blister-cartoning operation |
Technical specification |
|||
| Output | Up to 6.5 m/min (Thermoforming) | ||
| Forming depth | Up to 12 mm (Thermoforming) | ||
| Format area | 200 mm x 100 mm | ||
| Forming materials | PVC, PVC/PVdC, Triplex (PVC/PE/PVdC) | ||
| Lidding materials | Push-through foil, child-resistant foil, peelable (paper) | ||
