Capsule Polishing with Metal Check

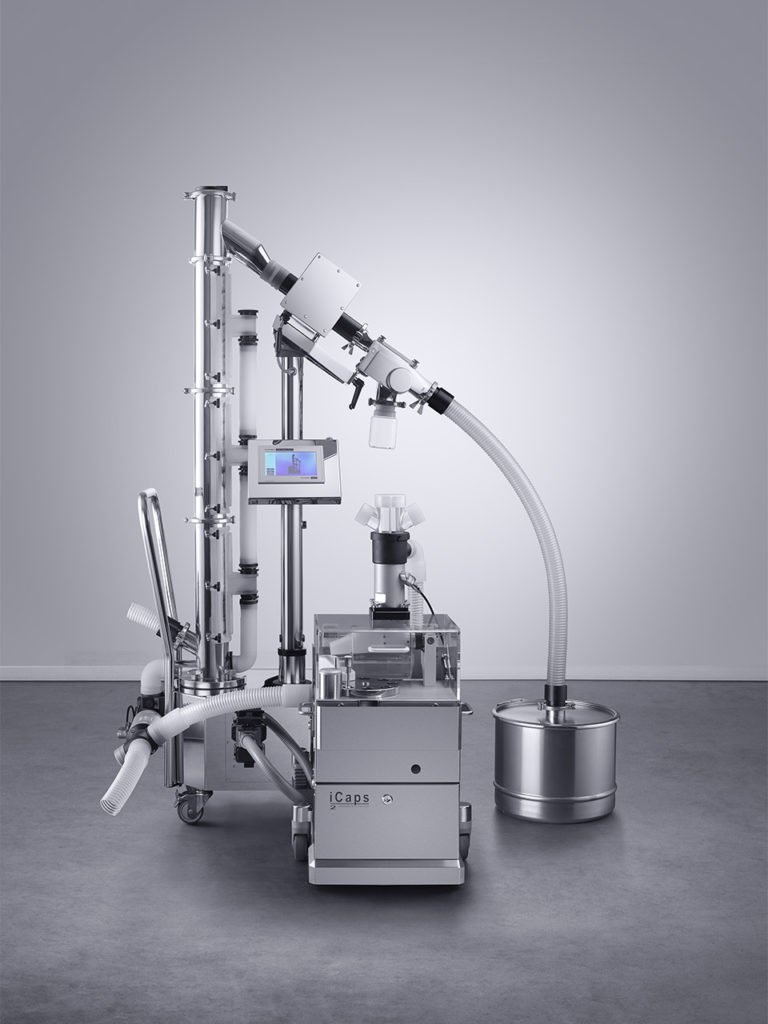

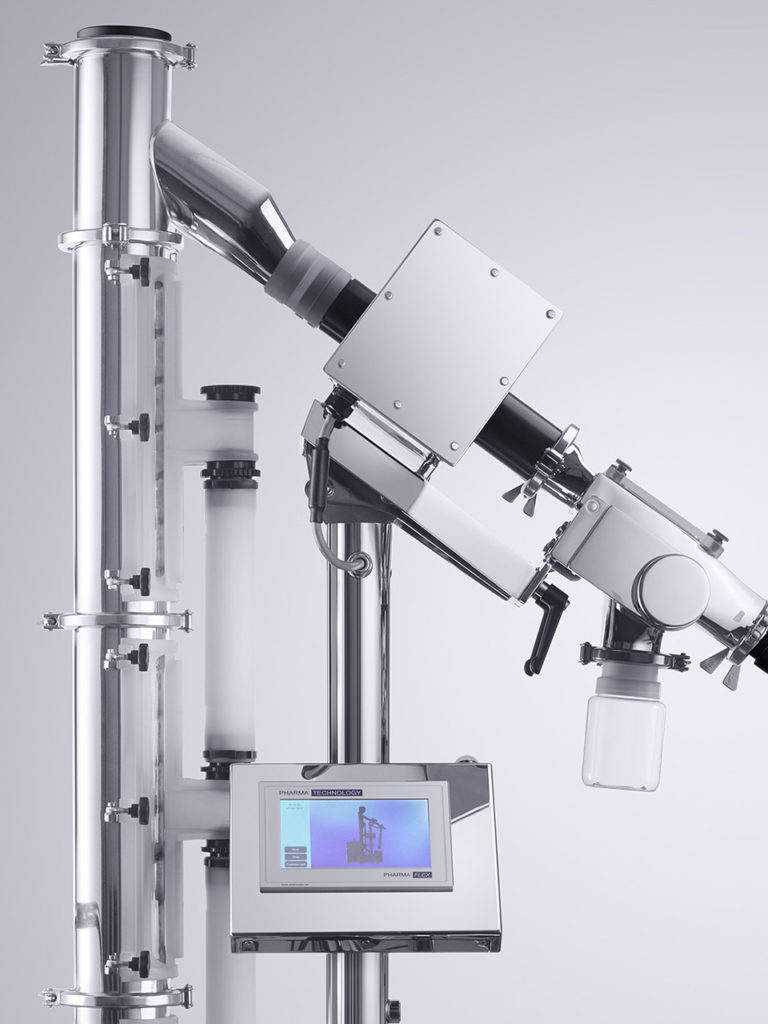

The iCaps “C” Containment ≤OEB4 capsule polisher offers excellent flexibility, increased output, and superior polishing efficiency. Its modular design allows for customization to meet specific customer needs, ensuring safe and efficient handling of potent drugs in a contained environment.

Key Benefits:

• Operator and product safety up to ≤OEB4 containment level
• Pressure monitoring with fail-safe security valves
• Complete emptying for all capsule types
• Four adjustable elevation heights (1000 mm to 2200 mm)
• FDA-approved light components for handling and washing
• Ergonomic, efficient, robust, and reliable design
• No risk of cross-contamination, easy validation
• Central HMI with OPC UA, CFR 21 Part 11 compliant

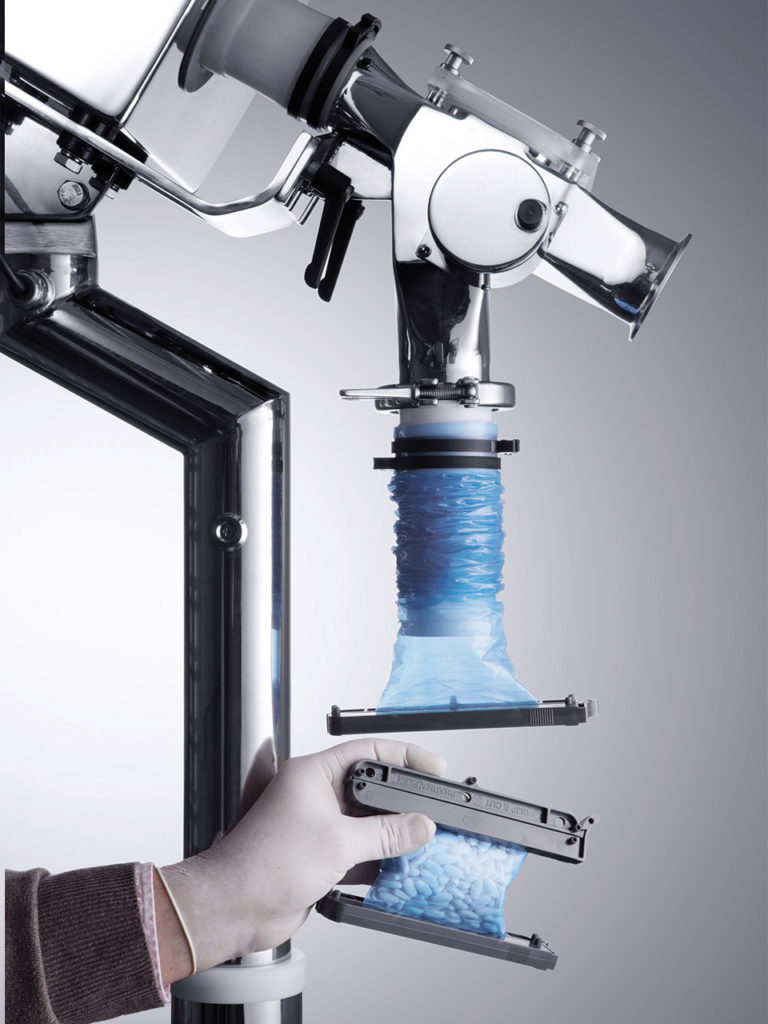

The iCaps “C” Containment unit includes features to ensure safety when manufacturing potent drugs, such as a contained test sample inserter to avoid contact with the product, continuous pressure monitoring to maintain negative pressure, and fail-safe pinch valves for added security. The system also offers simple and contained disconnection of peripheral equipment using Flex Connect pipes with a double LDPE barrier. A unique antistatic patented metal check ensures tightness while discharging static electricity from capsules. Additionally, the system is modularly upgradable to a “HC” High Containment washable solution for enhanced flexibility.

Technical Data

Products to process	Capsules
Polishing technology	Patented helicoidal brush system with side vacuuming
Polishing effect	High performance level
Vacuum	On each elevation tube section
Total emptying	Yes, all formats and weight
Conveyor material	FDA Hi-tec polymer
Capacity/Speed
Small capsules Size 4-5	Up to 750.000 caps/h
Medium capsules Size 1-2-3	Up to 400.000 caps/h
Large capsules Size 0-00	Up to 250.000 caps/h
Interfacing/Connectivity	HMI with OPC UA capability
Inlet Height	558 mm (center of inlet tube DN50)
Available elevation heights	1000/1400/1800/2200 mm
Accessories
Pressure monitoring	Standard
Pressure decay	Standard
Metal check	CEIA/PH21N – Head aperture Ø 70 mm
Intrinsic sensitivity	SS 316L 0,40 mm
	Ferro: 0,25 mm
	Non ferro: 0,30 mm
Metal check	Lock Insight – Head aperture Ø 70 mm
Intrinsic sensitivity	SS 316L 0,50 mm
	Ferro: 0,30 mm
	Non ferro: 0,35 mm
Autocheck for metal detector	Standard
Empty Capsule Eliminator	N/A
Diverter	Optional 2 ways, 4 ways, Euro Pallet
Tester	Optional 2 parameters “C” Weight & Lenght
Regulations
Occupational Exposure Band	“C” Containment ≤OEB4
Noise level	<72 dB(A)
GMP compliance	Yes
CE compliance	Yes
Material certificate	Available
IQ-OQ protocol	Available
Cleaning and Dismantling
Manual cleaning	Easy access for cleaning/No tools required
Automatic cleaning	N/A
Floor dimension	711 mm x 460 mm
Frame parts	Stainless steel 304 – brushed
Frame mounted on wheels	Yes

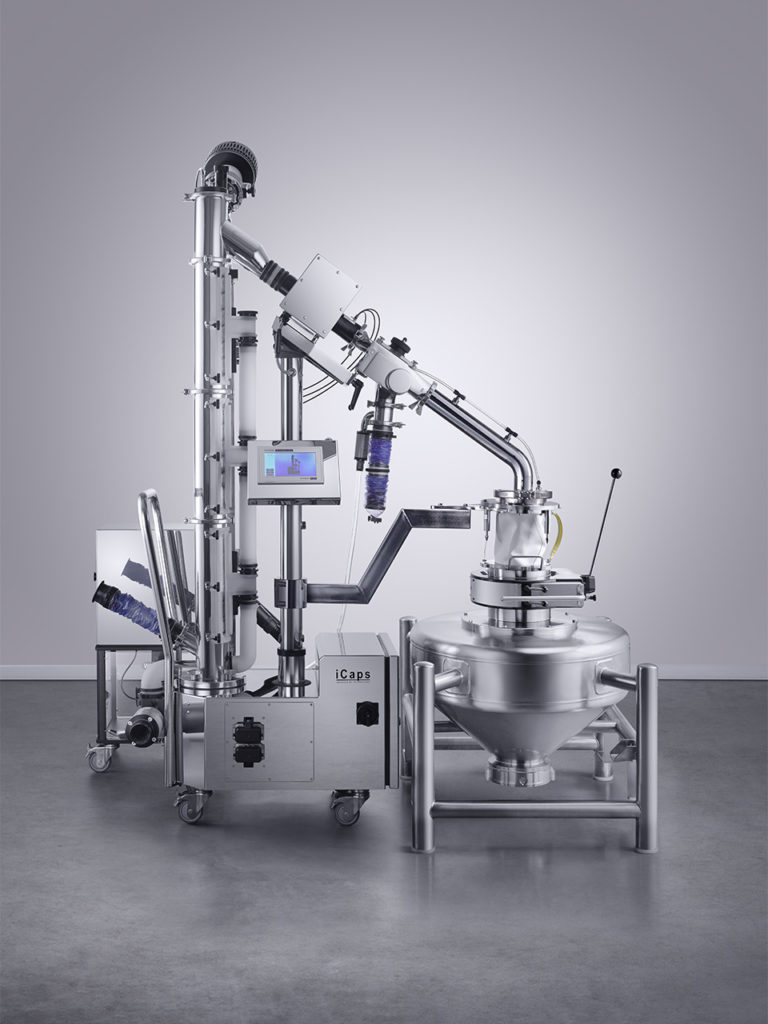

The iCaps range provides outstanding flexibility, increased output, and superior polishing efficiency. Its modular design allows for customization to meet specific customer needs, making it a versatile solution for various applications.

Key Benefits:

• Operator and product safety up to ≤OEB5 containment level
• Pressure monitoring with fail-safe security valves and pressure decay
• Complete emptying for all capsule types
• Four adjustable elevation heights (1000 mm to 2200 mm)
• FDA-approved light components for easy handling and washing
• Ergonomic, efficient, robust, and reliable design
• No risk of cross-contamination, easy validation
• Central HMI with OPC UA, CFR 21 Part 11 compliant

The iCaps system ensures a high level of safety and efficiency in capsule polishing, with key features designed to meet the strictest standards for containment and ease of use.



Technical Data



Products to process	Capsules
Polishing technology	Patented helicoidal brush system with side vacuuming
Polishing effect	High performance level
Vacuum	On each elevation tube section
Total emptying	Yes, all formats and weight
Conveyor material	FDA Hi-tec polymer
Capacity/Speed
Small capsules Size 4-5	Up to 750.000 caps/h
Medium capsules Size 1-2-3	Up to 400.000 caps/h
Large capsules Size 0-00	Up to 250.000 caps/h
Interfacing/Connectivity	HMI with OPC UA capability
Inlet Height	558 mm (center of inlet tube DN50)
Available elevation heights	1000/1400/1800/2200 mm
Accessories
Pressure monitoring	Standard
Pressure decay	Standard
Metal check	CEIA/PH21N – Head aperture Ø 70 mm
Intrinsic sensitivity	SS 316L 0,40 mm
	Ferro: 0,25 mm
	Non ferro: 0,30 mm
Metal check	Lock Insight – Head aperture Ø 70 mm
Intrinsic sensitivity	SS 316L 0,50 mm
	Ferro: 0,30 mm
	Non ferro: 0,35 mm
Autocheck for metal detector	Optional
Empty Capsule Eliminator	N/A
Diverter	Optional – 2 ways/ 4 ways / Euro Pallet
Regulations
Occupational Exposure Band	“HC” High Containment ≤OEB5
Noise level	<72 dB(A)
GMP compliance	Yes
CE compliance	Yes
Material certificate	Available
IQ-OQ protocole	Available
Cleaning and Dismantling
Manual cleaning	Easy access for cleaning/No tools required
Automatic cleaning	Washing in place – Washing off line
Floor dimension	711 mm x 460 mm
Frame mounted on wheels	Yes

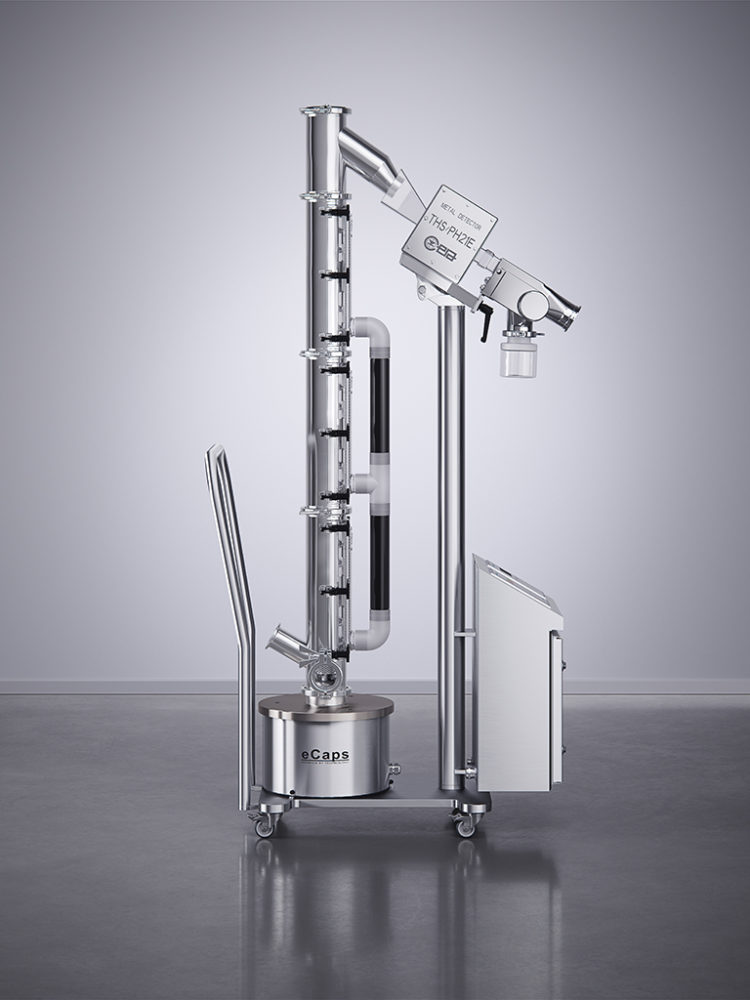

The eCaps capsule polisher is designed for efficiency, reliability, and high-quality polishing. It is an open-air system with flexible configuration options, offering three elevation heights to suit various production needs. The eCaps can be combined with a metal detector, an empty capsule eliminator, and a drum loading system for added functionality.

Key Benefits:

• Efficient operation
• Ergonomic design
• Robust and reliable construction
• Complete emptying for all capsule sizes and weights
• Three elevation heights: 1000 mm, 1400 mm, and 1800 mm
• Optional Empty Capsule Eliminator & 2-way diverter

The eCaps features a new generation of modular 400mm segments, each with a patented rotational brush that elevates, dedusts, and polishes capsules of any size or shape, from 000 to 5. The modular design allows for easy interchangeability between polishing segments and provides three different conveying heights for flexibility.

The patented technology ensures high polishing performance with a homogeneous vacuum flow on one side and a unique aspiration window design on the other to guarantee complete emptying of any capsule type. The system is designed for ease of use, minimizing parts to simplify assembly and disassembly, and eliminating the need for tooling.

Equipped with a metal detector, the eCaps ensures optimal accuracy, detecting particles as small as 0.4 mm, with a high-speed rejection mechanism for non-compliant products. Three detector options are available: Ceia, Lock, and Safeline. The design saves space in the production room and reduces retention areas. The Empty Capsule Eliminator (ECE) feature ensures 100% production efficiency, eliminating any empty capsules.

Technical Data

Products to process	Capsules
Polishing technology	Patented helicoidal brush system with side vacuuming
Polishing effect	High performance level
Vacuum	On each elevation tube section
Total emptying	Yes, all formats and weight
Conveyor material	FDA Hi-tec polymer
Capacity/Speed
Small capsules Size 4-5	Up to 250.000 caps/h
Medium capsules Size 1-2-3	Up to 200.000 caps/h
Large capsules Size 0-00	Up to 180.000 caps/h
Interfacing/Connectivity	No HMI
Inlet Height	475 mm (center of inlet tube DN50)
Available elevation heights	1000-1400-1800 mm
Pressure monitoring	N/A
Pressure decay	N/A
Metal check	Ceia, Lock, Safeline
Occupational Exposure Band	Open
Noise level	<70 dB(A)
GMP compliance	Yes
CE compliance	Yes
Material certificate	Available
IQ-OQ protocol	Available
Manual cleaning	Easy access for cleaning/No tools required
Automatic cleaning	N/A
Floor dimension	895 mm x 480 mm
Frame parts	Stainless steel 304 – brushed
Frame mounted on wheels	Yes



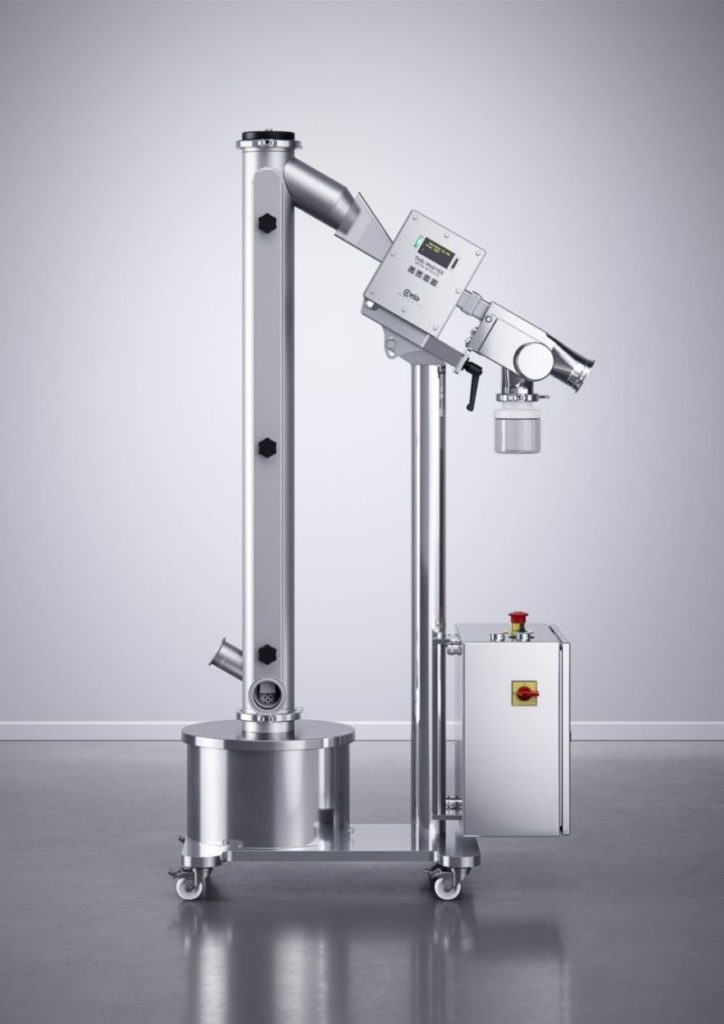

The NutraCaps capsule polisher is designed for efficiency and usability, offering a straightforward solution for high-quality capsule polishing. It can be easily combined with a metal detector, an empty capsule eliminator, and a drum loading system for added versatility.

Key Benefits:

• Outstanding polishing performance
• Supports all capsule sizes
• cGMP compliance
• Complete emptying of capsules
• Fast and easy cleaning and dismantling

Developed specifically for nutraceutical production, the NutraCaps integrates pharmaceutical industry expertise to deliver an efficient, cost-effective solution for the nutraceutical market. Its unique brush design ensures high-quality polishing while maintaining high production rates.

The unit features a rotating brush that quickly conveys, cleans, and polishes capsules in seconds. It is equipped with an advanced dust extraction system that efficiently separates excess powder during the polishing process. Designed for user-friendliness, the NutraCaps eliminates the need for tooling, making it ideal for quick changeovers when working with a wide range of products.

The system is compatible with a Ceia metal detector, an Empty Capsule Eliminator (ECE), and a manual 2-way diverter, offering a flexible and reliable solution for capsule polishing.

Technical Data

Product to process	Capsules
Polishing technology	Patented helicoidal brush system with side vacuuming
Self emptying	Yes, all formats and weight
Small capsules (size 4-5)	Up to 250.000 caps/h
Medium capsules (size 1-2-3)	Up to 200.000 caps/h
Large capsules (size 0-00-000)	Up to 200.000 caps/h
Total height	1706 mm
Inlet height	660 mm
Outlet height	Between 924 and 1211 mm
Inlet chute	TC DIN 32676 DN 50
Outlet chute	TC ISO 1127 DN 50
Minimum product size	5
Maximum product size	000
Conveying adjustment	Rotation speed
Requested air extraction	110 to 150 m³/h
Dust extraction connection	TC ISO 1127 DN 50
Noise level	≤70 dB (A)
GMP compliance	Yes
Polymer contact parts	FDA POM C
Contact parts finishing	RA < 0,8 μm
Frame parts	Stainless steel 304
Frame finishing	Brushed 320
Metal detector	CEIA THS/PH21 EE – Head aperture 100 x 40 mm
Interfacing/Connectivity	N/A
Manual cleaning	Easy access for cleaning – No tools required
