Cappers

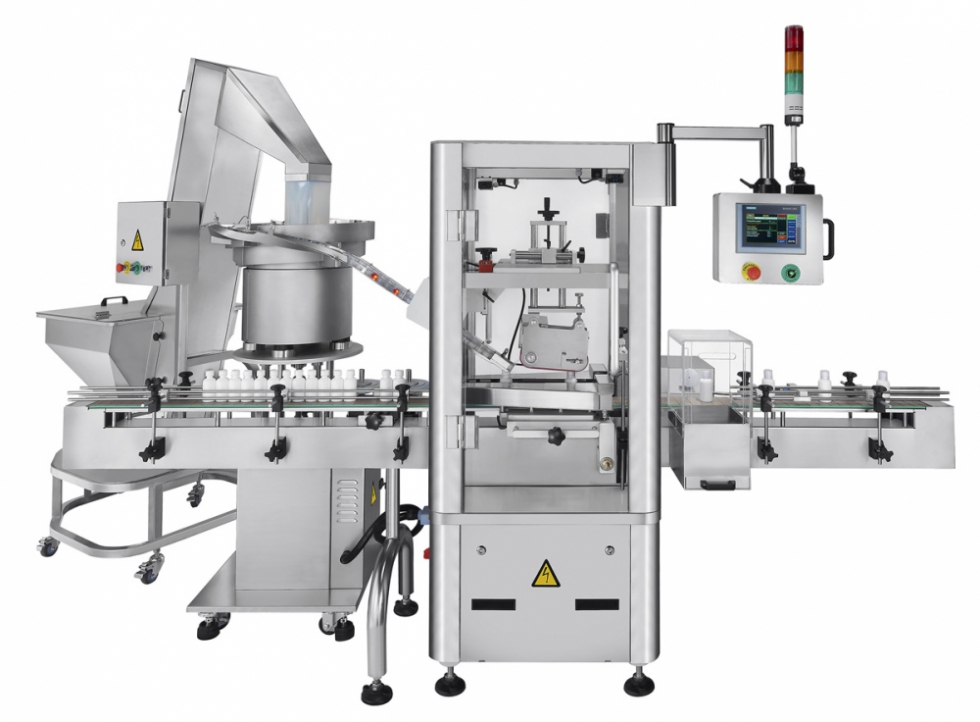

The CVC 1201VP Vibratory Press Capper is a very flexible machine designed to apply and press snap-on caps, measuring cups onto containers at rates of up to 50 bottles per minute. The CVC 1201VP is Siemens PLC Controlled. Options Include 3-Color Stack Tower Light, Cap Elevator, Cap Inspection (Missing Cap on Bottle, Crooked cap), Reject, and Reject Verification.
- Built to cGMP Standards
- Stainless Steel Construction
- Quick and Easy Change Over
Technical Specifications
| Applications | Tablet Filling |
| Cap Height | ⅜” to 1″ (10 mm – 25 mm) |
| Cap Diameter | 1 ¼” to 3 ⅛” (Ø30mm – Ø80 mm) |
| Applicable Bottle | Round |
| Power source | 220V, 50/60 HZ, 1 phase |
| Power Consumption | 1100 VA (5 A) |
| Air Pressure | 6 bar (87 psi) (ISO 8573-1) |
| Air Consumption | 28 NLit/m (0.98 cfm) (CVC1201P Press Capper) 24 NLit/m (0.84 cfm) (CVC1201V Vibratory Cap Sorter) |
| Consumption Machine Dimensions | 9′-0″ x 4′-0″ x 7′-3″ (2,750 mm x 1,215 mm x 2,210 mm) (L x W x H) |
| Speed | Up to 50 BPM (subject to trial confirmation) |
| Bottle Height | 3 ⅛” to 7 ⅞” (80 mm – 200 mm) (* Sujbect to our factory evalaution) |
| Bottle Diameter | 1 ¼” to 3 ⅛” (Ø30mm – Ø80 mm) (* Sujbect to our factory evalaution) |
| Machine Weight | 416 kg (918 lbs) (CVC1201P Press Capper) 293 kg (645 lbs) (CVC1201V Vibratory Cap Sorter) |
| Noise Level | ≤ 80 dB |

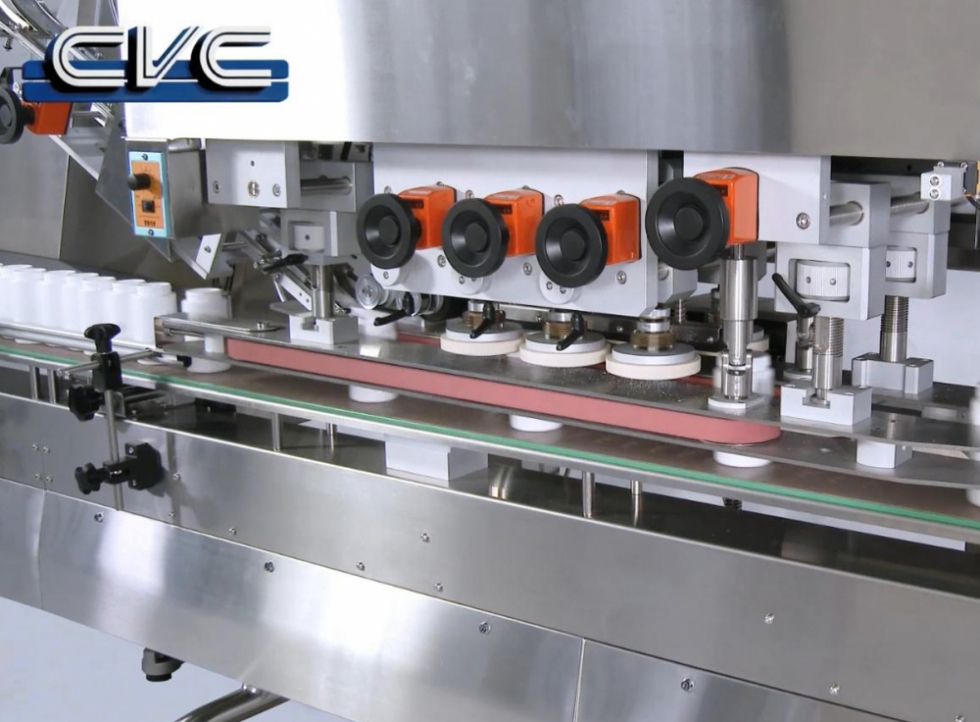

The CVC 1205 Capper is a very flexible machine. The CVC 1205 Capper is a very flexible machine designed to apply and tighten screw-on caps onto containers at rates of up to 120 bottles per minute. The CVC 1205 is Siemens PLC controlled. Options include tower lamp, hopper level control, cap inspection (level cap, foil seal, and no cap), reject, and reject verification.
Technical Specifications
| Applications | Tablet Filling |
| Type | U4 |
| Productivity | Up to 100-120 BPM (base on 40-100 cc round bottle) |
| Applicable Size |
Cap: Dia.: Ø30-110 mm (１1⁄4″ to ４1⁄4″) Height: 10-25 mm (3⁄8″ to 1″) Bottle: Dia.: Ø30-110 mm (１1⁄4″ to ４1⁄4″) with Cap Height: 50-220 mm (2” to ８1⁄2″) |
| Hopper Capacity | 220 L (7.7 Cuft) |
| Power source | 220 V, 50/60 HZ, 1 PH |
| Power Consumption | CVC 1205: 1,320 VA (6 A) / CVC 1200W: 200 VA (0.9 A) |
| Air Consumption | CVC 1205: 84 NL/min (2.9 CFM) CVC 1200W: 168 NL/min (5.8 CFM) |
| Consumption Machine Dimensions |
CVC 1205: 1,595x 1,105x 2,265 mm (5’-3”x 3’-8”x 7’-5”) / CVC 1200W: 1,385x 1,225x 2,380 mm (4’-7” x 4’ x 7’-10”) |
| Machine Weight | CVC 1205: 457 kg (1,008 lbs) CVC 1200W: 435 kg (959 lbs) |
| Noise Level | ≦60dB |

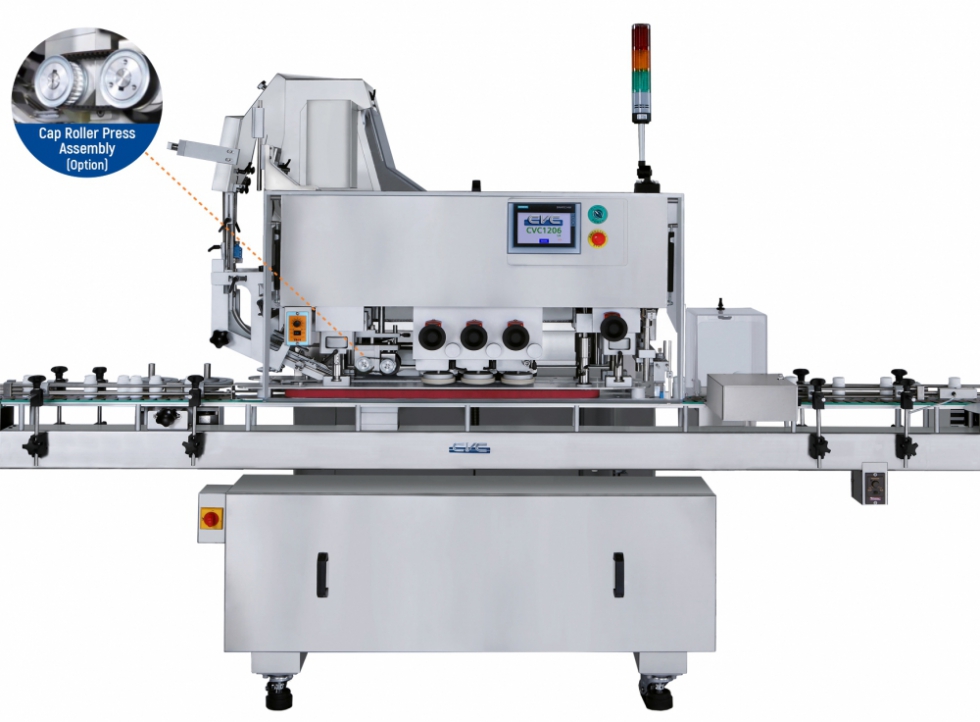

The CVC 1206 Capper is a very flexible machine designed to apply and tighten screw-on caps onto containers at rates of up to 140 bottles per minute. The CVC 1206 is Siemens PLC controlled. The system is designed with three pairs of capping spindles. Options include tower lamp, hopper level control, cap inspection (level cap, foil seal, and no cap), reject, and reject verification.
- Built to cGMP standards
- Stainless steel construction
- Quick and easy change over
Technical Specifications
| Applications | Tablet Filling |
| Productivity | Up to 120-150 BPM (base on 40-100 cc round bottle, subject to trial confirmation) |
| Applicable Size | Cap: Dia.: Ø30-90 mm (11⁄4″ to 31⁄4″) Height: 10-25 mm (3⁄8″ to 1″) Bottle: Dia.: Ø30-110 mm (11⁄4″ to 41⁄4″) with Cap Height: 50-220 mm (2” to 81⁄2″) |
| Hopper Diameter | 210 L (7.4 Cuft) |
| Power source | 220 V, 50/60 HZ, 1 PH |
| Power Consumption | 1,540 VA (7 A) |
| Air Pressure | 6 bar (87psi) |
| Air Consumption | 200 NL/min (7 CFM) |
| Consumption Machine Dimensions | 1,715 x 1,640 x 2,265 mm (5’-8” x 5’-5” x 7’-5”)( L x W x H ) |
| Machine Weight | 764 kg (1,684 lbs) |
| Noise Level | ≦60dB |

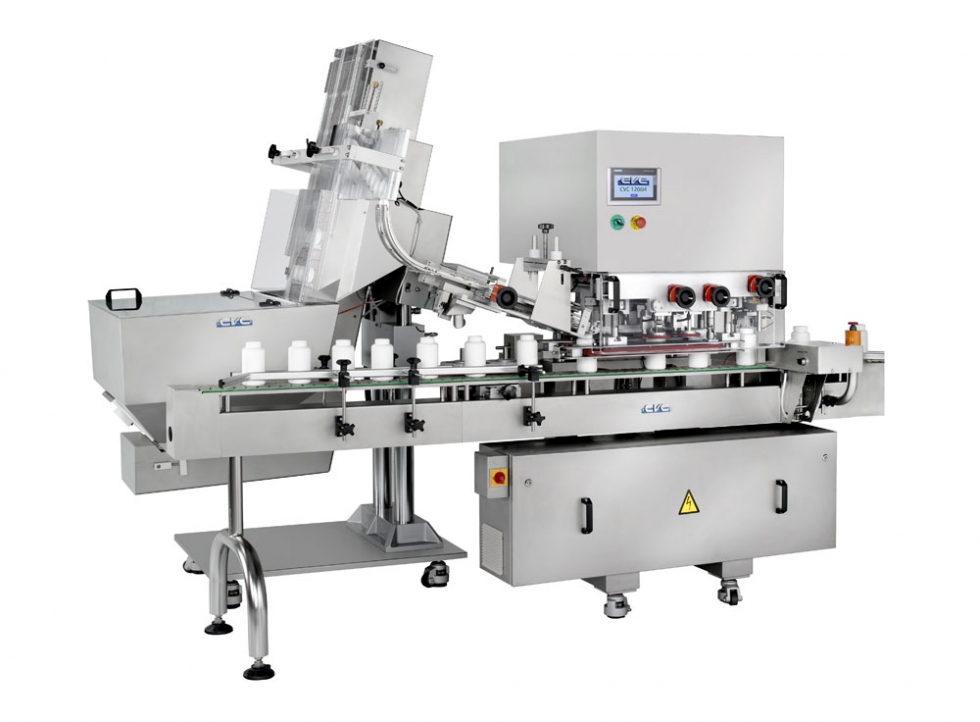

The CVC 1206H Capper is a very flexible machine designed to apply and tighten screw-on caps onto containers at rates of up to 150 bottles per minute.
The CVC 1206 is Siemens PLC controlled. The system is designed with two pair of belts tightening belt assemblies. Options include tower lamp, hopper level control, cap inspection (level cap, foil seal, and no cap), reject, and reject verification.
- Built to cGMP standards
- Stainless steel construction
- Quick and easy change over
| Applications | Tablet Filling |
| Type | U4 |
| Productivity | Up to 180-200 BPM (base on 40-100 cc round bottle,subject to trial confirmation) |
| Applicable Size | Cap: Dia.: Ø30-80 mm (1 1/4″ to 3″) ; Height: 10-25 mm(3/8″ to 1″) Bottle: Dia.: Ø30-110 mm (1 1/4″ to 4 1/4″) with Cap Height: 50-220 mm (2” to 8 1/2″) |
| Hopper Capacity | 220 L (7.8 Cuft) |
| Power source | 220 V, 50/60 HZ, 1 PH |
| Power Consumption | CVC 1206H: 1,320 VA (6 A) CVC 1200W: 220 VA (1 A) |
| Air Pressure | 6 bar (87psi) |
| Air Consumption | CVC 1206H: 84 NL/min (2.9 CFM) CVC 1200W: 168 NL/min (5.8 CFM) |
| Machine Dimensions ( L x W x H ) | CVC 1206H: 1,460 x 1,065 x 2,420 mm (4’-10” x 3’-6” x 7’-11”) CVC 1200W: 1,385x 1,225x 2,290 mm (4’-7”x 4’x 7’-6”) |
| Machine Weight | CVC 1206H: 385 kg (849 lbs) CVC 1200W: 435 kg (959 lbs) |
| Noise Level | ≤ 60 dB |

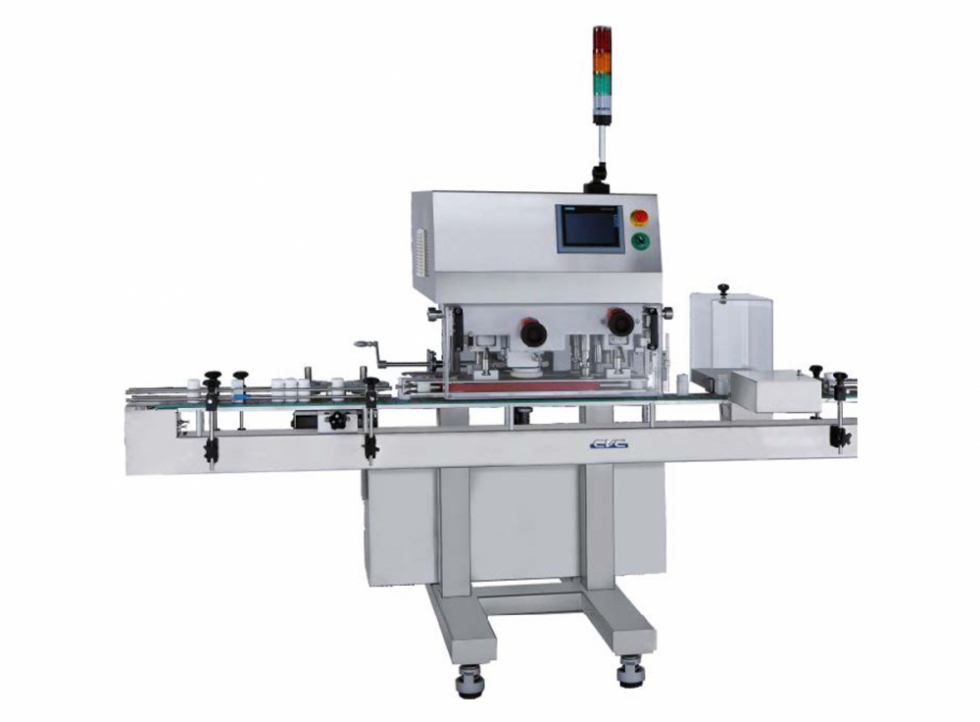

The CVC 1208 In-Line Cap Retorquer is designed to retighten screw-on caps after induction sealing at speeds of up to 120 bottles per minute.
The 1208 is Siemens PLC controlled. Options include tower lamp, servo torque metering, reject, and reject verification.
Technical Specifications
| Applications | Tablet Filling |
| Productivity | Up to 180-200 PPM (subject to trial confirmation) |
| Applicable Size | Bottle: Dia: Ø30-110 mm (1 3/4″ to 4 1/4”) with Cap Height: 50~200mm (2” to 8 1/2″) |
| Power source | 220 V, 50/60Hz, 1PH |
| Power Consumption | 484 VA (2.2 A) |
| Air Pressure | 6 bar (87 psi) |
| Air Consumption | 28.5 NL/min (1 CFM) |
| Machine Dimensions ( L x W x H ) | 1,115 x 1,075 x 2095-2,265mm (3’-8” x 3’-6“ x 6’-10”to7’-5”) (approx) |
| Machine Weight | 319 kg (5,368 lbs) |
| Noise Level | ≤ 60 dB |

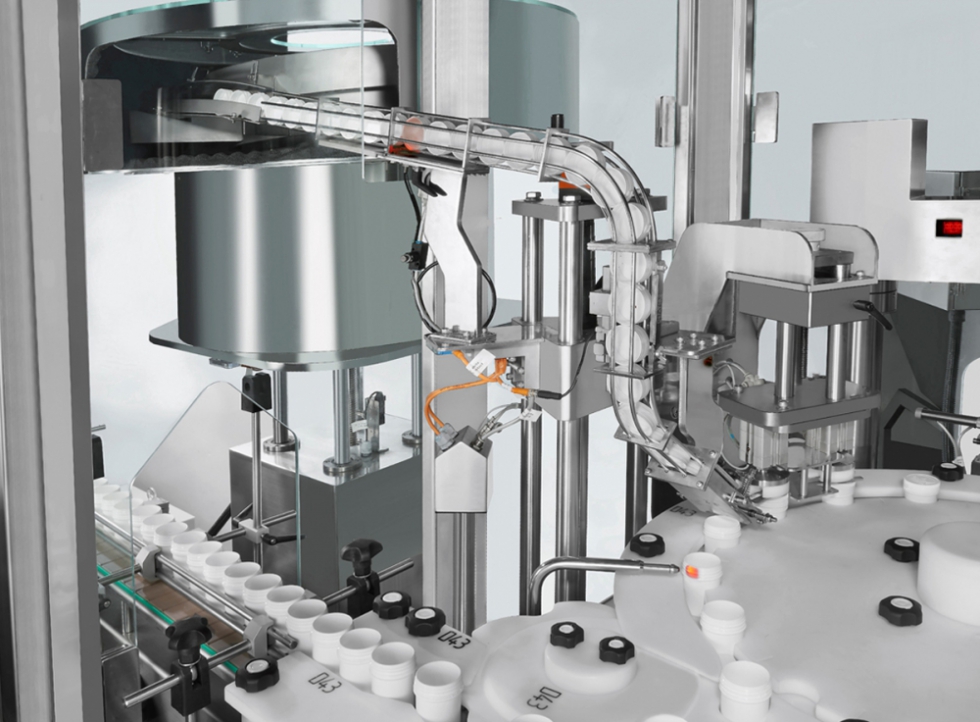

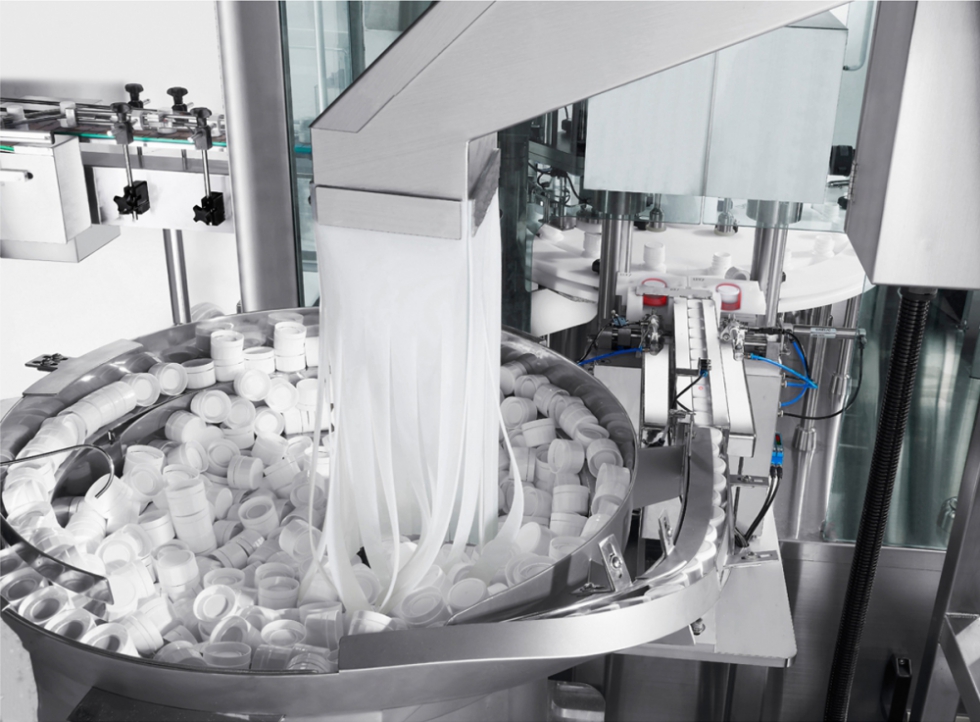

The compact-designed CVC 3034-2 Chuck Capping System provides excellent capping performance with maximum output of 60 BPM (bottles per min.). The machine is great to integrate with a variety of bottle packaging lines.
CVC Servo Chuck Capping System is available for the following types of capping applications:
- Plastic Screw-on caps
- Snap-on caps
- Aluminium ROPP caps
- Push-in stoppers, and plugs
- Pumps and triggers
Technical Specifications
| Applications | Tablet Filling |
| Productivity | Up to 60 Bottles per Minute (BPM) based on 100ml |
| (subject to trial confirmation) | round bottle |
| Applicable Bottle | Cap: CRC, CT For press-on caps, please consult with CVC Engineering team Bottle: Plastic bottle, Glass bottle For irregular shaped bottles, please consult with CVC Engineering team. |
| Applicable Size | Bottle Dia.: Ø30 mm – Ø110 mm Bottle Height: 50 mm – 220 mm Cap Dia.: Ø30 mm – Ø60 mm Cap Height: 8 mm – 22 mm |
| Power Supply | 380 V/ 60 HZ/ 3 PH |
| Power Consumption | 9,000 VA (About 25 A) |
| Air Pressure | 6 bar / Minimum 87 psi |
| Air Consumption | 800 NLit/min (28 CFM) |
| Consumption Machine Dimensions |
L.3700 (Including conveyor) x W.2753 (Including vibrator) x H.2200 (mm) (Including tower lamp) L.1515 x W.1465 x H.1900 (mm) (Does not include conveyor) |
| Net Weight | 1150 Kg (Not including vibrator) |

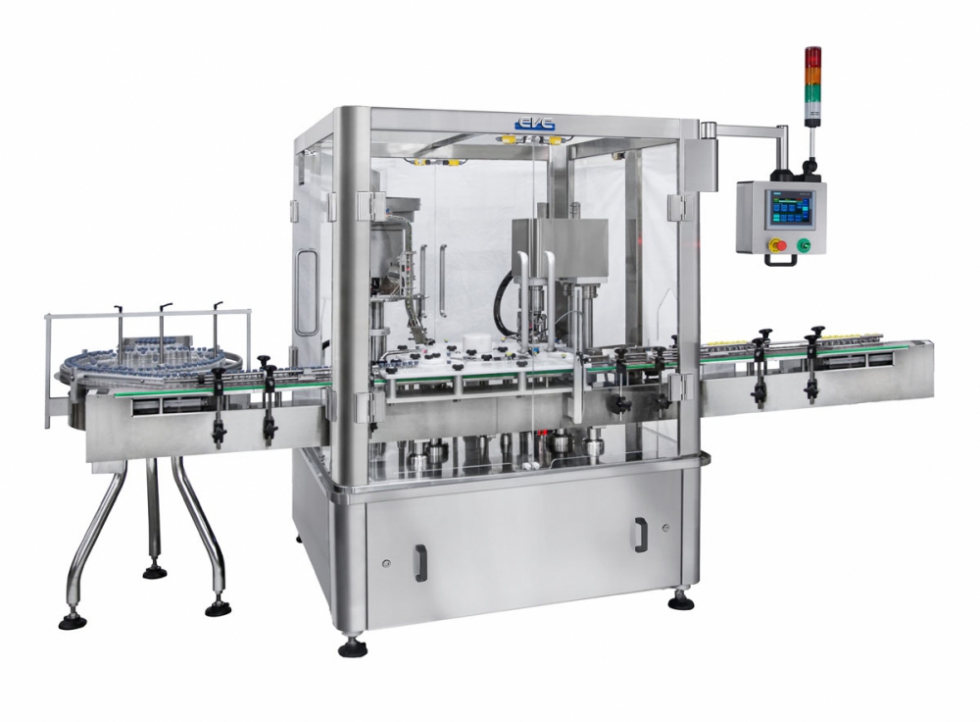

CVC 3034-2V Vial Cripmer equips with two crimping heads. Max. output is up to 60 bottles per min.
CVC Servo Chuck Capping System is available for the following types of capping applications:
- Various aluminium caps
Technical Specifications
| Applications |
Tablet Filling ü Liquid Filling ü Powder Filling |
| Productivity | Up to 60 Bottles per Minute(BPM) based on |
| (subject to trial confirmation) | 10ml round bottle |
| Applicable Bottle | Cap: various aluminium caps (*) * For press-on caps, please consult with CVC Engineering team. Bottle: various vial bottles (**) ** For irregular shaped bottles, please consult with CVC Engineering team. |
| Applicable Size | Vial Dia.: Ø⅞” to Ø3 ½” (Ø23 to Ø90 mm) Vial Height: 1 ¾” to 4″ (45 to 100 mm) Alum. Cap Dia.: ؾ” to Ø2″ (Ø20 to Ø50 mm) Alum. Cap Height: ¼” to 1″ (8 to 25 mm) |
| Power Supply | 220 V, 60 HZ, 3 PH |
| Power Consumption | 3,500 VA (9 Amp) |
| Air Pressure | Minimum 87 psi (6 bar) (ISO 8573-1) |
| Air Consumption | 0.7 CFM (20 NL/min.) |
| Consumption Machine Dimensions | 10′-10″ x 5′-2″ x 7′-3″ (3300 x 1560 x 2200 mm) |
| Net Weight | 1,560 kg (Not including vibrator) |

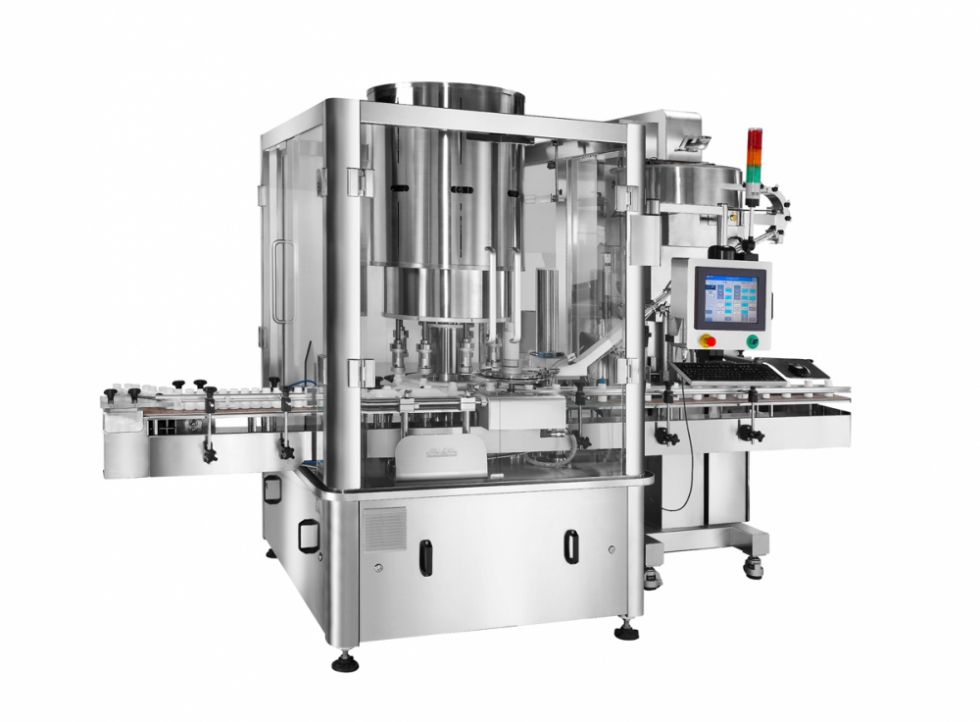

The compact-designed CVC 3074-8 rotary capping system provides the great performance and stability to satisfy the modern bulk production.
CVC Rotary Servo Capping Systems are available for the following types of capping applications:
- Plastic Screw-on caps
- Snap-on caps
- Push-in stoppers, and plugs
Technical Specifications
| Applications |
Tablet Filling Liquid Filling Powder Filling |
| Productivity |
Up to 200 Bottles per Minute (BPM) based on 100ml round bottle (subject to trial confirmation) |
| Applicable Product | Bottles shape: round and square bottles, irregular shaped bottle(*) Cap types: Screw caps, Press-on caps (**) * For irregular shaped bottles, please consult with CVC Engineering team ** For press-on caps, please consult with CVC Engineering team |
| Applicable Size | Bottle Dia.: Ø30~70mm Bottle Height: 65~220mm Cap Dia.: Ø30~60mm Cap Height: 8~22mm |
| Power Supply | 380 V/ 50(60) HZ/ 3 PH |
| Power Consumption | 10,000 VA (16 A) |
| Air Pressure | 6 kgf/cm² (87 psi) |
| Air Consumption | 1,947 L/min (68.8 CFM) |
| Consumption Machine Dimensions | 3,500mm x 1,690mm x 2,252mm (11′-6″ x 5′-7″ x 7′-5″) (L x W x H) (Including conveyor) |
| Machine Weight | 2,223 Kg (4,900 Lbs) |
| Noise Level | 70~75 db |
