BQS E
About the BQS E
A workhorse machine for blister packaging, ACG’s BQS is increasingly first-choice among discerning manufacturers… and for good reasons. It now features the BQS E enclosure option, ensuring a safe packaging environment for solid dosage forms.

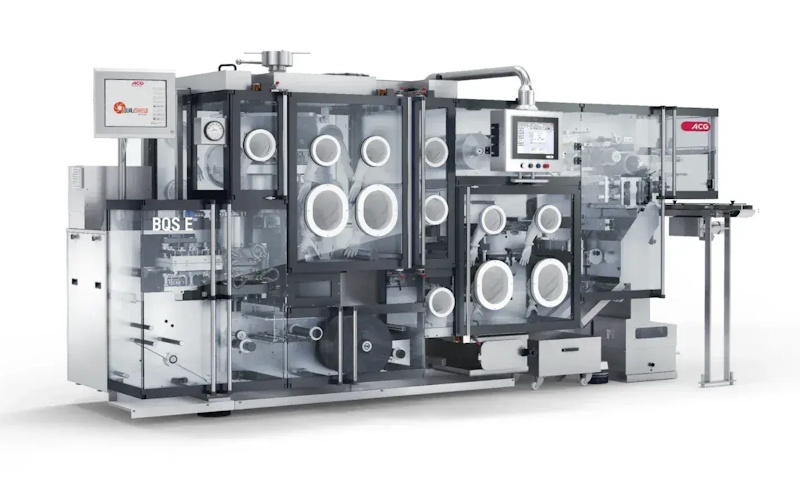

BQS E is a platen-sealing, continuous-motion machine capable of handling wide-ranging thermoform films and cold-form packaging foils. Powered by servo technology, it ensures accuracy, reliability, and precise control during blister packaging operations – and can be integrated with cartoners for seamless transitions from primary to secondary packaging.
Blister packaging of solid dosage products such as tablets, hard capsules and soft gelatin capsules.
Features |
Benefits |
|
|---|---|---|
| Enclosure design from forming to sealing, operating under negative pressure |  |
Removes excessive particles from the working area |
|
Rigid polycarbonate guarding for the entire machine Built-in glove ports |
|
Full enclosure from feeding to sealing Safer operator access |
| Interlocks for all doors | |
Enhanced safety for operators |
| Can handle various thermoform films and cold-form packaging foils | |
Greater versatility |
| Differential pressure gauge for the filter and machine | |
Better in-process control |
| Effortless downstream integration with cartoners | |
Makes a viable solution for blister-cartoning lines |
Technical specification |
|||
| Forming cycle | Thermoforming | Up to 45 cycles/min | |
| Cold-forming | Up to 35 cycles/min | ||
| Forming depth | Thermoforming | Up to 12 mm | |
| Cold-forming | Up to 9 mm | ||
| Maximum forming area | 240 mm x 180 mm | ||
| Forming materials | PVC, PVC/PVdC, Aclar, Triplex (PVC/PE/PVdC), cold-form foil (Alu) | ||
| Lidding materials | Push-through foil, child-resistant foil, peelable foil | ||
