Bottle Unscrambler and Air Rinsers

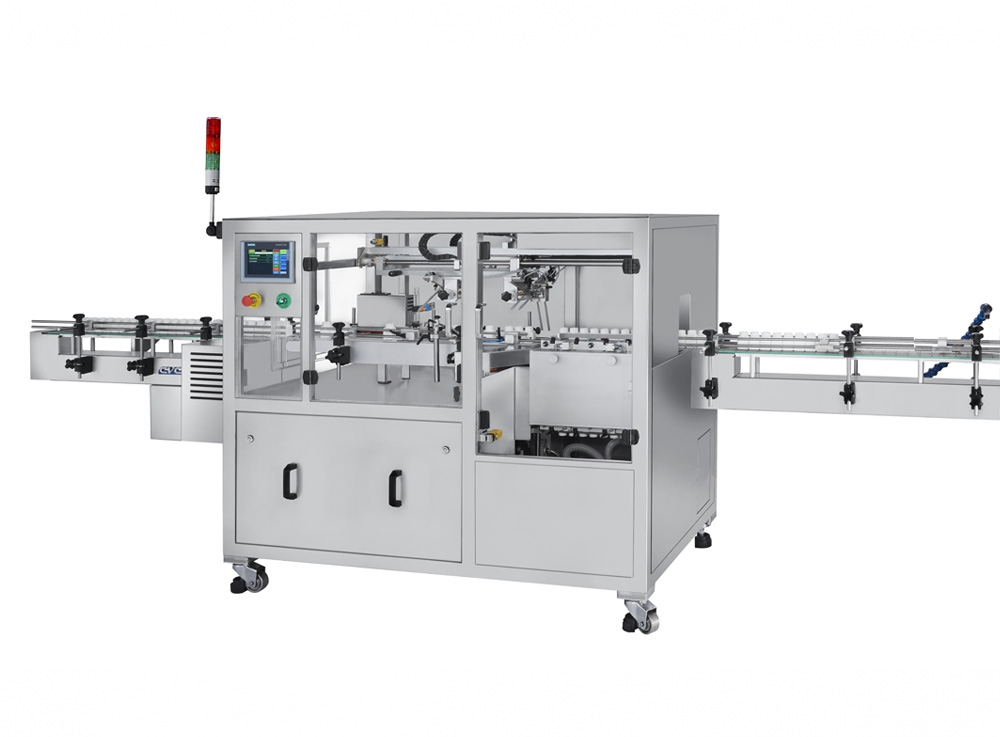

The CVC 1102-400 Bottle Air Rinser is Equipped with powerful clean air jet and vacuum suction which are combined with 180-degree inversion of bottle at speeds of up to 80 bottles per minute. The CVC 1102-400 series Automatic Bottle Air Rinser are the ideal solution for oral products lines to achieve cGMP compliance.
Different bottle sizes are easily change over with customized bottle format change parts.
Technical Specifications
| Applications | Tablet Filling
Liquid Filling Powder Filling |
| Type | U4 |
| Productivity | Up to 80-100 BPM (subject to trial confirmation) |
| Applicable Size | Bottle Dia.: Ø30-80 mm (1 1⁄4″ to 3 1⁄4″) Bottle Height: 50-150 mm (2″ to 6″) |
| Air Filter Efficiency | 0.01μm (99.99 %) |
| Power source | 220 V, 50/60 HZ, 1 PH |
| Power Consumption | 1,230 VA (5.6 A) (with Air Rinse & Vacuum) |
| Air Pressure | 6 bar (87 psi) |
| Air Consumption | 1,250 NL/min (43.7 CFM) |
| Machine Dimensions ( L x W x H ) | 1,605 x 1,050 x 1,435 mm (5′-4″ x 3′-6″ x 4′-9″) |
| Machine Weight | 425 kg (937 lbs) |
| Noise Level | ≤ 78 dB |

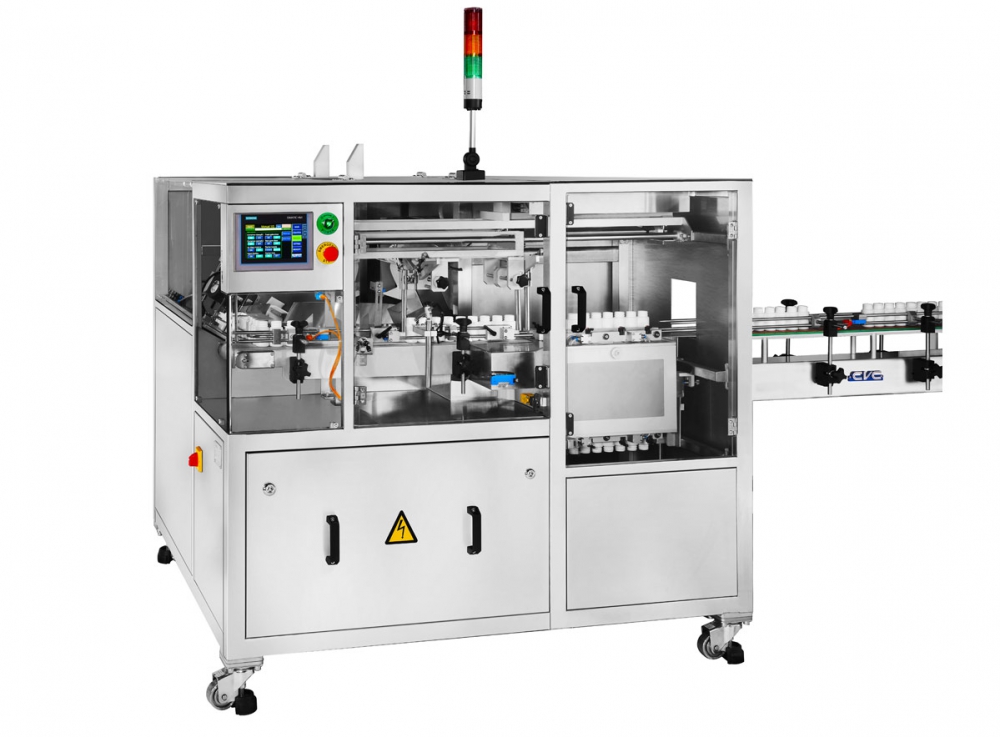

The CVC 1263 Bottle Unscrambler and Air Rinser is designed to automatically feed bottles from a bin and place them upright onto a conveyor, bottles are gripped with gripper and inverted by 180 degrees for air rinse with vacuum at speed of up to 80 bottles per minute. The CVC 1263 is built on a Siemens control system including a user-friendly HMI panel and easy to fit info a variety of bottle packaging lines.
Technical Specifications
| Applications | Tablet Filling
Liquid Filling Powder Filling |
| Type | U4 |
| Productivity | Up to 60-80 BPM (base on 40-100 cc round bottle
(subject to trial confirmation) |
| Applicable Size | Bottle Dia.: Ø30-80 mm (1 1⁄4″ to 3 1⁄4″) Bottle Height: 50-150 mm (2″ to 6″) Min. Container Dia./ Height: 1: 1.5 |
| Hopper Capacity | 155 L (5.5 Cuft) |
| Ionized Air Rinser | N/A |
| Air Filter Efficiency | 0.01 μm (99.99 %) |
| Power source | 220 V, 50/60 HZ, 1 PH |
| Power Consumption | 1,700 VA (7.8 A) (when equipped with Air Rinse & Vacuum) |
| Air Pressure | 6 bar (87 psi) |
| Air Consumption | 1,300 NL/min (46 CFM) (when equipped with Air Rinse Assembly) |
| Machine Dimensions ( L x W x H ) | 1,635 x 1,475 x 1,970 mm (approx) (5′-4″ x 4′-10″ x 6′-6″) |
| Machine Weight | 700 kg (1,543 lbs) |
| Noise Level | ≤ 78 dB |

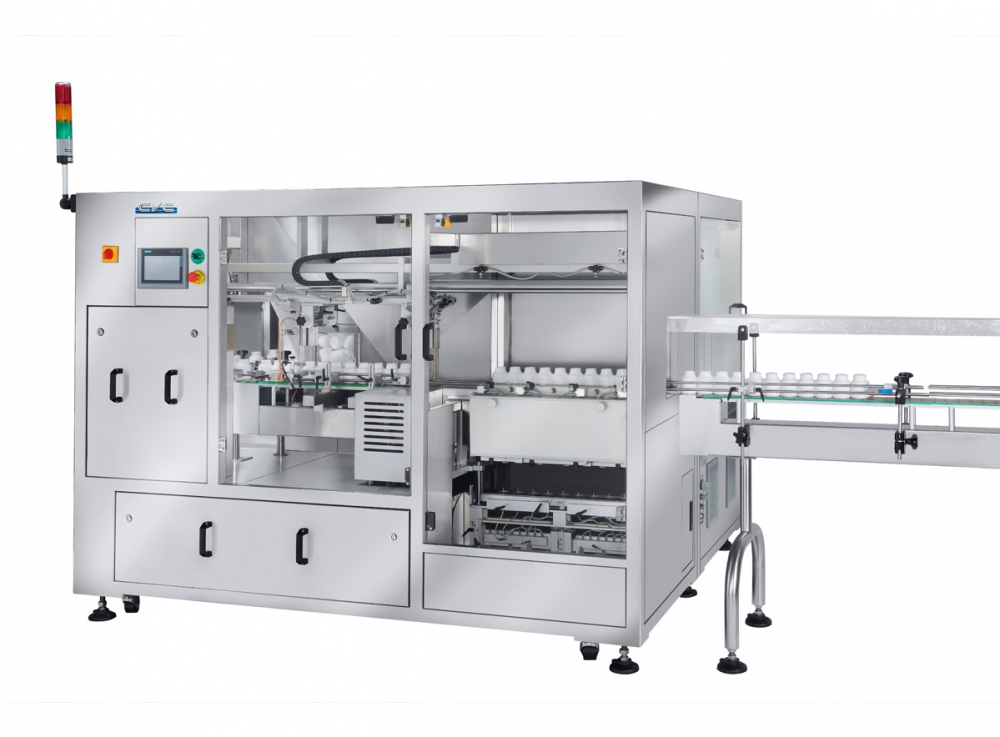

The CVC 1263D Bottle Unscrambler is designed to automatically feed bottles from a bin and place them upright onto a conveyor at speeds of up to 120 bottles per minute. The CVC 1263D is built on a Siemens control system including a HMI panel. Options include ionized air rinse with vacuum, fallen bottle sensor with return to bin, low level hopper sensor, tower lamp, and static eliminator bar. No change parts required.
Technical Specifications
| Applications | Tablet Filling
Liquid Filling Powder Filling |
| Type | U4 |
| Productivity | Up to 100-120 BPM (base on 40-100 cc round bottle,
subject to trial confirmation) |
| Applicable Size | Bottle Dia.: Ø30-120 mm (1 1⁄4″ to 4 1⁄4″) Bottle Height: 50-200 mm (2” to 7 3⁄4″) Min. Container Dia./ Height: 1: 1.5 |
| Hopper Capacity | 180 L (6.4 Cuft) |
| Ionized Air Rinser | N/A |
| Air Filter Efficiency | 0.01 μm (99.99 %) |
| Power source | 220 V, 50/60 HZ, 1 PH |
| Power Consumption | 1,900 VA (8.7 A) (when equipped with Air Rinse & Vacuum) |
| Air Pressure | 6 bar (87 psi) |
| Air Consumption | 1,500 NL/min (53 CFM) (when equipped with Air Rinse Assembly) |
| Machine Dimensions ( L x W x H ) | 2,380 x 1,935 x 2,140 mm (approx) (7′-10″ x 6′-4″ x 7′) |
| Machine Weight | 1,200 kg (2,646 lbs) |
| Noise Level | ≤ 78 dB |

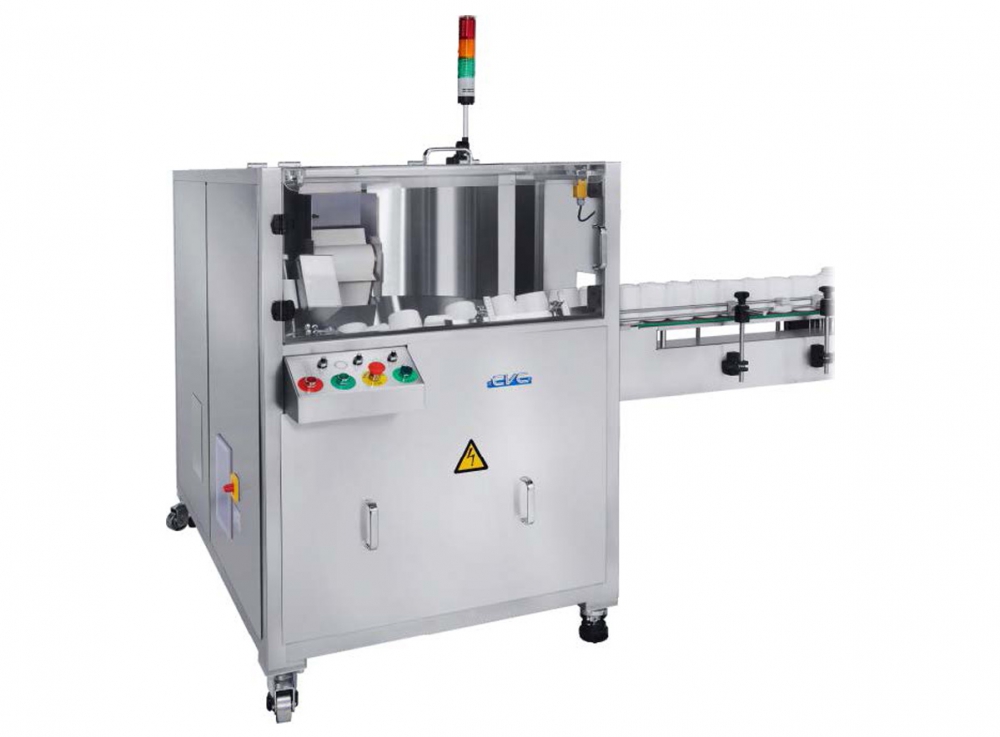

Specially designed to meet the packaging line requirements in pharmaceutical and nutraceutical industries.
Compact design with enclosed built-in hopper and starwheel disc sorter for noise elimination and space saving.
Control panel features simple operation.
Technical Specifications
| Applications | Tablet Filling
Liquid Filling Powder Filling |
| Productivity | Up to 60-80 BPM (base on 40-100 cc round bottle,
subject to trial confirmation) |
| Applicable Size | Bottle Dia.: Ø30-80 mm (1 1⁄4″ to 3 1⁄4″) Bottle Height: 50-150 mm (2″ to 6″) Min. Container Dia./ Height: 1: 1.5 |
| Hopper Capacity | 227 L (8 Cuft) |
| Power source | 220 V, 50/60 HZ, 1 PH |
| Power Consumption | 450 VA (2.1 A) |
| Air Pressure | 6 bar (87 psi) |
| Air Consumption | 60 NL/min (2.1 CFM) |
| Machine Dimensions ( L x W x H ) | 955 x 1,680 x 1,970 mm (approx) (3’-2” x 5’-7” x 6’-6”) |
| Machine Weight | 300 kg (662 lbs) |
| Noise Level | ≤ 78 dB |

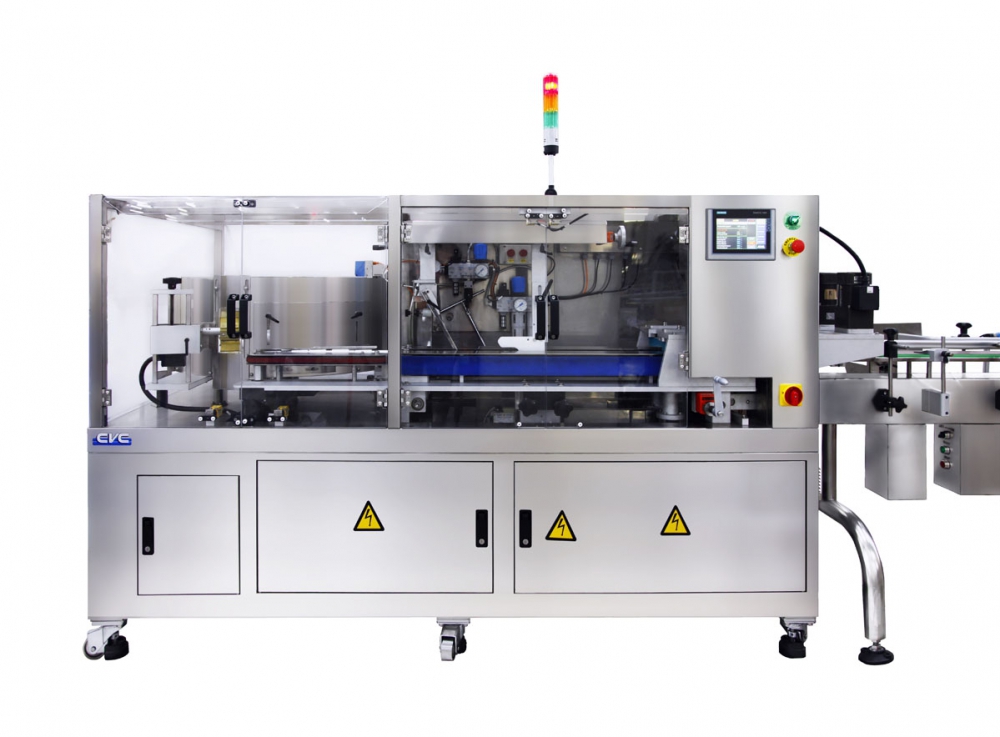

The CVC 1266 Bottle Unscrambler is designed to automatically feed bottles from a bin and place them upright onto a conveyor at speeds of up to 200-280 bottles per minute. The CVC 1266 is built on a Siemens control system including a HMI panel. Options include ionized air rinse with vacuum, fallen bottle sensor with return to bin, low level hopper sensor, tower lamp, and static eliminator bar. No change parts required.
Technical Specifications
| Applications | Tablet Filling
Liquid Filling Powder Filling |
| Type | U4 |
| Productivity | Up to 250-280 BPM (subject to trial confirmation) |
| Applicable Size | Bottle Dia.: Ø30-124 mm (1 1⁄4″ to 4 3⁄4″) I.D. of Mouth: Ø25 mm-Max: body Bottle Height: 45-220 mm (1 3⁄4″ to 8 3⁄4″) Min. Container Dia./ Height: 1: 1.5 |
| Hopper Capacity | 396 L (14 Cuft) |
| Ionized Air Rinser | 2 nozzles (option) |
| Air Filter Efficiency | 0.01 μm (99.99 %) (for optional Ionized air rinsing assembly) |
| Power source | 220 V, 50/60 HZ, 1 PH |
| Power Consumption | 1,900 VA (8.7A) (when equipped with Air Rinse & Vacuum) |
| Air Pressure | 6 bar (87 psi) |
| Air Consumption | 1,300 NL/min (45.5CFM) (when equipped with Air Rinse Assembly) |
| Machine Dimensions ( L x W x H ) | 2,200 x 1,235 x 1,980 mm (7’-3” x 4’-1” x 6’-6”) |
| Machine Weight | 707 kg (1,559 lbs) |
| Noise Level | ≤ 78 dB |
