Bottle 360° Referencing
VERISHIELD BA series enables the seamless tracking of products from production to distribution. It has been designed to efficiently manage and track the movement of individual bottles within larger packaging units by creating a hierarchical relationship between individual bottles and their respective packaging units.

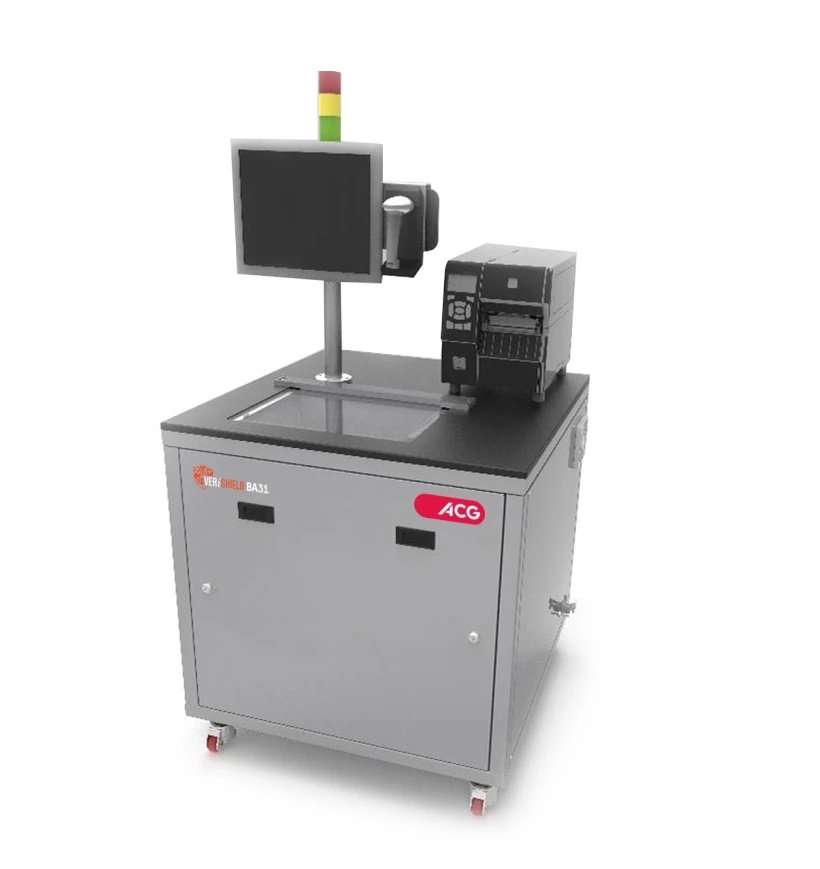

VERISHIELD BA31 is an intermediate packaging aggregation unit with bottom collation functionality for aggregating bottles or cartons equipped with a camera-based aggregation functionality. It performs label printing for aggregated units and verifies printed barcodes using a handheld scanner with an operator-friendly interface. It is also suitable for shrink wrap bundles of plastic or PET bottles with the bottom reference code and shrink wrapped carton bundles.
Functionality
Bottom print
| Features | Benefits | |
|---|---|---|
| Multiple 2D barcode decoding for aggregating bundle/case/shipper box |  |
Easy aggregation process for bundle packaging
Suitable for shrink-wrapped bundles as well |
| Operator-friendly interface | |
Easy to operate and maintain |
| Compact multifunctional modular design with plug-and-play capability | |
cGMP design and easy to integrate with current packaging line systems |
| EU Annex 11 and FDA 21 CFR Part 11 compliant | |
A regulatory-compliant, audit-friendly system |
Technical specifications
| Machine dimensions | Length | 910 mm |
| Width | 913 mm | |
| Height | 1,669 mm | |
| Maximum speed |
8 labels/min (with two operators) |
|
| FOV supported | 400 mm x 300 mm | |
| User/role management |
Centralised VERISHIELD server authentication |
|
The VERISHIELD LS series is designed to uniquely identify and serialise labels, providing a comprehensive solution for product authentication, traceability, and supply chain security.
LS12 is a stand-alone carton serialisation system for inspection, and rejection of labels with defective print.
Functionality
Online print, inspect and reject with winder
| Features | Benefits | |
|---|---|---|
| Stand-alone label printing, inspection and rejection functionality | |
Suitable for low volume production facilities |
| High-speed machine with a compact design | |
Requires minimal time floor space and time |
| Supports track and trace regulations of multiple countries | |
A single machine that fulfils diverse requirements of different regulations |
| EU Annex 11 and FDA 21 CFR Part 11 compliant | |
A regulatory-compliant, audit-friendly system |
Technical specifications
| Maximum throughput |
12 labels/min |
| Rejection system |
Machine stop |
