Aggregation
Embodying a world-class cGMP industrial design, the VERISHIELD CA series makes your carton and bottle aggregation process a whole lot faster and easier.
VERISHIELD CA31 is an intermediate aggregation system equipped with a label printer. It has an automated camera and scanning system with a label printer that performs aggregation, inspection, batch coding, and verification.
Functionality
Intermediate aggregation with label printer
| Features | Benefits | |
|---|---|---|
| Aggregation of unit products (cartons) to cases/shippers/outer cartons by decoding 2D barcodes on one carton or multiple cartons |  |
Aggregation process is in accordance with packaging operation
Compliant with Pack & Scan, Scan & Pack processes |
| Detection of non-GS1 datamatrix, incorrect batch details, excess and less unit product quantity in case and shipper boxes | |
Reliable and accurate identification and verification of child codes and verification of printed barcodes |
| Autofocus for different bottle/carton/shipper sizes through distance invariant imaging technology (DIIT) | |
Makes automatic multilayer adjustments specific to the packaging operation process |
| EU Annex 11 and FDA 21 CFR Part 11 compliant with CE certification | |
A regulatory-compliant, audit-friendly system |
Technical specifications
| Machine dimensions | Length | 1250 mm |
| Width | 1280 mm | |
| Height | 2,093 mm | |
| FOV (Field of view) | 2,093 mm | |
| Shipper dimensions | 400 mm (for all sizes of carton) 450 mm (minimum first layer height 65mm) |
|
| Maximum speed | 8 labels/min | |
Embodying a world-class cGMP industrial design, the VERISHIELD CA series makes your carton and bottle aggregation process a whole lot faster and easier.

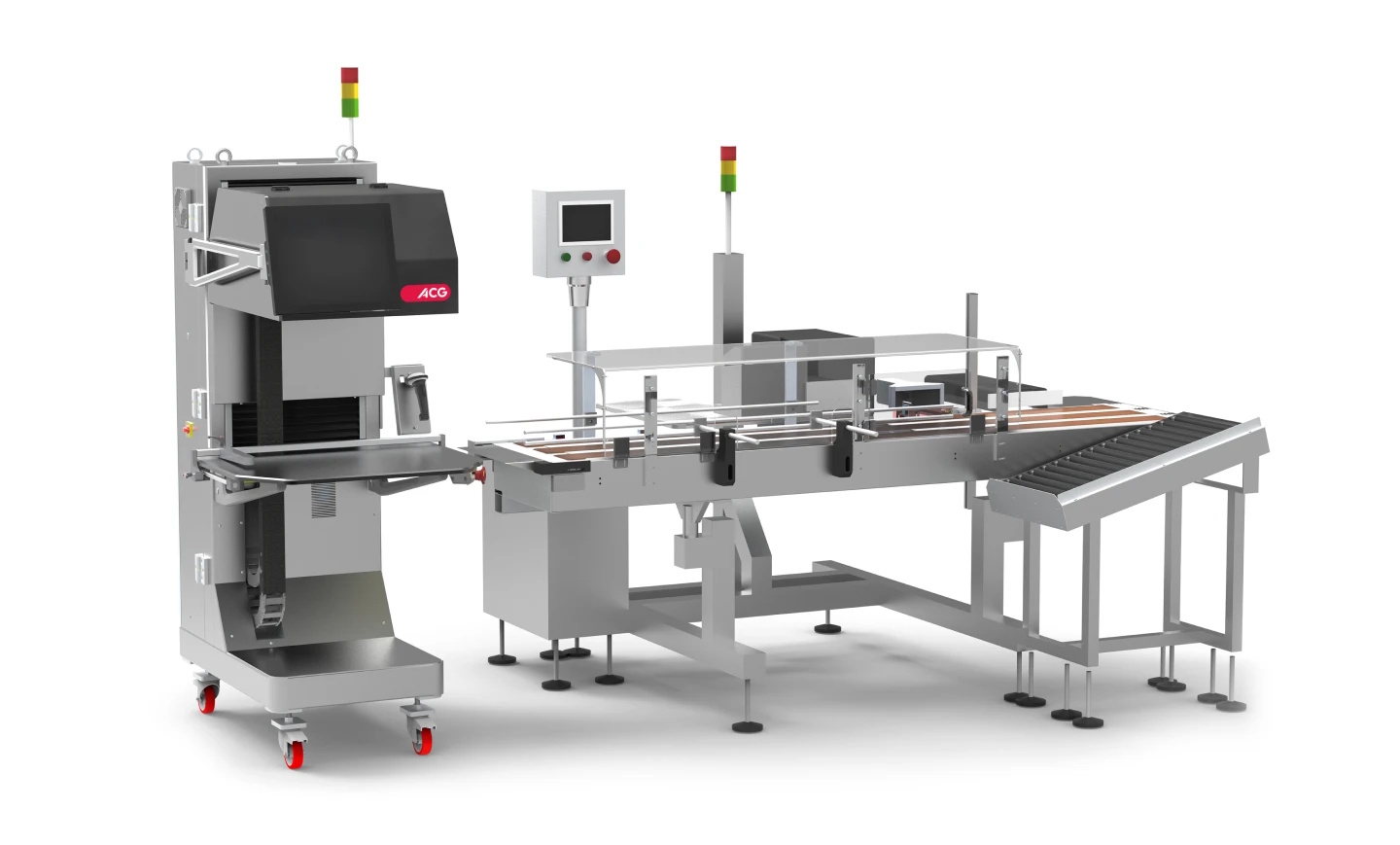

VERISHIELD CA32 is an intermediate aggregation system. Equipped with an automated camera and scanning system along with label printer, VERISHIELD CA32 performs aggregation, inspection, batch coding, and verification. It automatically prints and places stickers on the shipper box and also generates production reports under various classifications like printed, commissioned, or damaged specimens.
Functionality
Intermediate aggregation with print & apply
| Features | Benefits | |
|---|---|---|
| Decodes barcodes (GS1 datamatrix or GS1 128 barcode), data verification in printed barcode | |
Capable of decoding multiple 2D codes |
| Supports track and trace regulations of multiple countries | |
A single machine that fulfils diverse requirements pertaining to different regulations |
| Autofocus for different bottle/carton/shipper sizes through distance invariant imaging technology (DIIT) | |
Makes automatic multilayer adjustments specific to the packaging operation process |
| EU Annex 11 and FDA 21 CFR Part 11 compliant with CE certification | |
A regulatory-compliant, audit-friendly system |
Technical specification
| Machine dimensions | Length | 3,400 mm |
| Width | 1,850 mm | |
| Height | 2,100 mm | |
| Maximum shipper height | 300 mm | |
| Maximum throughput | 4 – 5 labels/min | |
| Rejection mechanism | Online pneumatic rejection | |
Embodying a world-class cGMP industrial design, the VERISHIELD CA series makes your carton and bottle aggregation process a whole lot faster and easier.

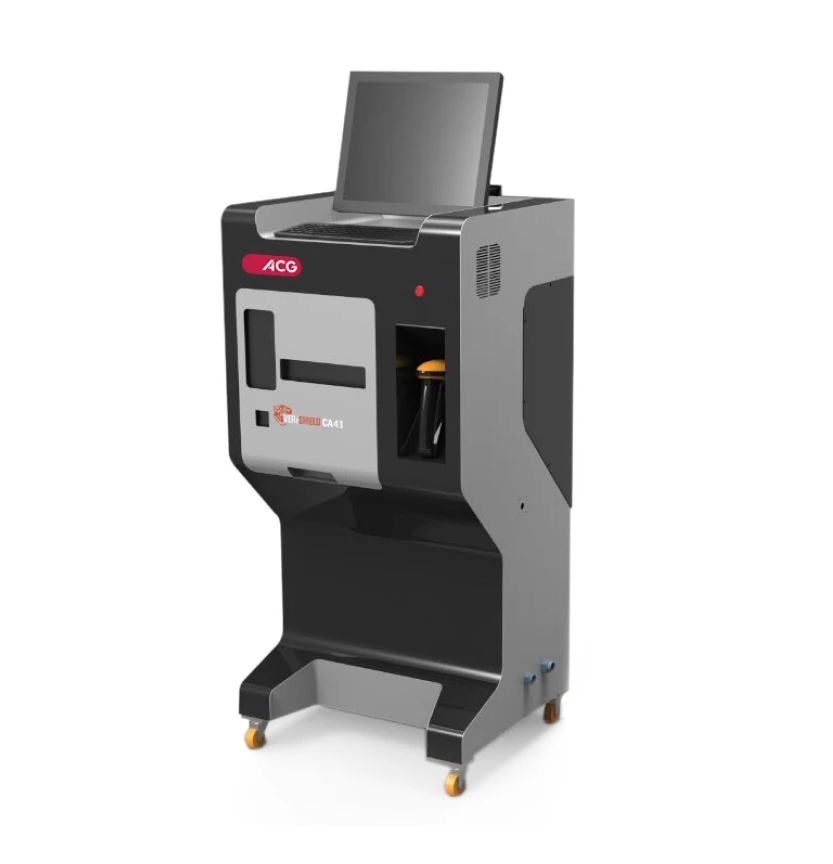

VERISHIELD CA41 is an intermediate aggregation system equipped with a label printer and handheld scanner. It performs aggregation, inspection and batch coding of serialised products. This system also serves aggregation requirements where manual processes might be required.
Functionality
Aggregation with label printer
| Features | Benefits | |
|---|---|---|
| Decodes GS1-128 linear barcode or GS1 datamatrix and verifies as per batch details and serial numbers | |
Reliably and accurately verifies child barcodes and printed parent barcode during the aggregation process
Samples printed labels |
| Multiple language printing for a static data field | |
Label can be printed for respective markets as per local language requirements |
| Compact design with operator-friendly label/ribbon changeover process | |
Operator-friendly machine design |
| EU Annex 11 and FDA 21 CFR Part 11 compliant with CE certification | |
A regulatory-compliant, audit-friendly system |
Technical specifications
| Machine dimensions | Length | 640 mm |
| Width | 580 mm | |
| Height | 1,625±25 mm | |
| Software (functional) specifications |
Back-up and restore of data supported |
|
| User/role management | Centralised VERISHIELD server authentication | |
